8 Battery Upgrade Instructions for 93E (20–60 kVA) P-164000967—Rev 01

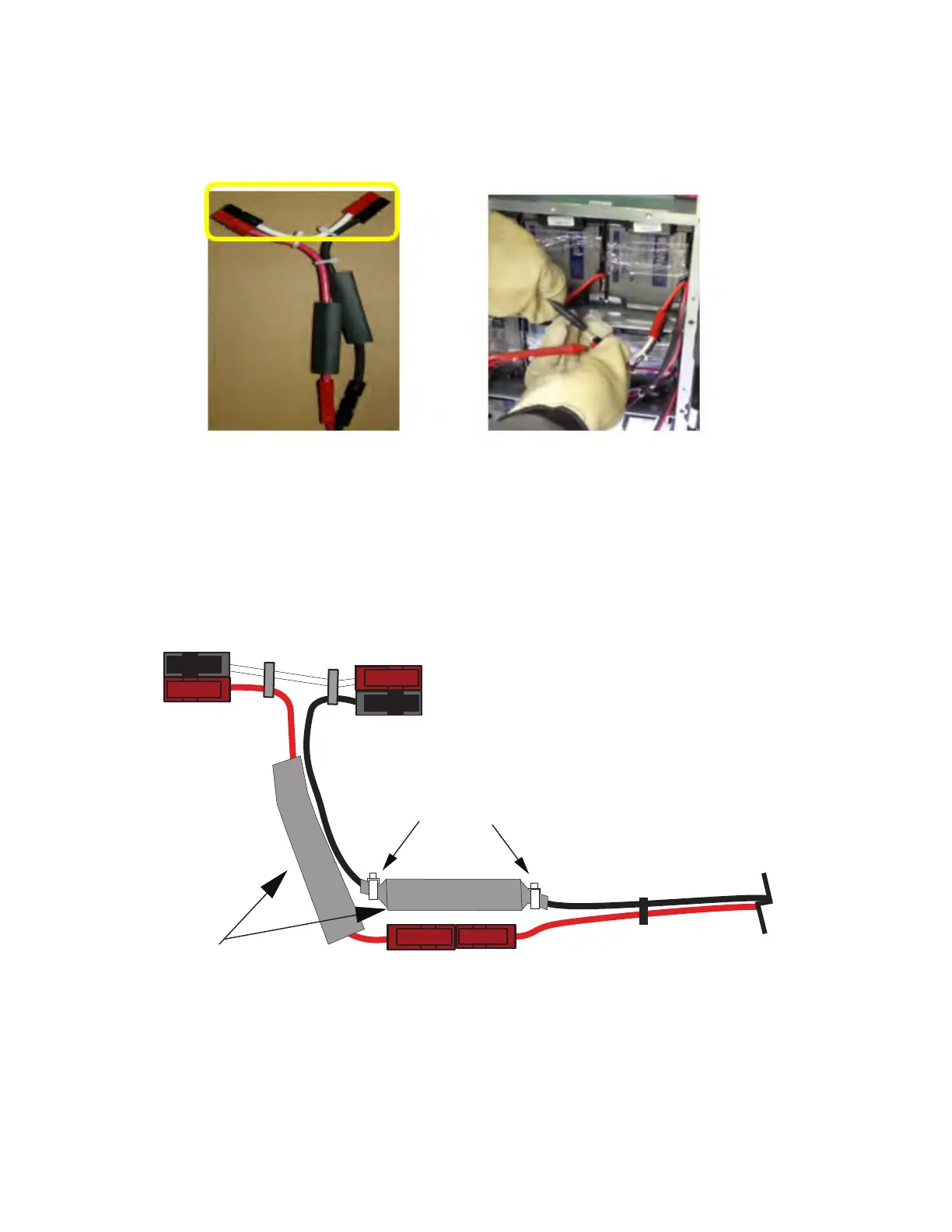

Figure 7. Wiring Harness Adapter — DC Voltage Testing
c. Slowly push the black sleeving over the cabinet harness Anderson connectors until centered
Tie wrap each end of the sleeving
Figure 8. Battery Wiring Adapter Harness — Sleeving Detail
Tie Wraps
Cabinet
Wiring
Harness
Wiring Adapter
Harness
Connector
Sleeving
Battery Upgrade Instructions
