Explosion-protected, light alloy Ex-d (e) control stations and
distributions, Series: GHG 64
1.2.5 Key-operated switch 20 A, 32 A, 40 A, 63 A
Rated Voltage up to max. 690 V
Max. Rated current 20 A, 32 A, 40 A, 63 A
Degree of protection to IEC/EN 60529 IP 65
Terminal 2 x 2,5 mm²
Switch angle 45°, 90°
Max. number of switch elements 6

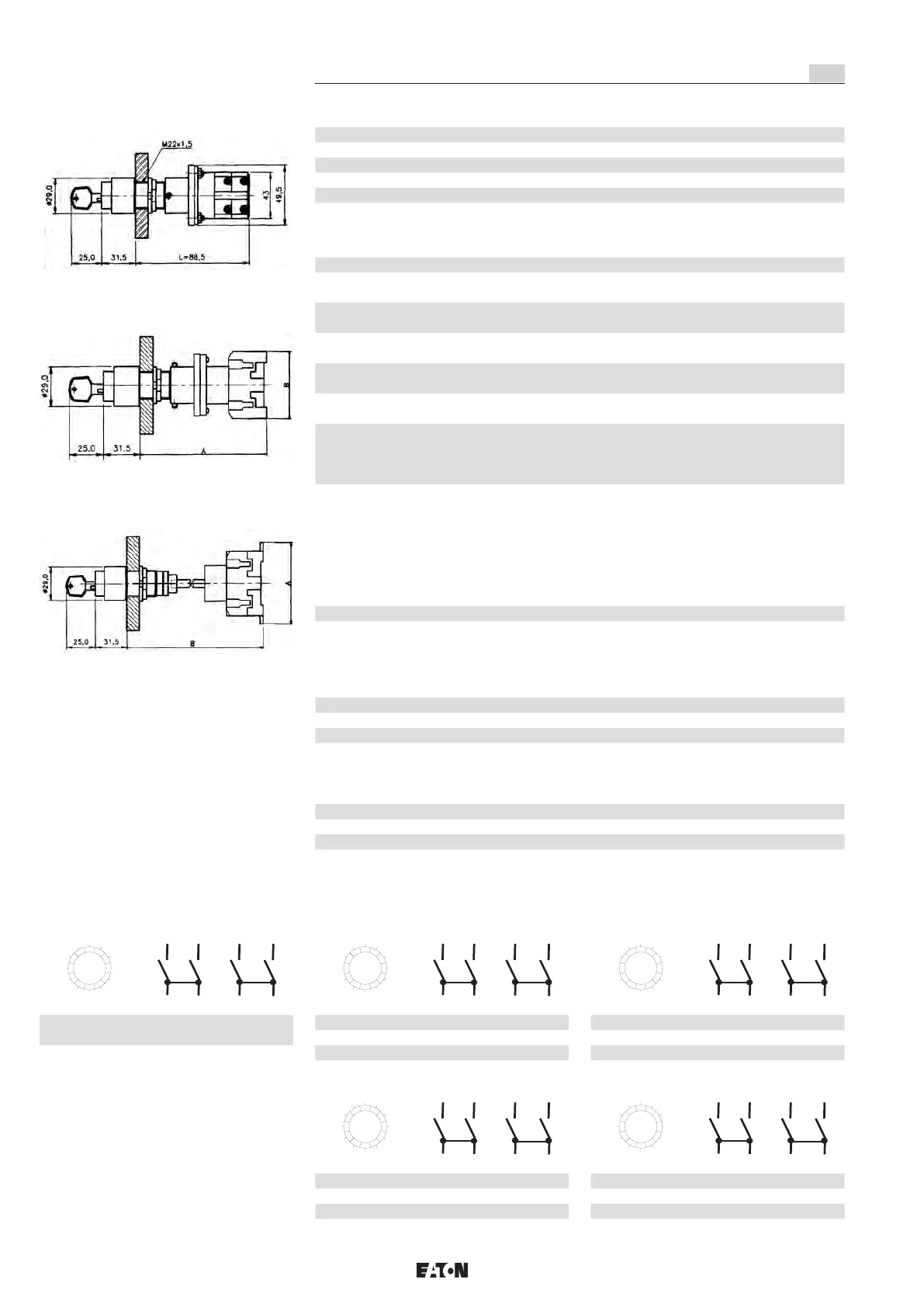

Dimensions Key-operated switch 32 A, 40 A, 63 A
Type 32 A 40 A 63 A
Length A 101.5 109.5 109.5
Length B 54 x 42.5 65 x 50 65 x 50
Dimensions Key-operated switch 20 A
Number of chambers 1 2 3 4 5 6
Length A 79.0 88.5 98.0 107.5 11 7. 0 126.5
Switching capacity IEC 60947-3
Switching capacity AC AC 3 AC15 AC 22 A AC 23 A
Type 20 A at
220 V - 240 V 3.0 KW 5 A 20 A 3.7 KW
380 V - 440 V 5.5 KW 4 A 20 A 7.5 KW
Type 32 A at
220 V - 240 V 4.0 KW 8 A 25 A 5.5 KW
380 V - 440 V 7.5 KW 5 A 25 A 11 KW
Type 40 A at
220 V - 240 V 7.5 KW 14 A 32 A 7.5 KW
380 V - 440 V 11 KW 6 A 32 A 15 KW
Type 63 A at
220 V - 240 V 11 KW 16 A 40 A 11 KW
380 V - 440 V 18.5 KW 7 A 40 A 22 KW
Switching capacity DC 20 A 32 A 40 A 63 A
resistive load
T <= 1mS
24 V 20 A 25 A 40 A 63 A
48 V 12
A 20 A 32 A 40 A
60 V 4.5A 7.5 A 23 A 27 A
110 V 1.0A 1.5 A 6.5 A ------
inductive load
T <= 50 mS
24 V 12
A 20 A 32 A 40 A
48 V 2 A 3 A 16 A 20 A
60 V 1 A 1.5 A 11 A 15 A
110 V 0.4 A 0.5 A 3.2 A 3.5 A
Dimensions Key-operated switch 32 BA, 63 BA
Type 32 A 96 A
Length A 42 x 68 50 x 80
Length B 167 195
Key-operated switch 20 A
Key operated switch 32 B/A up to 63 B/A
Key operated switch 32 A up to 63 A
1.2.5.1 Switch diagram key-operated
switch 20 A, 32 A, 40 A, 63 A
1.2.5.2 Switch diagram key-operated
switch 20 A
1 3 5 7
2 4 6 8
0
1 X X X X
0
1
1 3 5 7
2 4 6 8
0
1 X X
2 X X
0
1 3 5 7
2 4 6 8
0 X
1 X
2 X
1
1 3 5 7
2 4 6 8
0 X X
1
2 X X
0
1 3 5 7
2 4 6 8
0 X X
1
2 X X
1
1 2
2
