DM1/DM1 Pro plenum rated NEMA 1 kit
EATON www.eaton.com

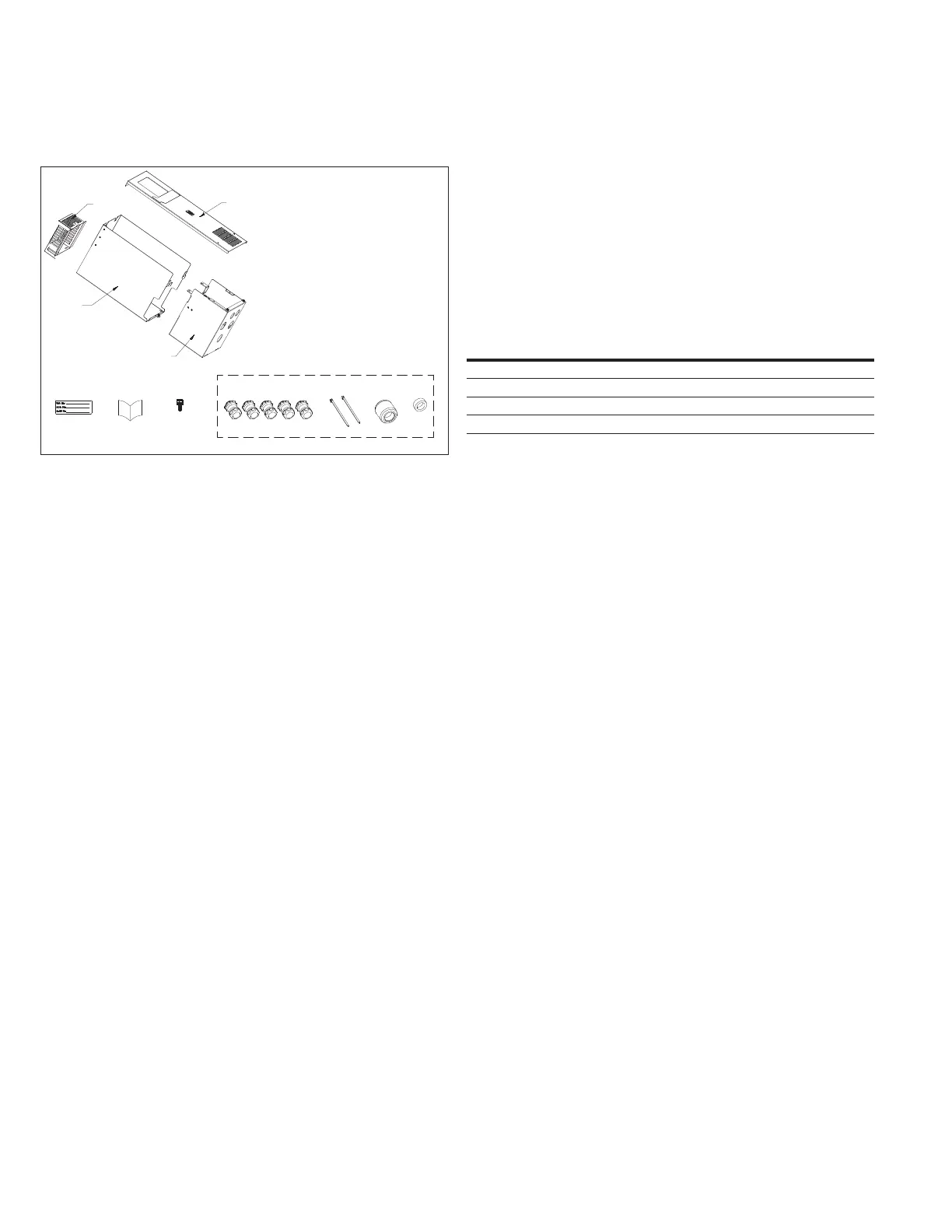

Component list for DM1/DM1 Pro plenum
rated NEMA 1 kit
1. Conduit box
2. Drive housing
3. Fan cover
4. Front cover (with attached brand label & warning label)
5. Part number label
6. Instruction leaflet
7. Screws (refer to Table 1)
Other components needed for NEMA 1 kit installation.
8. Conduit fitting (prepared by customer)
9. Cable tie (2 pieces, shipped with drive for EMI version only)
10. Input magnetic core (shipped with drive for EMI version
only)
11. Output magnetic core (shipped with drive for EMI version
only)
ote: N 1. The plenum rated NEMA 1 kits are only applicable for screw mount-
ing, but not for DIN rail mounting.
ote: N 2. The plenum rated NEMA 1 kits are only applicable for vertical mount-
ing, but not for horizontal mounting or inclined mounting.
Table 1. Screw quantities.
M3 x 8 M3 x 15 M4 x 10 M4 x 20
FR1
9 2
FR2
8 2
FR3
6 2 2
FR4
8 2
7
1
2
3
4
5
IL
6
8 9 10 11
Not included in this NEMA 1 kit
