16
WIRING cont.

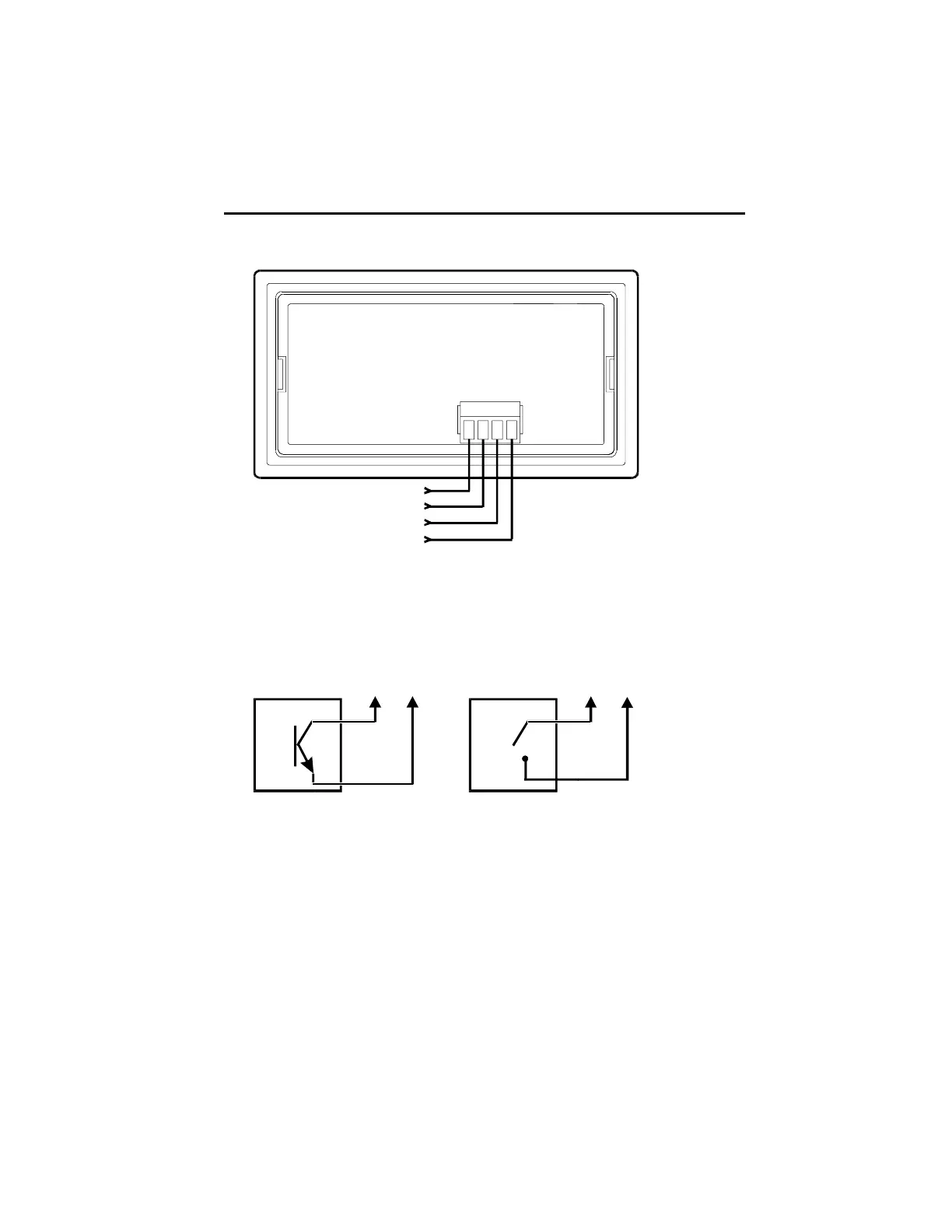

Control Inputs
1
Input 1
Durant
®
234
Input 2
Input 3
Ground
Max. Voltage:
28 VDC
The control inputs are pulled up to +5VDC through a 4.75k W resistor. Control inputs
require current sinking (NPN) sensors, or contact closures to ground.
Typical Wiring
NPN Contact
Closure
Input
1, 2,
or 3
Ground
Input
1, 2,
or 3
Ground
