PROGRAMMING cont.
F8
F7
F2
F1
View
Enter
Hold
and
press
to scroll up
View
Enter
Hold
and
press
to scroll down

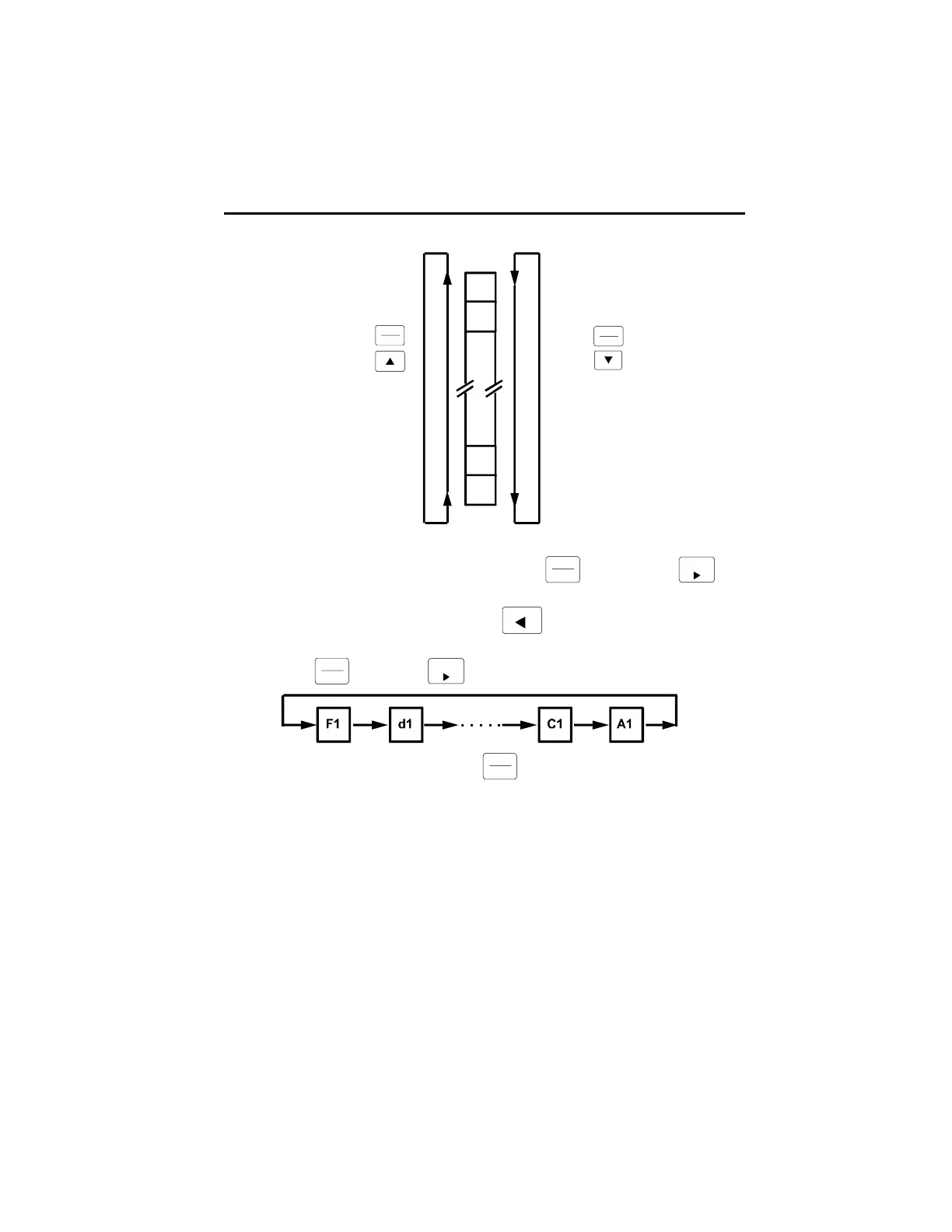

To scroll from column to column, while holding the
View
Enter
key, press the
Edit
key.
The display will land on the bottom (1) block of the next column to the right, as
illustrated below. Note that since there is no
key, scrolling to the left is unde-
fined.
Hold
View
Enter
and press
Ed i t
to scroll columns
Upon arrival at a new block, release the
View
Enter
key to display the parameter value.
Parameter values will always be a number. The range of numbers available will
depend upon the parameter. For instance, the totalizer display mode parameter has
four possible values in block d2: 0, 1, 2, and 3. A value of 1 means that the totalizer
will be divided by 1 to display whole units (gallons, liters, etc.). A value of 2 means
that the totalizer will be divided by 10 to display tens of units. In order to change
totalizer display from total divided by 1 to total divided by 10, change the value in block
d2 from 1 to 2.
