9INSTALLATION AND OPERATION MANUAL 25-17603-C March 2023 www.eaton.com
2. About the EF-CBD130
3.4. Mounting of the Beam Detector
1. Using the supplied bracket, mark the position of the fixing holes.
2. Fit the mounting bracket using appropriate fixings for the surface, ensure
that the bracket is secure and free from movement. Refer to Figure 4
3. Fix the detector base onto the bracket using two M4x12x10 standard screws.
79mm
85mm
158.5mm
158.5mm

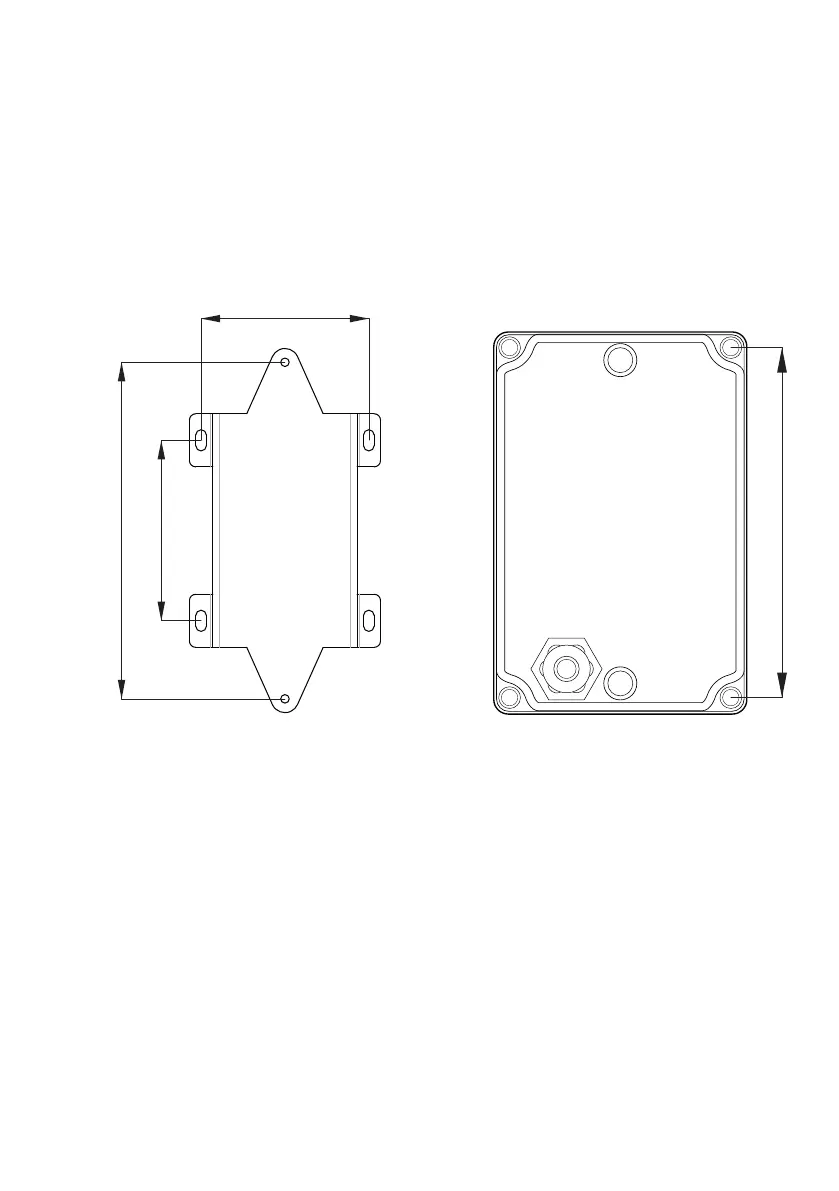

Figure 4. Mounting Bracket Figure 5. Beam Detector
3.5. Mounting of the EF-CBD130-R Reflector
1. For distances between 8m and 40m one reflector is required, for distances
between 40m and 100m four reflectors are required
2. Mark the position of the fixing holes
3. Fit the reflector with suitable fixings. Refer to Figure 6.
