Upper panel (black)
Display
The display is a back-lit LCD that will display information
in four lines of twenty characters and in four different
languages: English, French, Portuguese, and Spanish. See
Figure8.

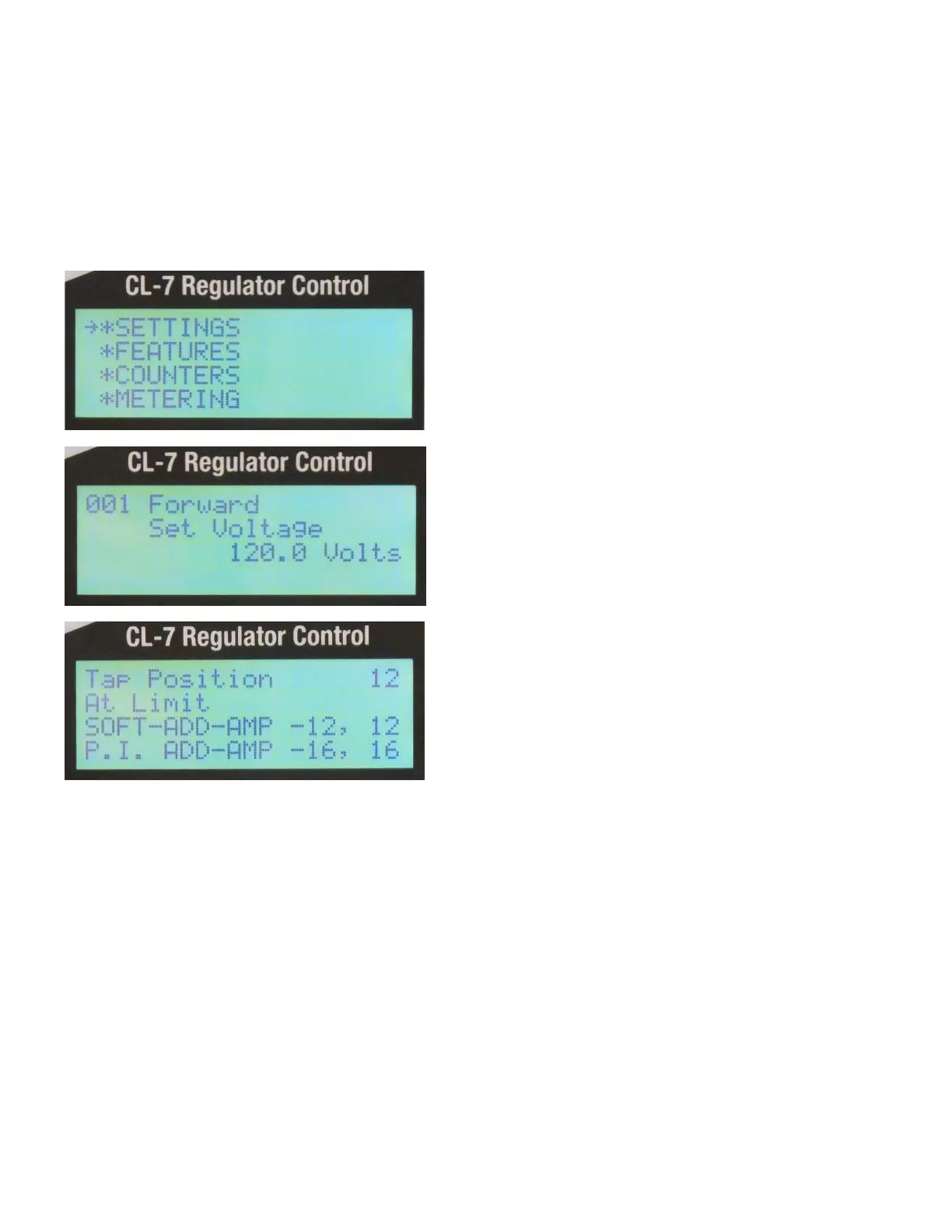

Figure8. Main Menu, Forward Direction, and Metering-
PLUS Tap Position screens
The CL-7 control utilizes a nested menu structure, items are
structured with a main menu and then one, two, three, or
four sub-menus. The final sub-menu in any of the menus
contains the control parameters. The main menu is the
default display; refer to Table8 for the complete nested
menu. When a menu is displayed, the current menu item
is indicated by a cursor arrow () on the display screen.
Parameter values appear on the LCD, right justified, with a
decimal point shown as necessary.
ote:N Only four line items appear on the display at one
time. Moving the cursor down from the fourth line
will shift the line items up one item at a time.
LCD display contrast
The LCD display panel contrast is adjustable. Press and
hold the FUNC key, then press the scroll up arrow key to
increase or the scroll down arrow key to decrease contrast.
10
INSTALLATION, OPERATION, AND MAINTENANCE INSTRUCTIONS MN225003EN April 2018
CL-7 Voltage Regulator Control
