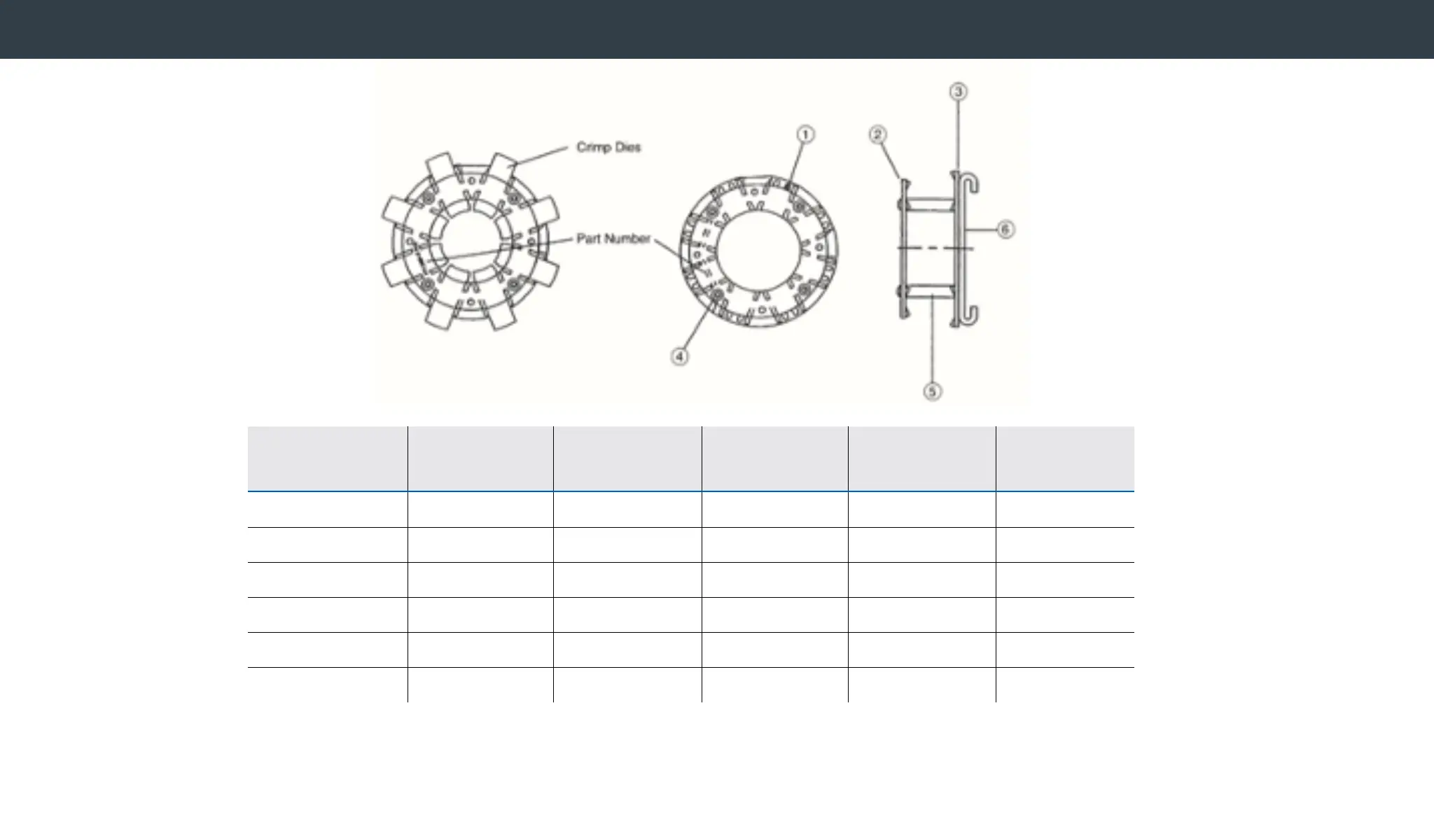

Eaton FT1380e - Die Cage Components; Die Cage Part Breakdown

Detail Number
FT1380-2-9
Bill of Material
FT1380-2-9A
Bill of Material
FT1381-2-9
Bill of Material Description Qty Req’d
1 FT1330-2-9-21 FT1330-2-9-2 FT1330-2-9-21 Die Spring 8 or 16*
2 FT1380-2-9-3 FT1380-2-9-2 FT1381-2-9-3 Front Plate 1
3 FT1330-2-9-13 FT1330-2-9-3 FT1330-2-9-13 Spring Plate 1
4 FT1330-2-9-55 FT1330-2-9-5 FT1381-2-9-55 Cap Screw 4
5 FT1330-2-9-66 FT1330-2-6-6 FT1381-2-9-66 Spacers 4
6 FT1380-2-9-1 FT1380-2-9-1 FT1380-2-9-1 Back Plate 1
*The FT1380-200-NO. (FT1380-2-9) and FT1381-200-NO (FT1391-2-9) require 16 springs and
the FT1380-201-NO. (FT1380-2-9A) requires 8 springs.
Die Cage Components
