Eaton Fuller RTLO-16610B - 18-Speed Valve Location

6
Installation Requirements
Installation
Requirements

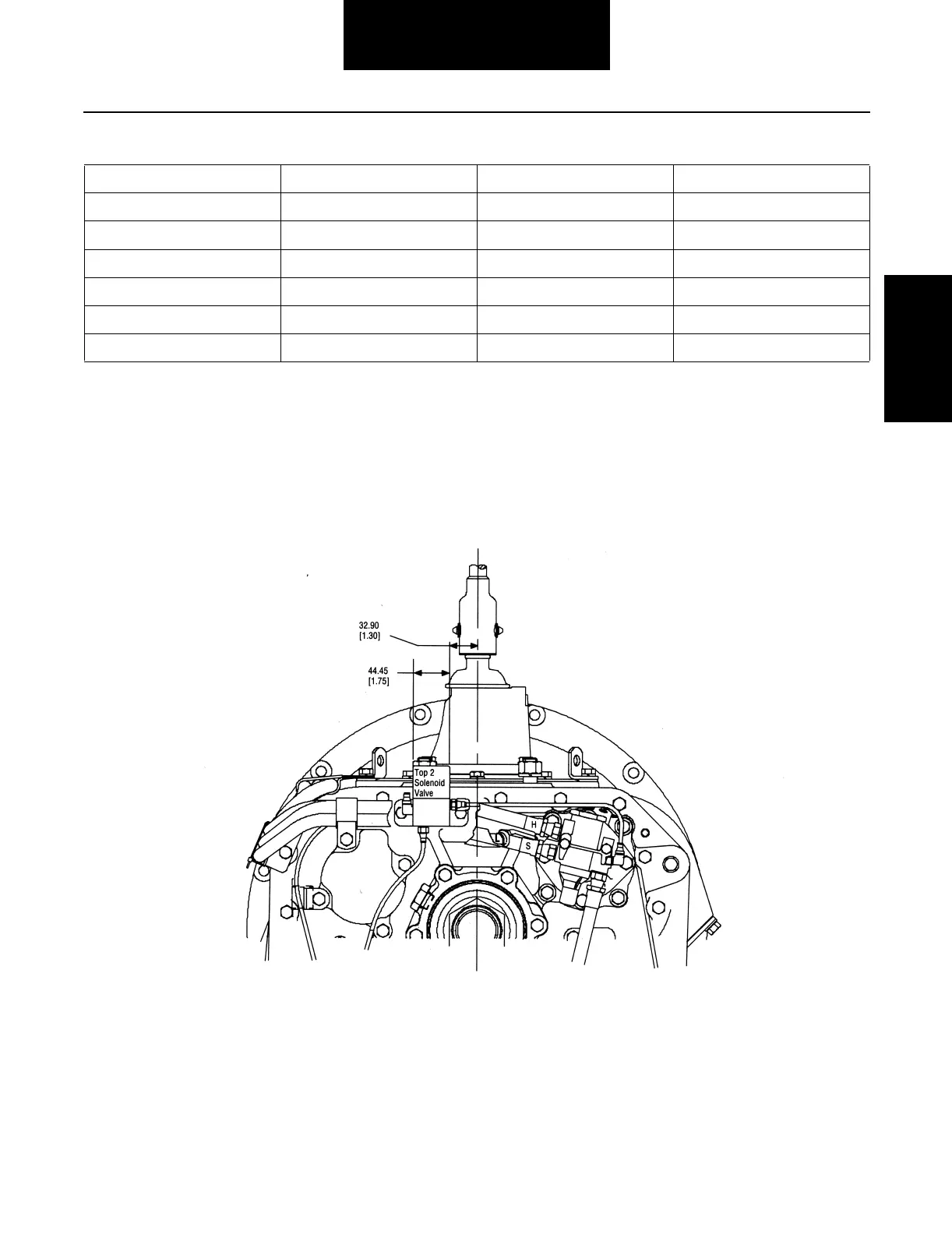

18-speed Valve Location
Note: Refer to “Transmission Mounting Requirements” for Valve Spatial Requirements.
MODEL LENGTH “A” LENGTH “B” LENGTH “C”
12713 815.1 (32.09) 200.4 (7.89) 43.9 (1.73)
14713 823.2 (32.41) 208.5 (8.21) 51.8 (2.04
16713 823.2 (32.41) 208.5 (8.21) 46.5 (1.83)
12913 840.7 (33.09) 226.1 (8.9) 69.6 (2.74)
14913 840.7 (33.09) 226.1 (8.9) 69.6 (2.74)
18913 840.7 (33.09) 226.1 (8.9) 69.6 (2.74)
