Eaton GridAdvisor Series II M Installation And Operation Instructions

20
SPEAR™ Single-Phase Recloser System
INSTALLATION AND OPERATION INSTRUCTIONS MN280048EN June 2016

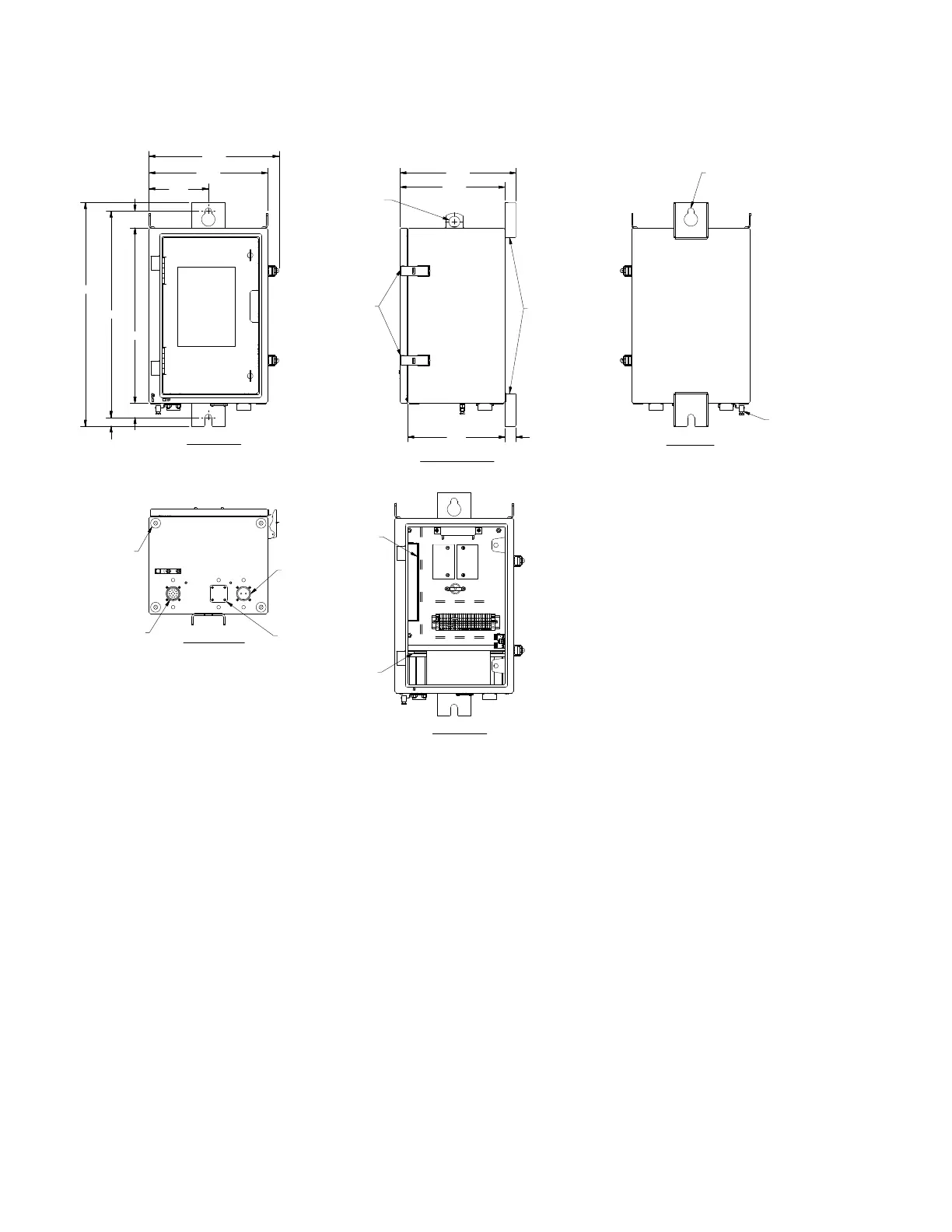

Figure 18.
FRONT VIEW
(DOOR REMOVED)
BOTTOM VIEW
FRONT VIEW
(WITH CONTROL AND DOOR
REMOVED FOR CLARITY)
RIGHT SIDE VIEW
BACK VIEW
MODULE SIDE VIEW
FEMALE
RECEPTACLE
FOR RECLOSER
CONTROL CABLE
INPUT RECEPTACLE
FOR RADIO
ANTENNA
RECEPTACLES
LATCHES WITH
PADLOCK
PROVISIONS
1.13
LIFTING LUG
10.63
MOUNTING
CHANNELS
1.12
9.84
PROVISIONS FOR
UP TO 5/8" MOUNTING
HARDWARE
GROUND LUG FOR
#4 TO #14 SOLID OR
STRANDED WIRE
12.01
VENT OPENINGS
6.00
22.60
1.69
20.87
17.72
1.46
.87
POWER SUPPLY
BATTERY
OPTIONAL RS-232
COMMUNICATION
PORT
CONTACT I/O
MODULE
CONTROL MODULE
13.15
11.75
SHIELD WIRE
CONNECTION
Control weight: 27 kg (60 lbs) with battery
8AH battery weight: 6kg (13 lbs)
(All weights are approximate.)
SPEAR single-phase recloser control weights and dimensions
