SPEAR™ Single-Phase Recloser System
INSTALLATION AND OPERATION INSTRUCTIONS MN280048EN June 2016

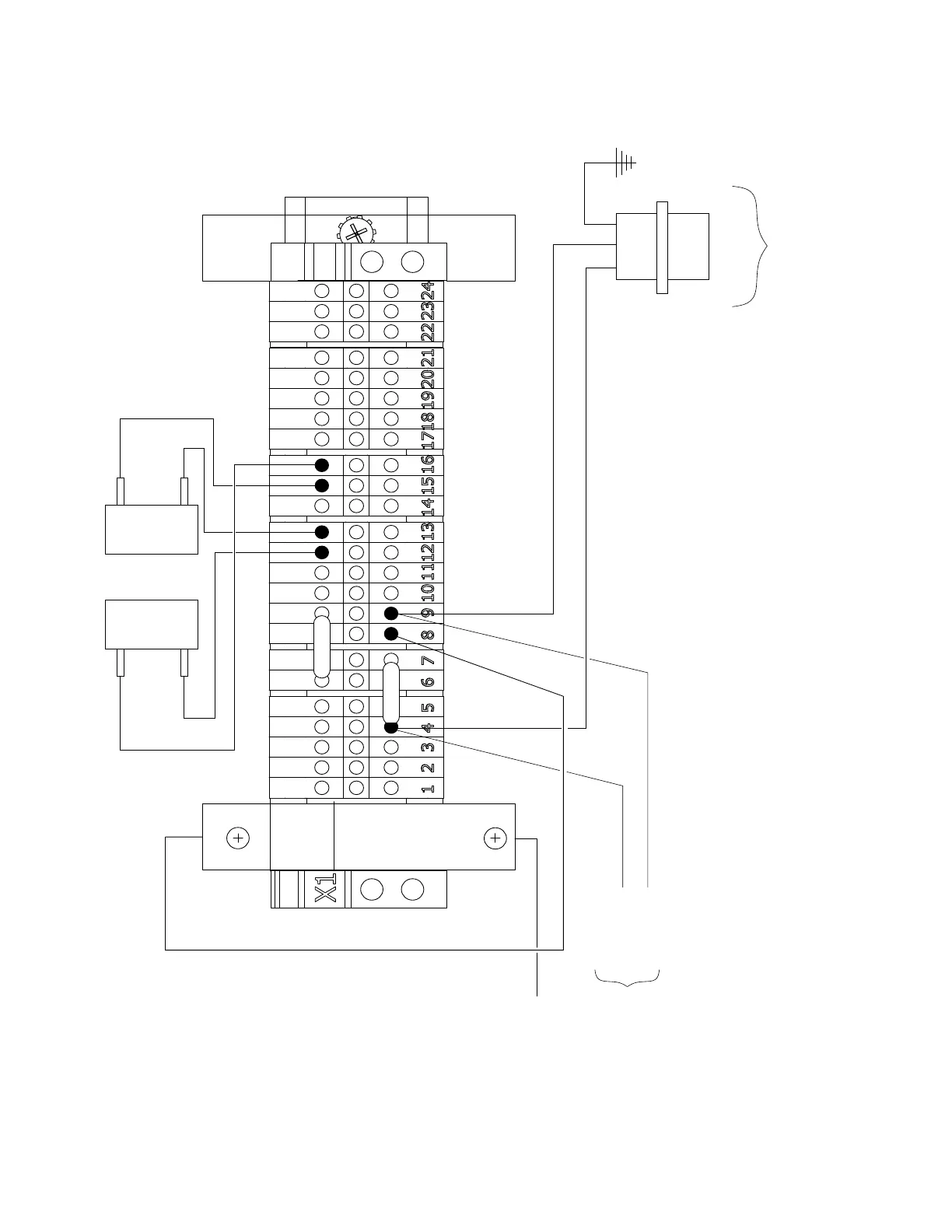

Figure 22.
Heater 2 Heater 1
045
047
048
046
FU1
013
012
012 013
BLK
WHT*
B A
CUSTOMER
WIRING
120/240 VAC
CUSTOMER
CONTROL
POWER INPUT
NEUTRAL*
HOT
TO R1-J
015
015
C
BRAID
120/240 VAC
CUSTOMER CONTROL
POWER INPUT R2
OPTIONAL FACTORY
ACCESSORY WIRING
* Neutral must be connected to Earth ground, external to
the control, in order to ensure accurate voltage reading
120 or 240 VAC 3-wire control power input (shown with default factory wiring connected to single-phase
voltage input supply)
To Next Page
