Eaton GridAdvisor Series II Installation And Operation Instruction Manual

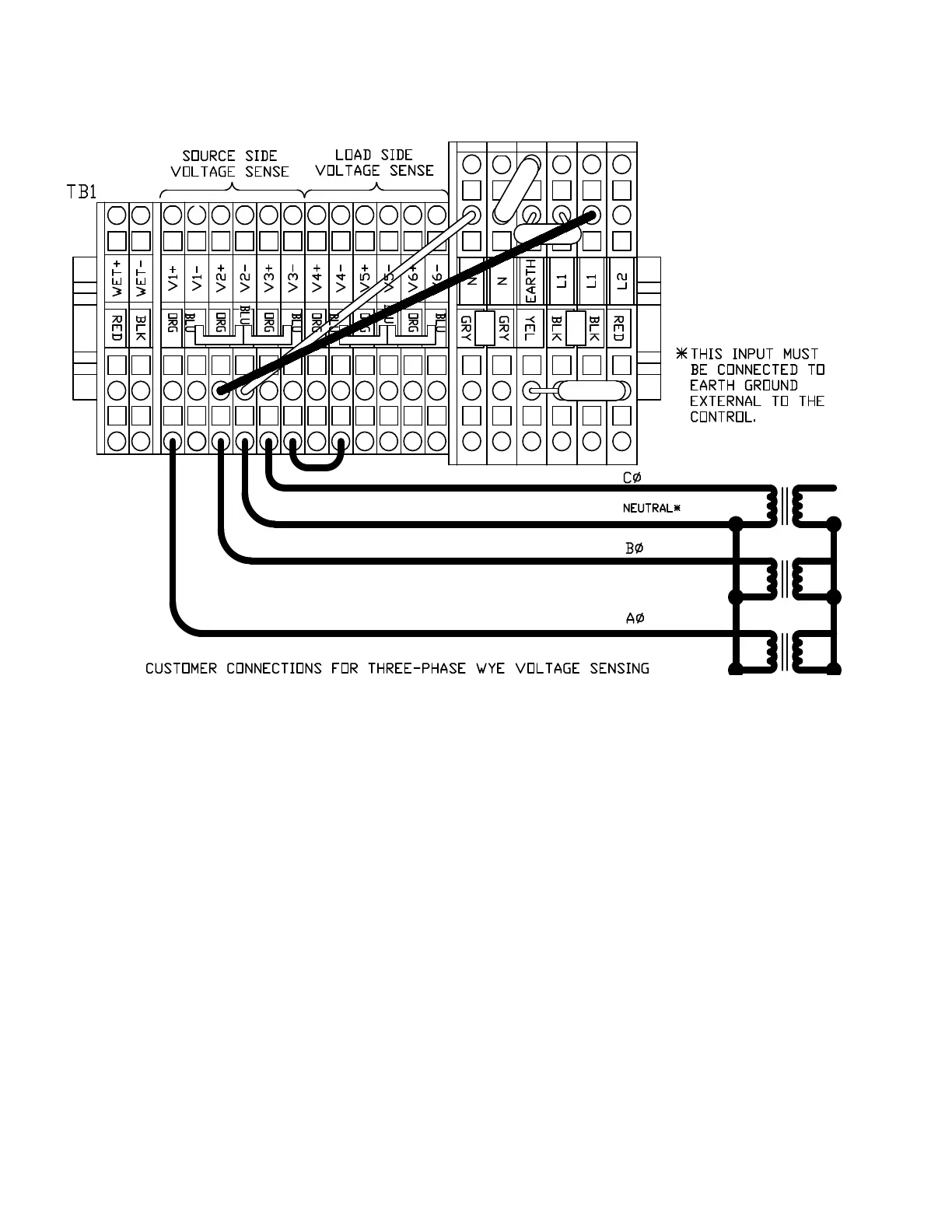

Figure 17. Three-phase Wye voltage sensing (shown with default factory wiring connected to B-phase voltage
metering with B-phase incoming supply)
ote:N Remove the factory jumper wires from L1 to V2+ and N to V2- for separate control
power and voltage sensing inputs.
22 OPERATION INSTRUCTIONS MN280049EN September 2017
Form 4D Microprocessor-based pole-mount recloser control installation and operation instructions
