DANGER
Hazardous voltage. Do not connect potential
transformer low-voltage secondaries to the control
through cables or other wiring until the unit is installed
in the field. Transformer high-voltage primary windings
will become live when 120/240V AC is applied to the
control from an alternate source if the transformer
secondary is connected. Failure to comply may result in
severe personal injury or death.
T371.2
WARNING
Hazardous voltage. Before applying power to the
control, confirm that male pins of the input power
receptacle are electrically insulated to prevent
unintentional contact with 120/240V AC voltage. Failure
to do so may result in severe personal injury or death.

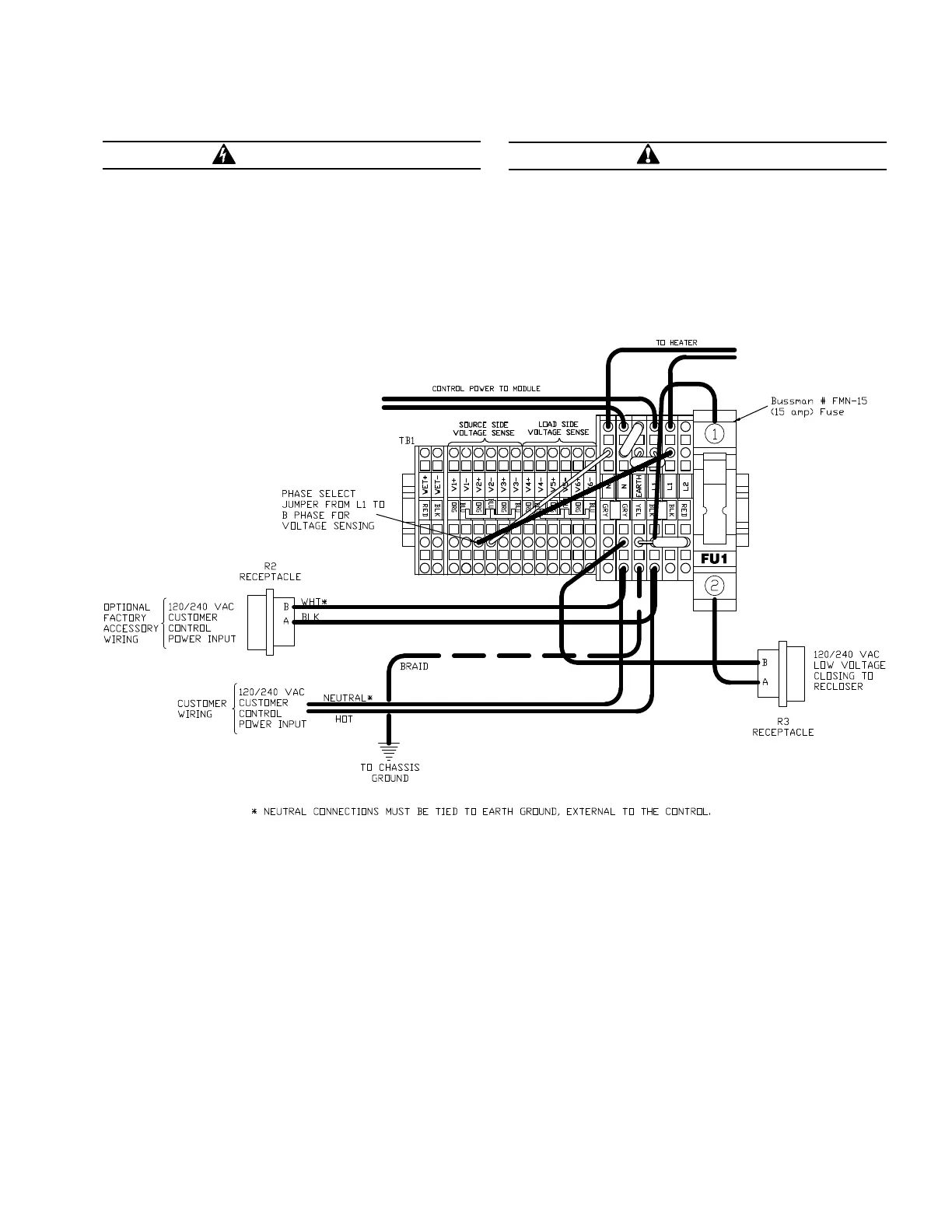

Figure 22. 120 or 240 VAC 2-wire control power input with low voltage closing (shown with default factory wiring
connected to B-phase voltage metering with B-phase incoming supply)
29OPERATION INSTRUCTIONS MN280049EN September 2017
Form 4D Microprocessor-based pole-mount recloser control installation and operation instructions
