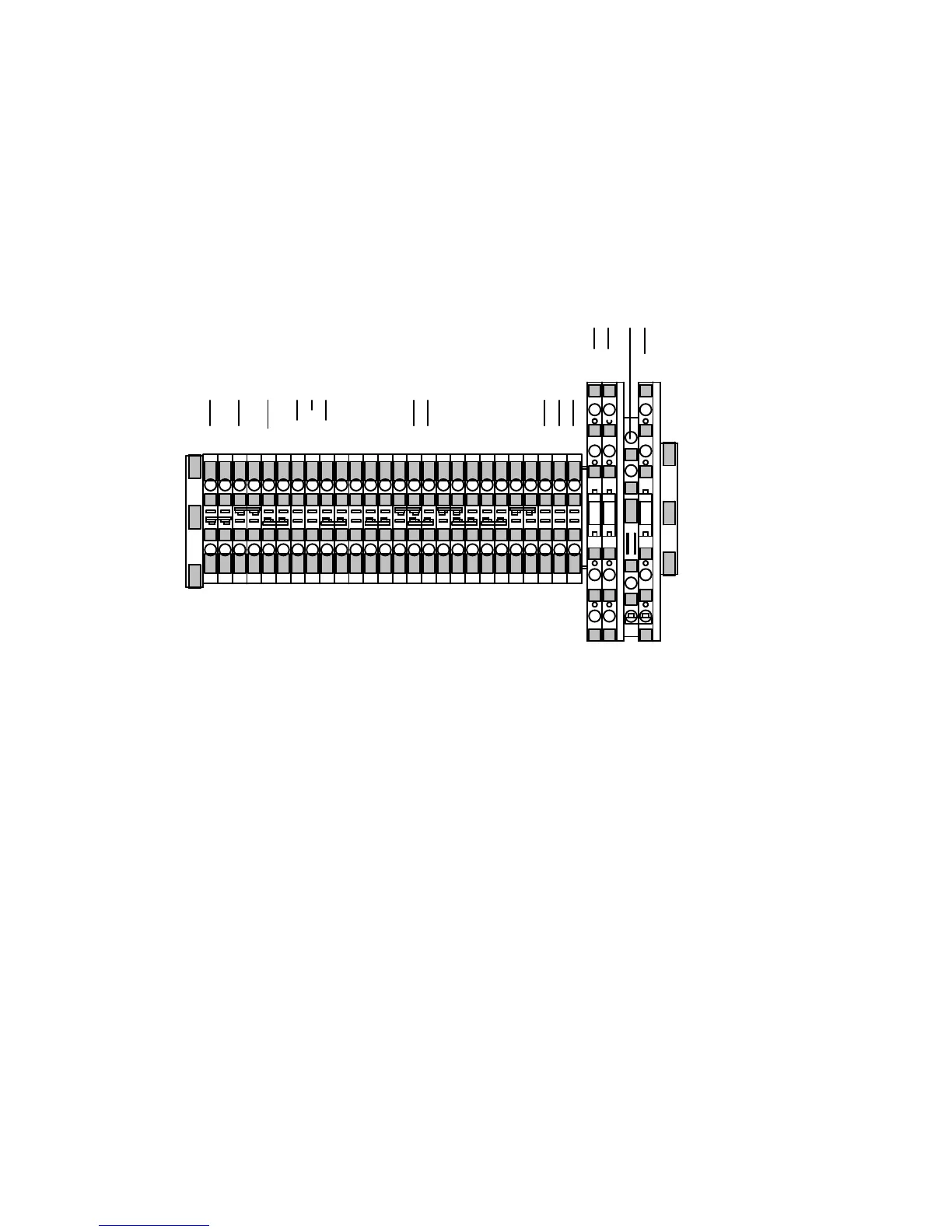

Figure 8. TB1 GE connections.
(G)
(R)
(R)
(L)
(L)
(OC)
(DHR)
(NL)
(NL)
(NL2)
(HS)
(HS)
(#2)
(G)
(G)
(#1)
(V2)
(V5)
(V1)
(V4)
(C2)
(C3)
(20)
(21)
(22)
(G)
(V6)
(V1)
(C)
White - 10 (16 AWG)
Red - 27
Green - 28
Red/White - 29
Blue/White - 31
Black - 32 (16 AWG)
Bottom of 20 or 21 or 22
Black - (20 AWG)
White (20 AWG)
Red/Black - 30
Green/Black - 26
Blue/Black - 10
Orange/Black - 20
Orage - 21
Blue - 22
Eaton's connections shown (in parentheses)
10 CL-7 control replacement assembly installation instructions and service information MN225017EN October 2016
