Section 2: Receiving, handling, and installation
Compartment
Front Door
Secondary Connection
Not Made
Rear of
Compartment
Primary
Connections
Not Made
• Only Ground Connection Made
• Breaker Still Behind Door
• Typical Storage Position
Circuit
Breaker
Side View
Compartment
Front Door
Secondary
Connection Made
Rear of
Compartment
Primary
Connections
Not Made
• Breaker and Trip Unit Testing
• Primary Connection Not Made
• Secondary and Ground Connections Made
Circuit
Breaker
Side View

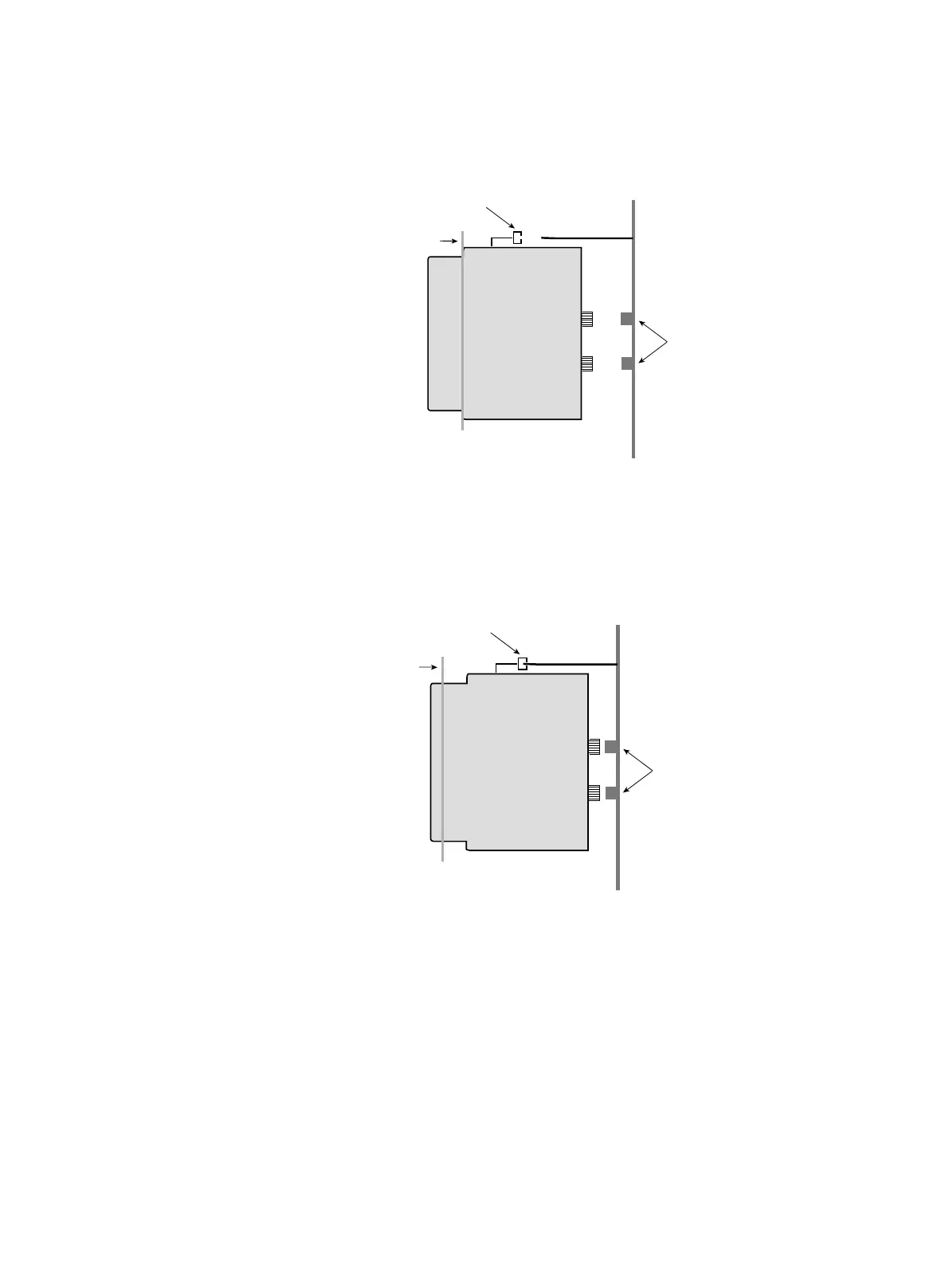

Figure 2-5 DISCONNECT Position
Figure 2-6 TEST position

Eaton IZM32 Specifications

General

Brand	Eaton
Model	IZM32
Category	Circuit breakers
Language	English
