Eaton MEMSHIELD 4 User Manual

Compartmentalise Module EM4PBCK

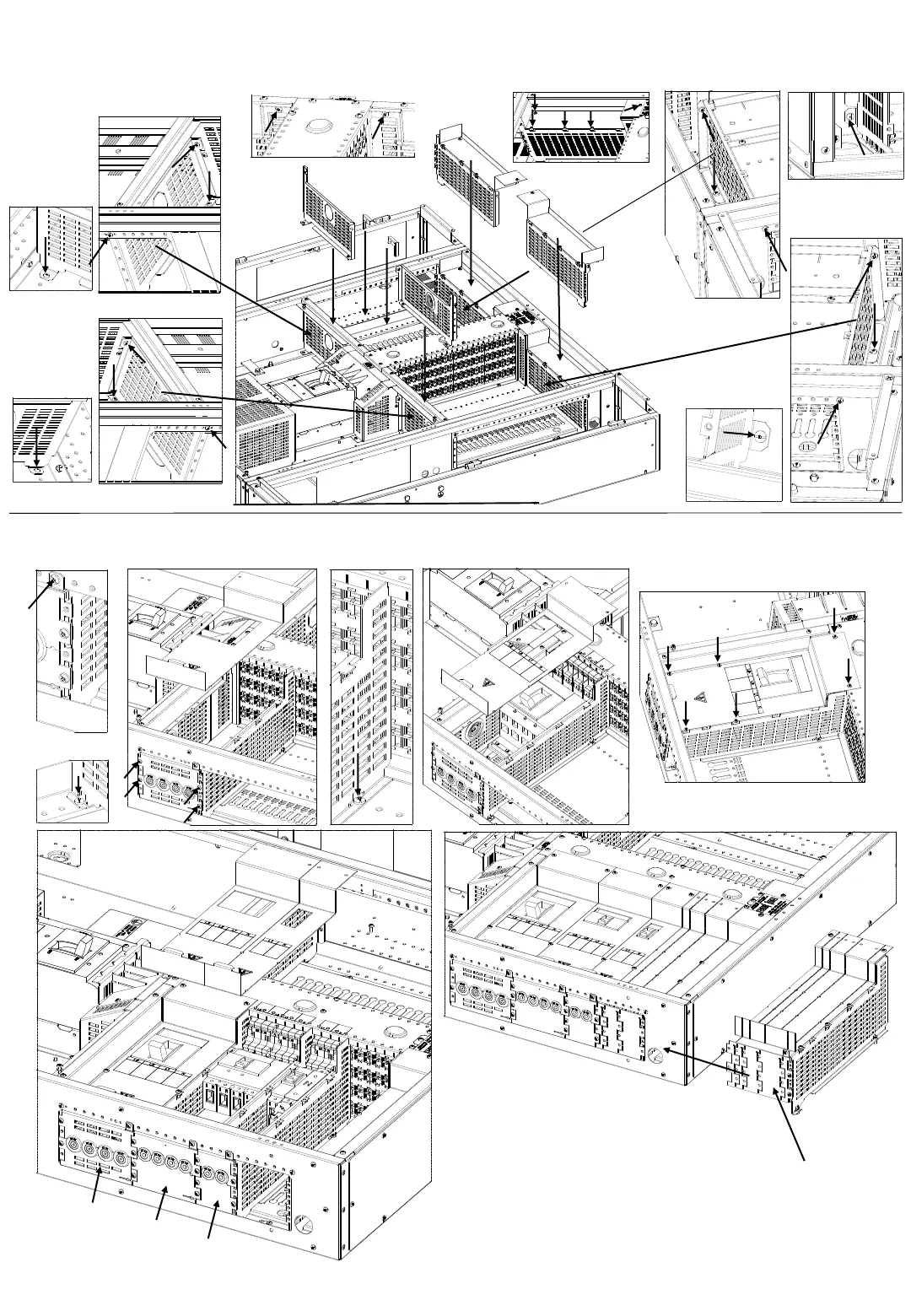

Conversion to Form 4 Type 2/ Form 4 Type 6 Compartmentalised
When converting to Compartmentalised, cableways must be fitted either side of panelboard
Form 4 Type 2 Compartmentalised Module EM4PBCKN122, EM4PBCKN142, EM4PBCKN242
Fit compartment with 7 x M5 fixings (Example EM4PBCKN242)
EM4PBCKN242
EM4PBCKN142
EM4PBCKN122
EM4PBCKUW
Trim shield and cover to suit
For both Form 4 Type 2 and Type 6
Fit cover with 6 x M5 fixings
Fix with
4 x M5
fixings
Fix with
4 x M5
fixings
Fix with 2 x M5 fixings
Fix with
4 x M5
fixings
Fix with
4 x M5
fixings
Fix with 5 x M5
fixings per cover
