30
INM MTL83xC PC Modbus Rev 4
7 ETHERNET MODULE CONFIGURATION – MTL838C-MBT only
Initially, the MTL838C-MBT is configured to get its IP address from a DHCP server.
For most installations, the IP address will need to be set to a known value so that it
may be easily identified on the network.

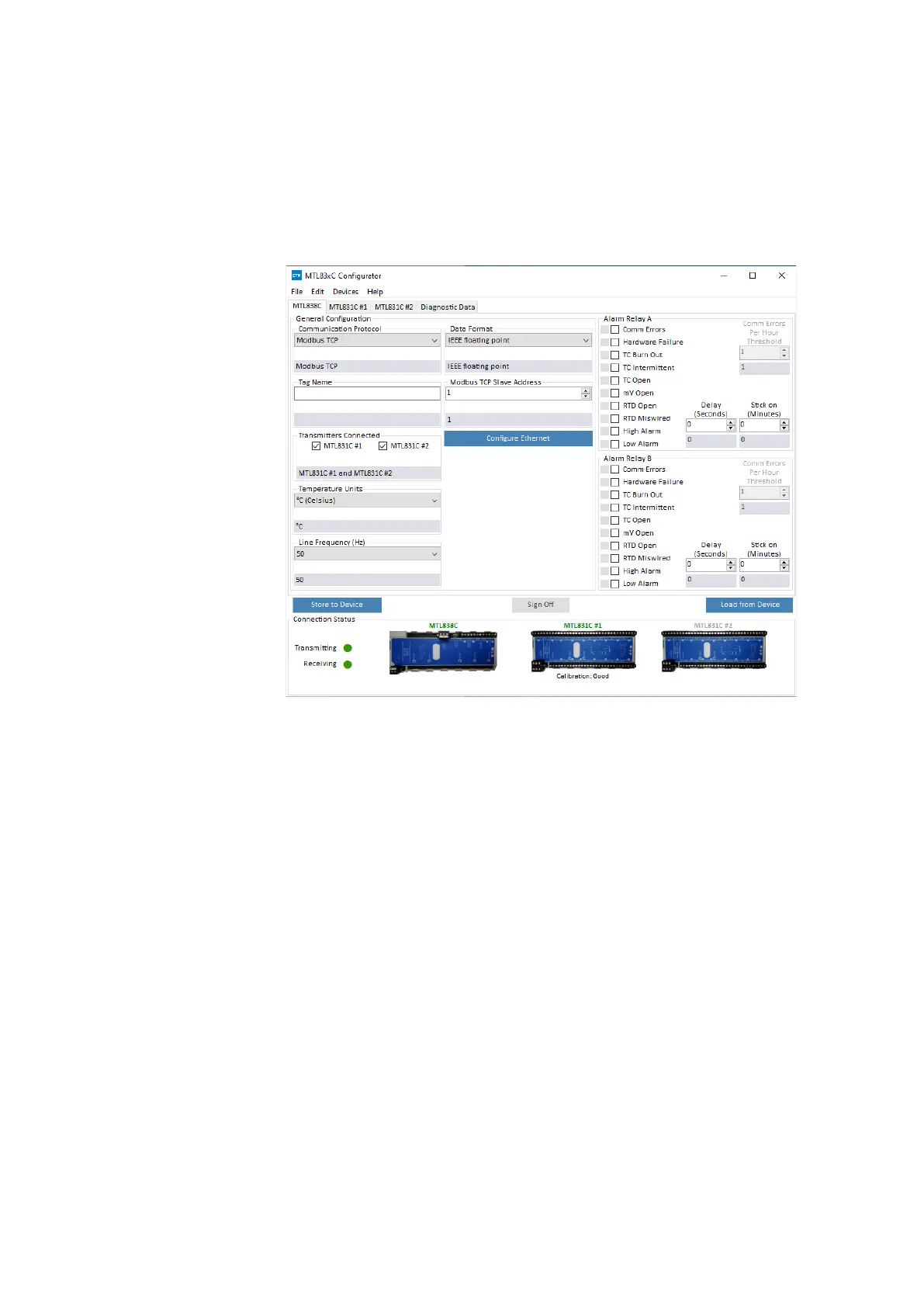

The following is what the MTL838C tab looks like when the Communication Protocol
is Modbus TCP:
Refer to section 5.2 for information on how to work with the various fields. The Modbus
TCP Slave Address has been renamed when in Modbus TCP mode, but functions as
in section 5.2.4.
