6 HORN RELAYS
6.1 HNA & HNB Horn Relays
• Two horn relays are provided as standard HNA & HNB.
• Any channel within the annunciator can be software congured to
operate the HNA or HNB relay as required.

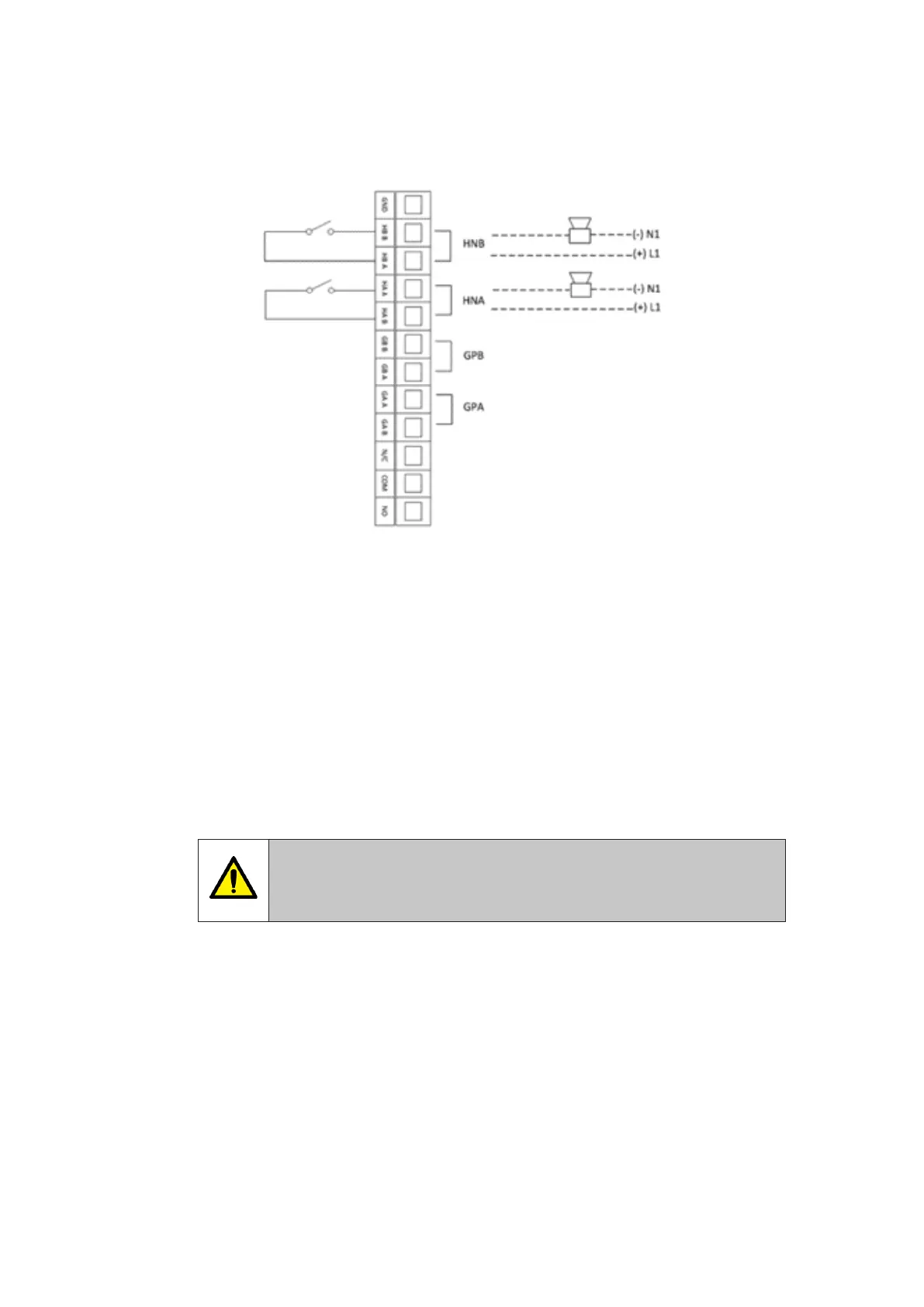

• A volt free contact is available from each relay to switch an external
audible or 3rd party device.
• The relay is normally de-energised providing a N/O contact to activate
the horn when an alarm occurs.
• Contact rating 4A 24VDC (2A 120VAC).
• If horn relays are not required the relays can be software selected to an
alternative function. (Group Relay, Pushbutton Follower,
Watchdog Function)
WARNING !
Hazardous voltages may exist on the rear panel connections when
connectors are removed. Take care not to touch any exposed parts
