65
11 Modbus register map
PXR TRIP UNITS FOR POWER DEFENSE MOLDED CASE CIRCUIT BREAKERS MN012007EN March 2019 www.eaton.com

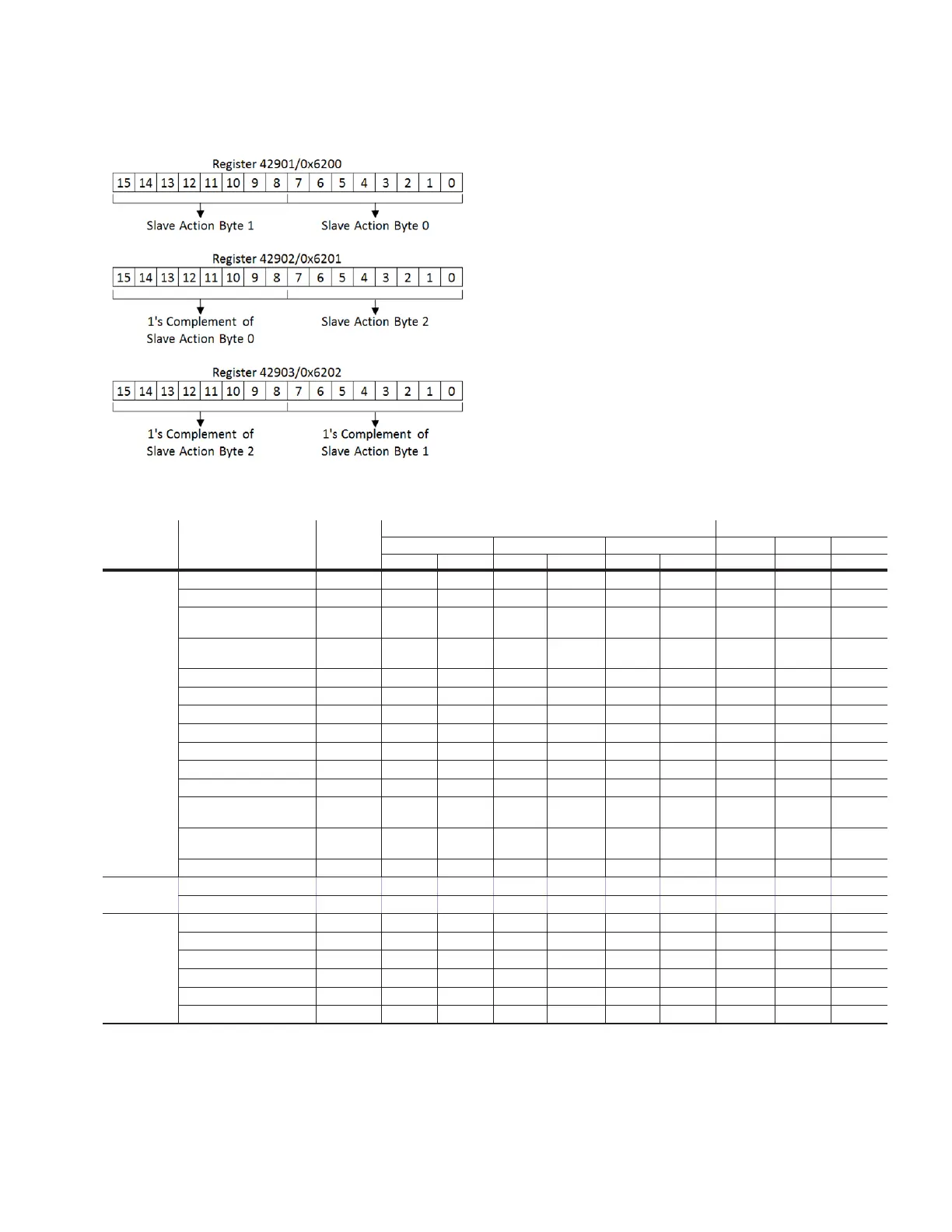

Remote Control Date Format
Control
group Definition Password
Decimal byte Decimal word
42903 42902 42901 42903 42902 42901
Byte 5 Byte 4 Byte 3 Byte 2 Byte 1 Byte 0 Word 3 Word 2 Word 1
Reset Reset trip No 255 255 253 0 0 2 65535 64768 2
Reset min/max currents Yes 255 254 242 0 1 13 65534 61952 269
Reset min/max line-to-
neutral voltages
Yes 255 254 240 0 1 15 65534 61440 271
Reset min/max line-to-line
voltages
Yes 255 254 241 0 1 14 65534 61696 270
Reset peak demand watts Yes 255 255 251 0 0 4 65535 64256 4
Reset all min/max values Yes 255 254 251 0 1 4 65534 64256 260
Reset energy Yes 255 255 247 0 0 8 65535 63232 8
Reset trip count Yes 255 250 254 0 5 1 65530 65024 1281
Reset operations count Yes 255 254 253 0 1 2 65534 64768 258
Reset temperature Yes 255 250 253 0 5 2 65530 64768 1282
Reset runtime Yes 255 254 252 0 1 3 65534 64512 259
Reset all diagnostics
information
Yes 255 250 252 0 5 3 65530 64512 1283
Reset powered up
indication
No 255 255 252 0 0 3 65535 64512 3
Open breaker Yes 254 255 255 1 0 0 65279 65281 0
Maintenance
Mode
Enable maintenance mode No 254 255 247 1 0 8 65279 63233 8
Disable maintenance mode No 254 255 246 1 0 9 65279 62977 9
Relay Output Activate relay output 1 No 251 254 254 4 1 1 64510 65028 257
De-activate relay output 1 No 251 253 254 4 2 1 64509 65028 513
Activate relay output 2 No 251 254 253 4 1 2 64510 64772 258
De-activate relay output 2 No 251 253 253 4 2 2 64509 64772 514
Activate relay output 3 No 251 254 252 4 1 3 64510 64516 259
De-activate relay output 3 No 251 253 252 4 2 3 64509 64516 515
