6
Instruction Book IB182923EN September 2018 www.eaton.com
AMH-4.76-VR
+
VR-Series
+
Replacement Circuit Breaker
E
H
I
G
F
J
H
DB
C C
A

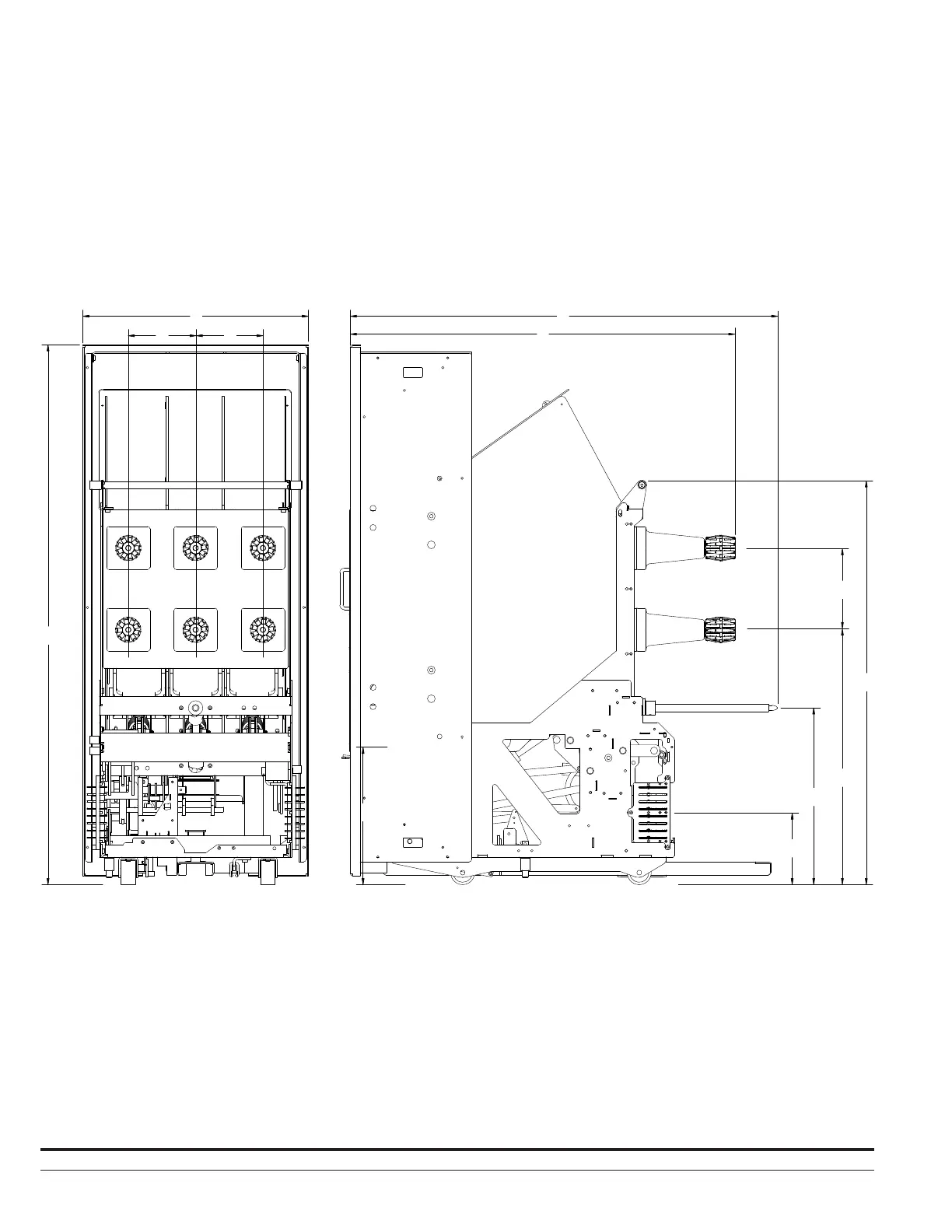

Table 2. AMH-4.76-VR
+
Dimensions
Breaker Type
Existing Breaker
Rated Continuous
Current at 60 Hz
(Amps) A B C D E F G H I J
AMH-4.76-VR
+
250/41 1200 / 2000 56.02 23.44 7.00 44.42 40.07 7.50 18.38 26.50 8.50 42.00
