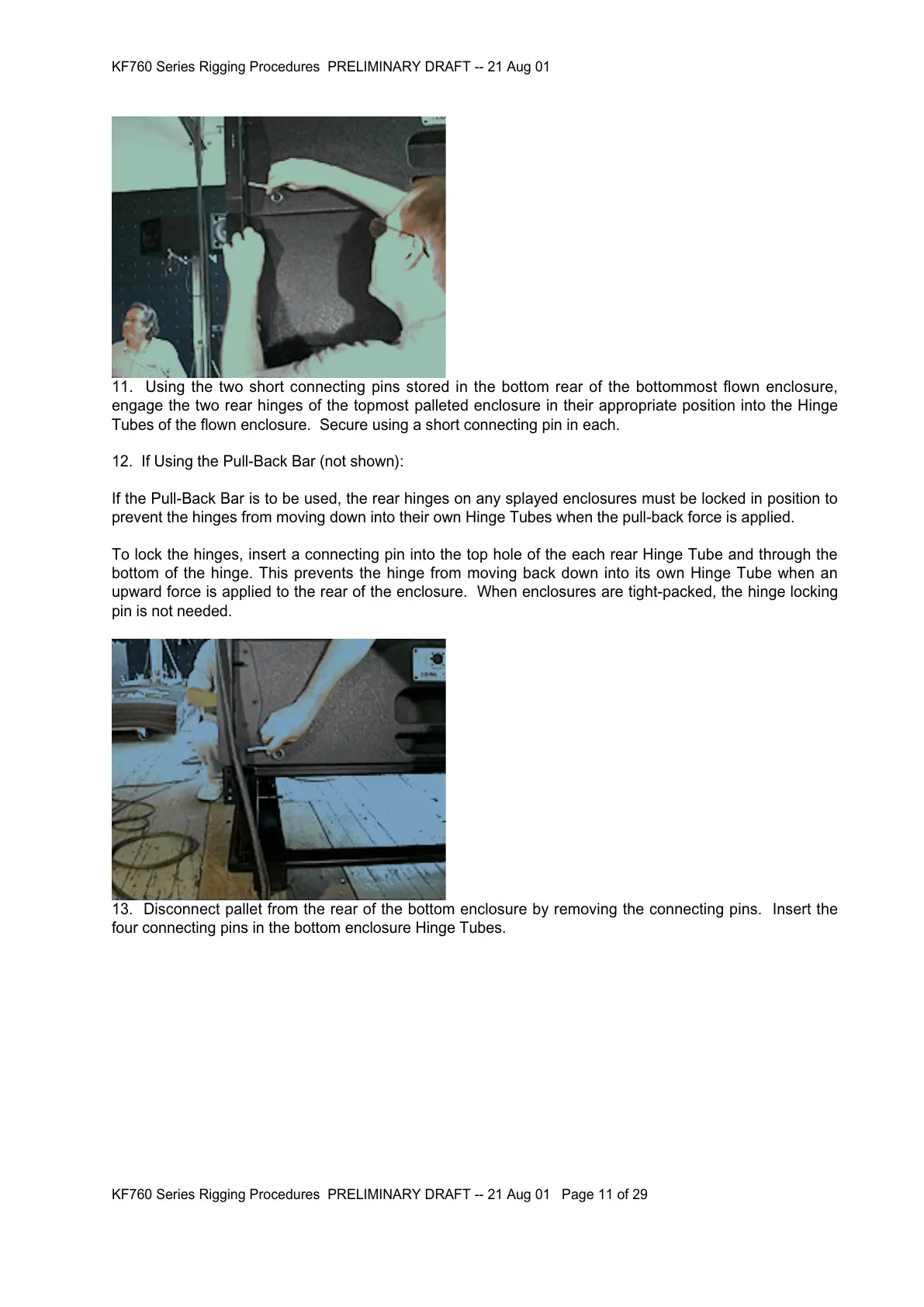

11. Using the two short connecting pins stored in the bottom rear of the bottommost flown enclosure,
engage the two rear hinges of the topmost palleted enclosure in their appropriate position into the Hinge
Tubes of the flown enclosure. Secure using a short connecting pin in each.
12. If Using the Pull-Back Bar (not shown):
If the Pull-Back Bar is to be used, the rear hinges on any splayed enclosures must be locked in position to
prevent the hinges from moving down into their own Hinge Tubes when the pull-back force is applied.
To lock the hinges, insert a connecting pin into the top hole of the each rear Hinge Tube and through the
bottom of the hinge. This prevents the hinge from moving back down into its own Hinge Tube when an
upward force is applied to the rear of the enclosure. When enclosures are tight-packed, the hinge locking
pin is not needed.
13. Disconnect pallet from the rear of the bottom enclosure by removing the connecting pins. Insert the
four connecting pins in the bottom enclosure Hinge Tubes.
