KF760 Series Rigging Procedures PRELIMINARY DRAFT -- 21 Aug 01

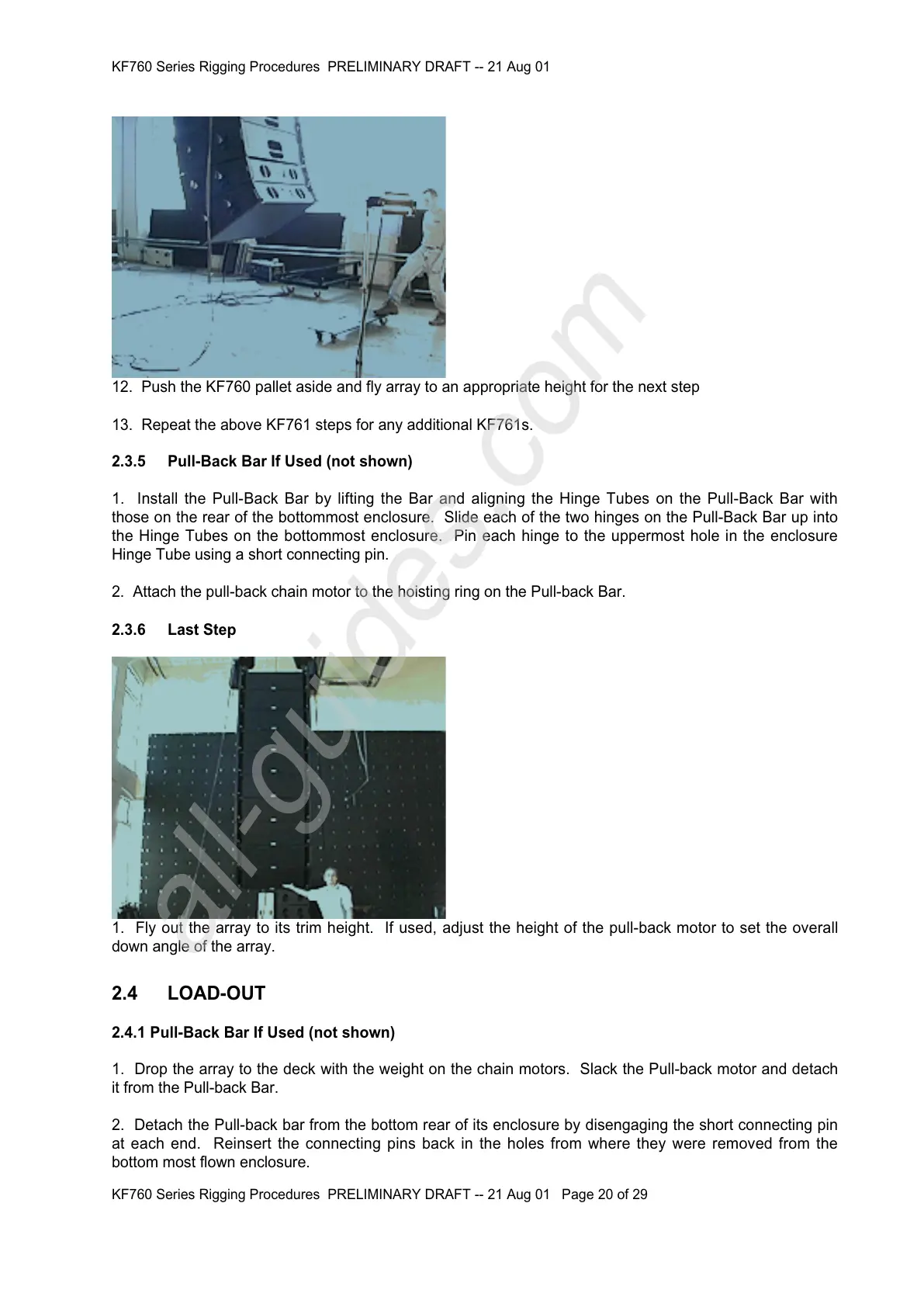

KF760 Series Rigging Procedures PRELIMINARY DRAFT -- 21 Aug 01 Page 20 of 29
12. Push the KF760 pallet aside and fly array to an appropriate height for the next step
13. Repeat the above KF761 steps for any additional KF761s.
2.3.5 Pull-Back Bar If Used (not shown)
1. Install the Pull-Back Bar by lifting the Bar and aligning the Hinge Tubes on the Pull-Back Bar with
those on the rear of the bottommost enclosure. Slide each of the two hinges on the Pull-Back Bar up into
the Hinge Tubes on the bottommost enclosure. Pin each hinge to the uppermost hole in the enclosure
Hinge Tube using a short connecting pin.
2. Attach the pull-back chain motor to the hoisting ring on the Pull-back Bar.
2.3.6 Last Step
1. Fly out the array to its trim height. If used, adjust the height of the pull-back motor to set the overall
down angle of the array.
2.4 LOAD-OUT
2.4.1 Pull-Back Bar If Used (not shown)
1. Drop the array to the deck with the weight on the chain motors. Slack the Pull-back motor and detach
it from the Pull-back Bar.
2. Detach the Pull-back bar from the bottom rear of its enclosure by disengaging the short connecting pin
at each end. Reinsert the connecting pins back in the holes from where they were removed from the
bottom most flown enclosure.
