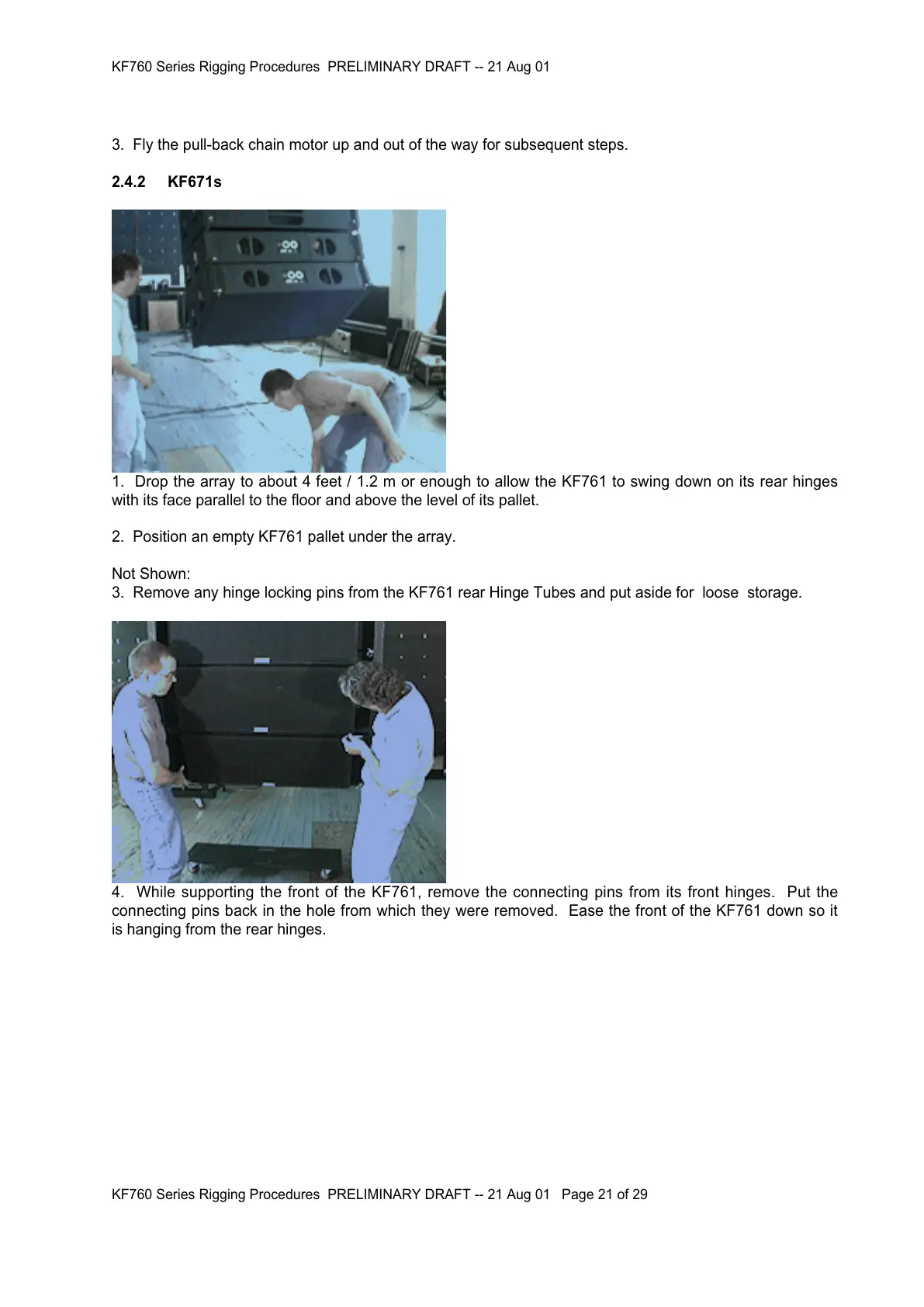

3. Fly the pull-back chain motor up and out of the way for subsequent steps.
2.4.2 KF671s
1. Drop the array to about 4 feet / 1.2 m or enough to allow the KF761 to swing down on its rear hinges
with its face parallel to the floor and above the level of its pallet.
2. Position an empty KF761 pallet under the array.
Not Shown:
3. Remove any hinge locking pins from the KF761 rear Hinge Tubes and put aside for loose storage.
4. While supporting the front of the KF761, remove the connecting pins from its front hinges. Put the
connecting pins back in the hole from which they were removed. Ease the front of the KF761 down so it
is hanging from the rear hinges.
