EBA 551-06 - Operating Elements Overview

- 17 -
•
Operation
•

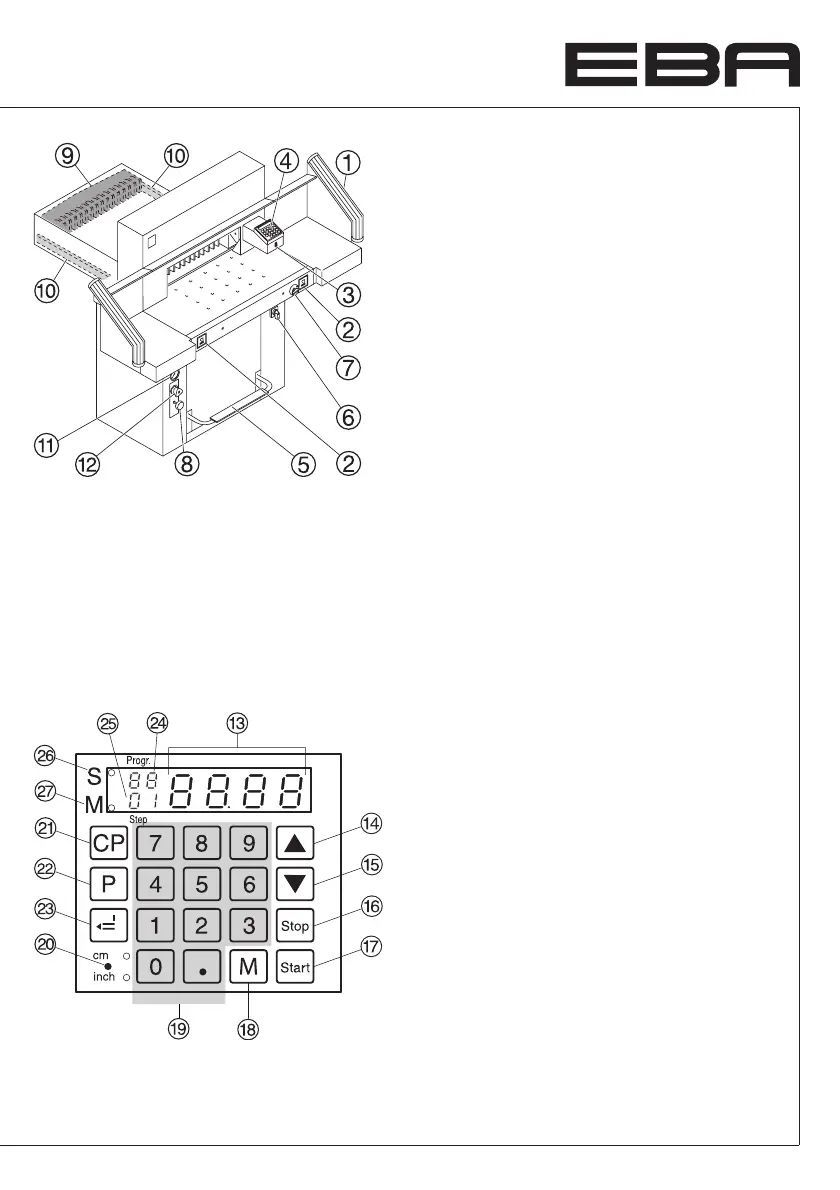

Operating elements
A
- Safety light beam
B
- Safety two-handed control system
clamping and cutting
C
- Air table On-Off
D
- Backgauge control
E
- Foot pedal
F
- Main switch
G
- Hand-wheel for backgauge setting
H
- Blade locking
I
- Backgauge
J
- Side lay left and right
K
- Clamp pressure
L
- Clamp pressure adjustment
M
- Display cutting size (cm or inch)
N
- Select program step up (Programming)
or fixed dimension (Standard 21 cm)
O
- Select program step down (Programming)
or fixed dimension (Standard 10,5 cm)
P
- Stop and delete input
Q
- Start
R
- Memory multiple cut
S
- Keypad
T
- Changeover cm - inch (LED - display)
U
- Clear program
V
- Select program
W
- Enter
X
- Program number
Y
- Program step
Z - Cut is blocked
a - Display multiple cut
