Operation
•
Start machine
• Main switch
F
to position "I", Pull out blade
locking key
H
.
• Press
S
button
Q
 backgauge I moves
to the rear and searches for the reference
position, wait until a measurement is shown
in the display
D
(57 cm or 22,44 inches).
Warning!
Before storing or cutting a measurement
please check if the correct measurement

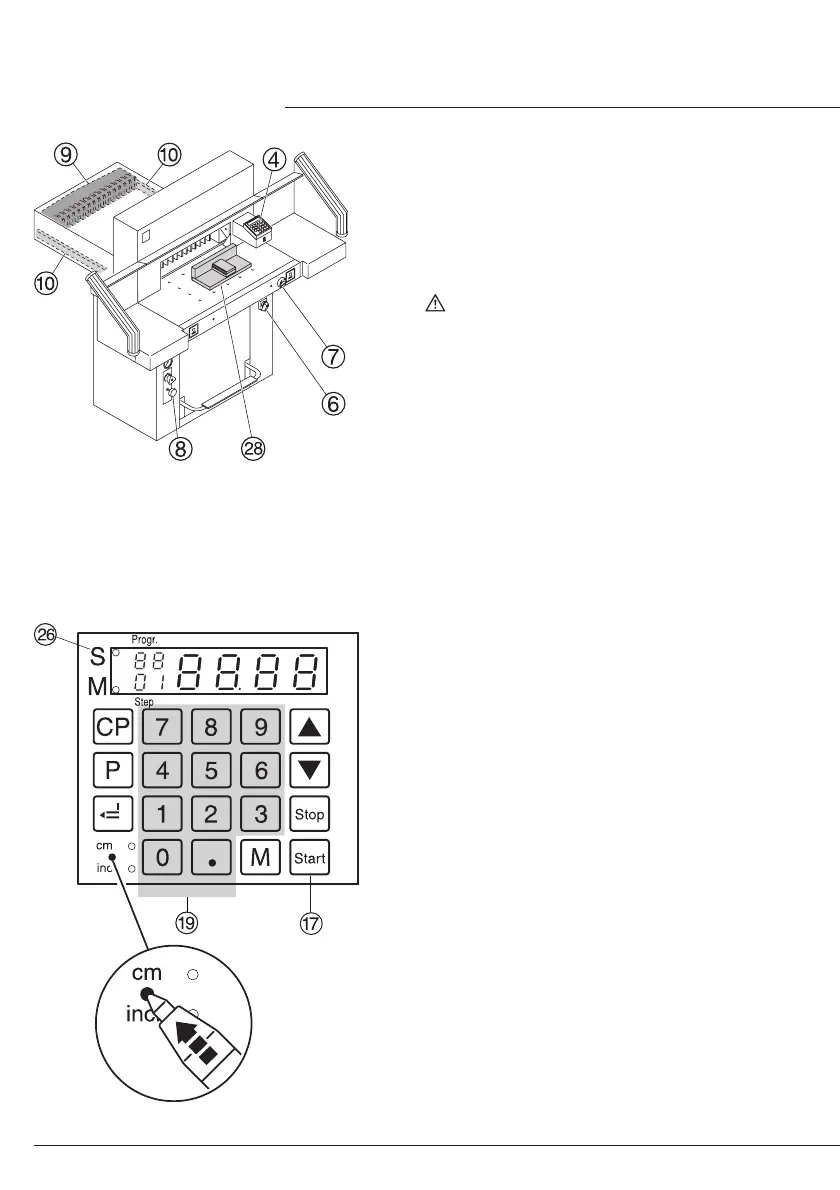

scale (cm or inch) is stored (LED lights). For
information on how to store see picture below
left.
Cutting to specified dimensions
• Enter dimension on the numerical key pad
S
 LED "S"
Z
lights.
(If a wrong dimension is entered this can
be corrected by pressing the
s
button).
• Press
S
button  dimension is
approached,  LED "S" disappears.
With the false clamp measurements
between 6 cm and 8 cm can only be
approached with the hand-wheel
G
. See
page 14.
• Insert paper and move by means of the
stacking angle to the backgauge
I
and
side lay on the left
J
.
• Release the cut.
Cut according to markings
• Adjust the backgauge with the hand-wheel
or crank handle
G
to the back.
• Insert paper and move by means of the
stacking angle
b
to the backgauge I and
side lay on the left
J
.
• Turn the hand-wheel
G
to the right until the
marking on the paper to be cut is below the
cutting line indicator.
• The further the hand-wheel
G
is turned to
the right, the quicker the backgauge moves.
If the hand-wheel is turned to the left the
backgauge will return quicker.
• Release the cut.
