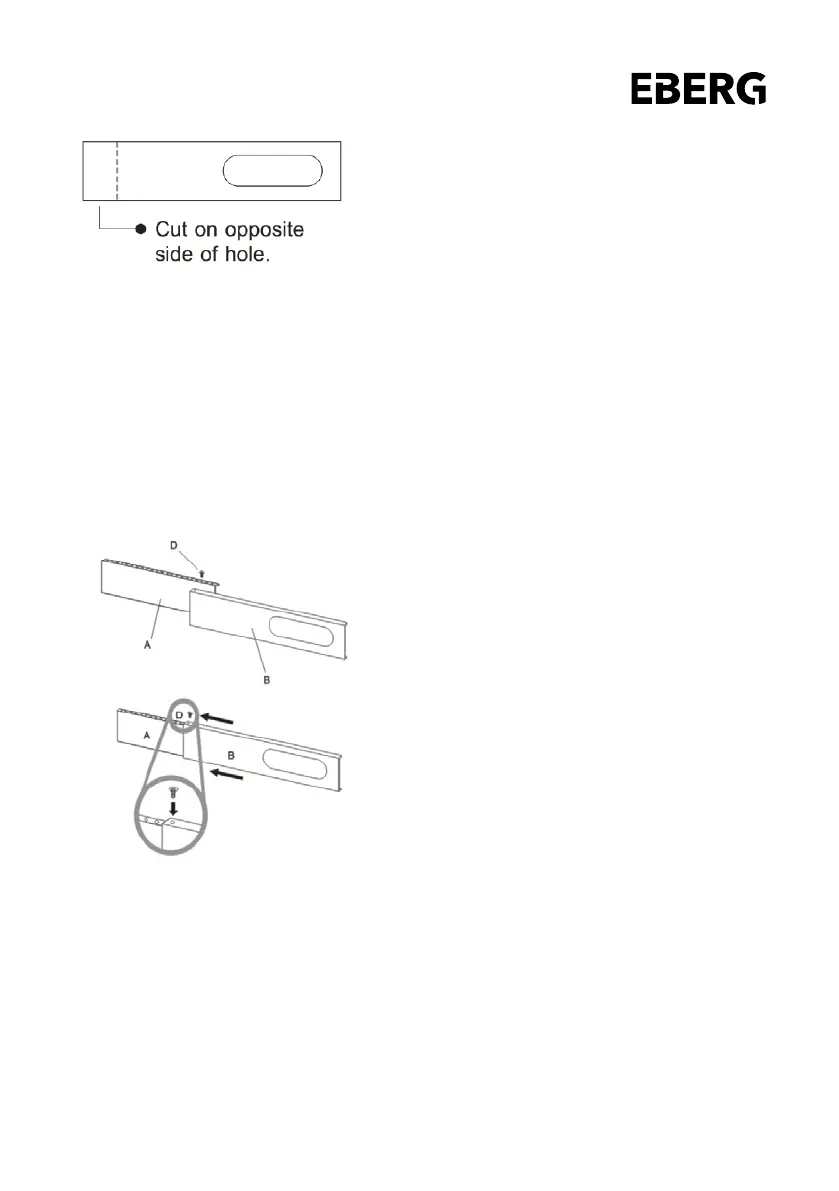

WINDOW SLIDER KIT INSTALLATION
1. Parts:
A) Panel
B) Panel with one hole
C) Screw to lock window kit in place
2. Assembly:
Slide Panel B into Panel Aand size to widow width. Windows sizes vary. With the width that your window
requires to ensure that there are no gaps or air pockets in the window kit assembly after installation.
3. Lock the screw into the holes that correspond
LOCATION
• The unit should be placed on arm foundation to minimize noise and vibration. For safe and secure
positioning place the unit on asmooth, level oor strong enough to support the unit.
• The unit has casters to aid placement, but it should only be rolled on smooth, at surfaces. Use
caution when rolling on carpeted surfaces. Use caution and protect oors when rolling over wood
oors. Do not attempt to roll the unit over objects.
• The unit must be placed within reach of aproperly rated grounded socket.
• Never place any obstacles around the air inlet or outlet of the unit.
• Allow at least 18”(45cm) of around and above space away from the wall for ecient working.
• The hose can be extended, but it is the best to keep the length to minimum required. Also make sure
that the hose does not have any sharp bends or sags.
