Eberg ELIO E35T1 - Middle Drainage Procedure for Dry Mode; Dry Mode Drainage Setup and Operation

ELIOEN
53
www.eberg.eu
NOTE

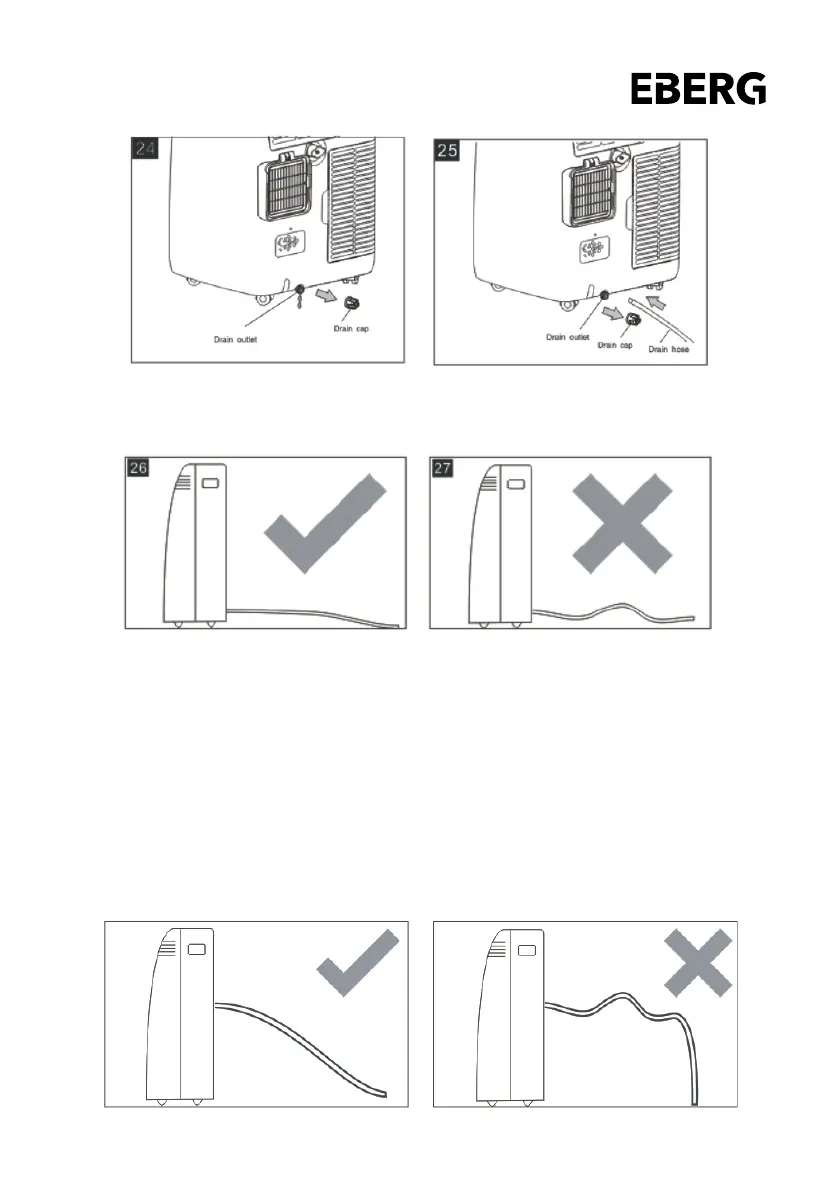

Please be sure that the height of and section of the drain hose should not be higher than that of the drain
outlet, or the water tank may not be drained. (g.26 and g.27)
Middle drainage
1. When unit running in Dry mode, you can choose the way below to drainage.
2. Unplug the unit from the power source.
3. Remove the drain plug(g A). While doing this operation some residual water may spill so please
have apan to collect the water.
4. Connect the drain hose (1/2” or 12.7mm). (g B)
5. The water can be continuously drained through the hose into aoor drain or bucket.
6. Turn on the unit.
NOTE
Please be sure that the height of and section of the drain hose should not be higher than that of the drain
outlet, or the water tank may not be drained.
