nRF24L01P wireless module E01 series user manual
Copyright ©2012–2017，Chengdu Ebyte Electronic Technology Co.,Ltd.
8

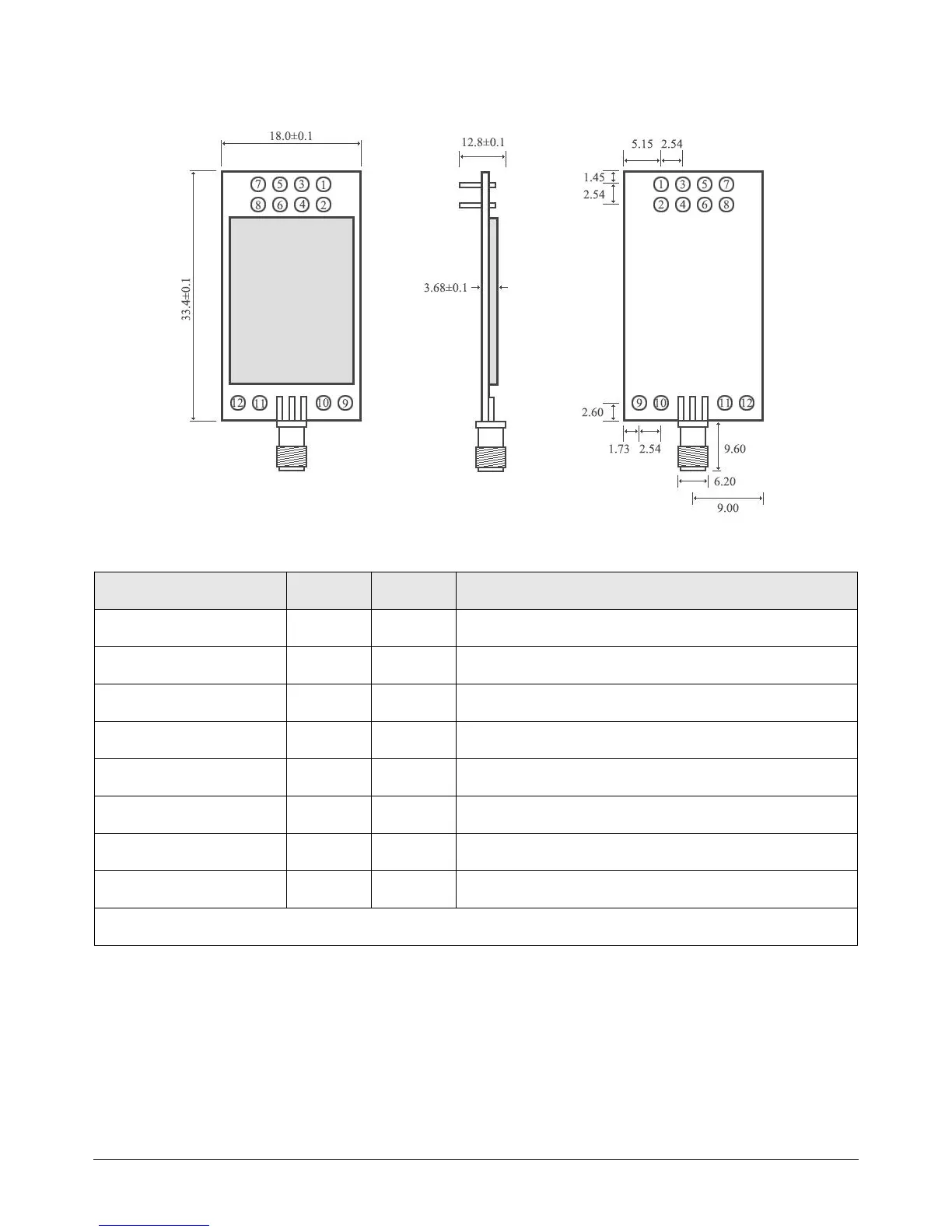

2.3. E01-ML01DP5
Pin No.
Pin item
Pin direction
Pin application
1
GND
Ground
2
VCC
Power supply 2.0V~3.6V DC
3
CE
input
Chip enable
4
CSN
input
SPI Chip select
5
SCK
input
SPI Clock
6
MOSI
input
SPI master output slave input
7
MISO
Output
SPI master input slave output
8
IRQ
Output
Interrupt request, valid in low communication level
★ Find more details on《nRF24L01P Datasheet》from Nordic ★
