ECD T80 - Set the 4-20 Ma RANGE; Calibrate the Output; Choose 4-20 Ma Fault Condition

Configure Outputs - 4-20 mA

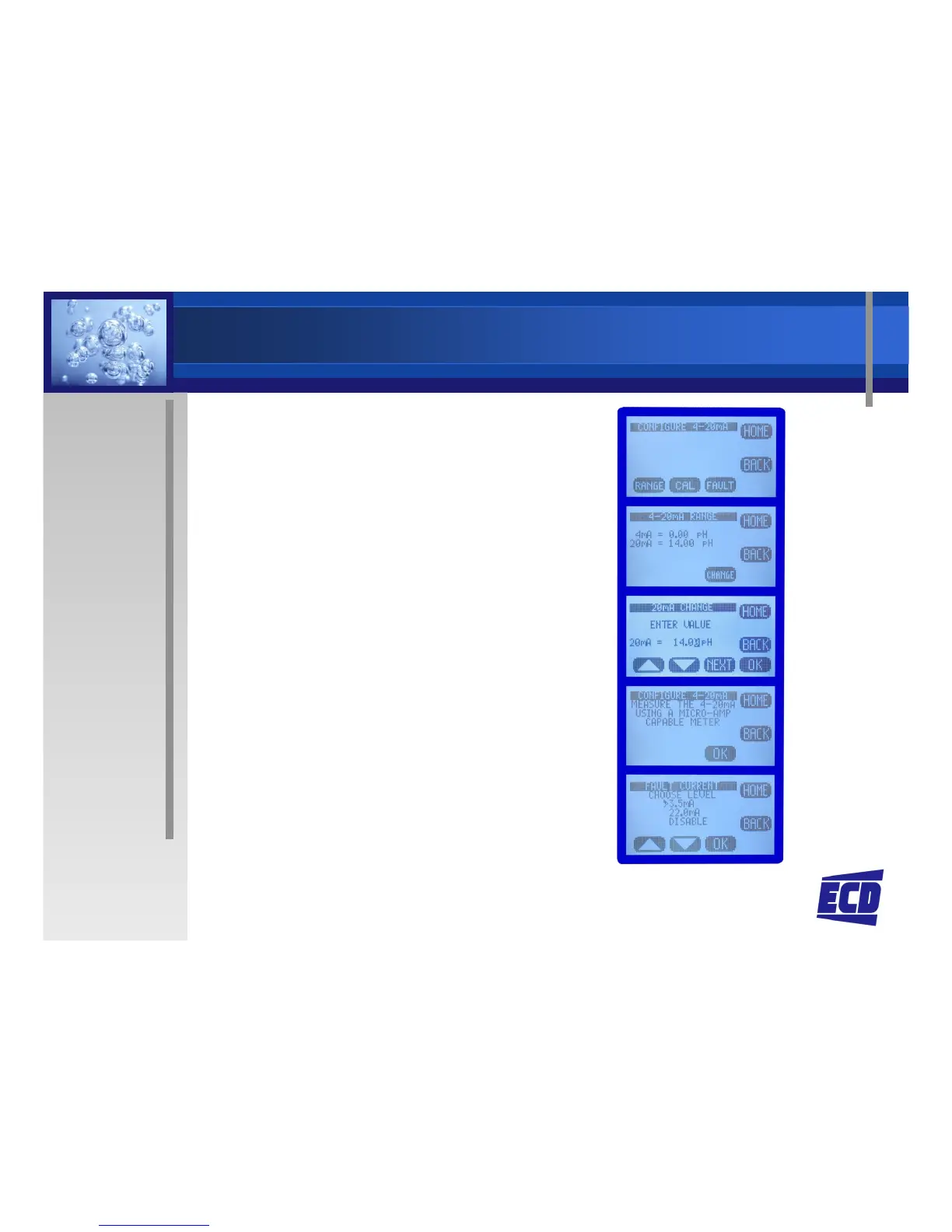

 Set The 4-20 mA RANGE
 Default setting is the range of
the sensor
 Select 4 mA/20 mA, enter value
 HOME, EXIT, SAVE
 Calibrate the Output
 Transmitter sends out 4 mA
signal
Enter measured value press OK

Enter measured value press OK
 Transmitter sends out 20 mA
signal
 Enter measured value and press
OK
 Repeat as needed
 Choose 4-20 mA Fault Condition
 3.5 mA
 22 mA
 Disable, none
