Sign Name Description
A Recorder Load recording paper, print ECG report
B LCD screen Display operation interface and contents
C Keyboard Function buttons, input of numbers and letters
The LCD screen can be damaged if place heavy object on it or hit it.
Please fold the screen to prevent accidental damage after use.

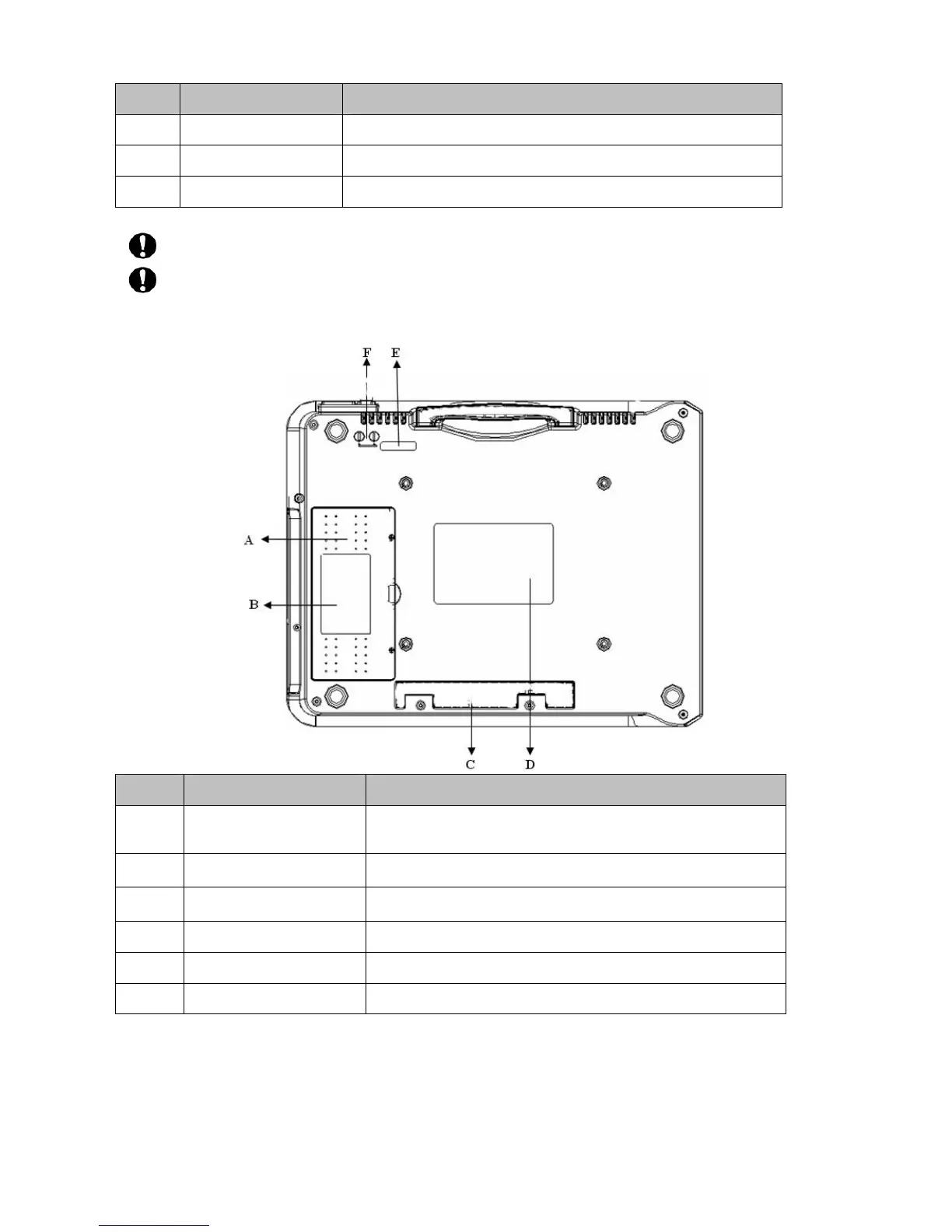

3.1.2 Bottom Panel
Signal Name Function description
A Battery compartment Lithium battery installed inside
B Battery label Battery group label
C Vents Internal heat dissipation channel
D Product label Product information label
E Fuse label Fuse specification label
F Fuse compartment AC fuse installation
Battery compartment
The rated output voltage and capacity of built-in rechargeable lithium batteries are as follow:
Rated output voltage: 14.8V
Rated capacity: 4400mAh
