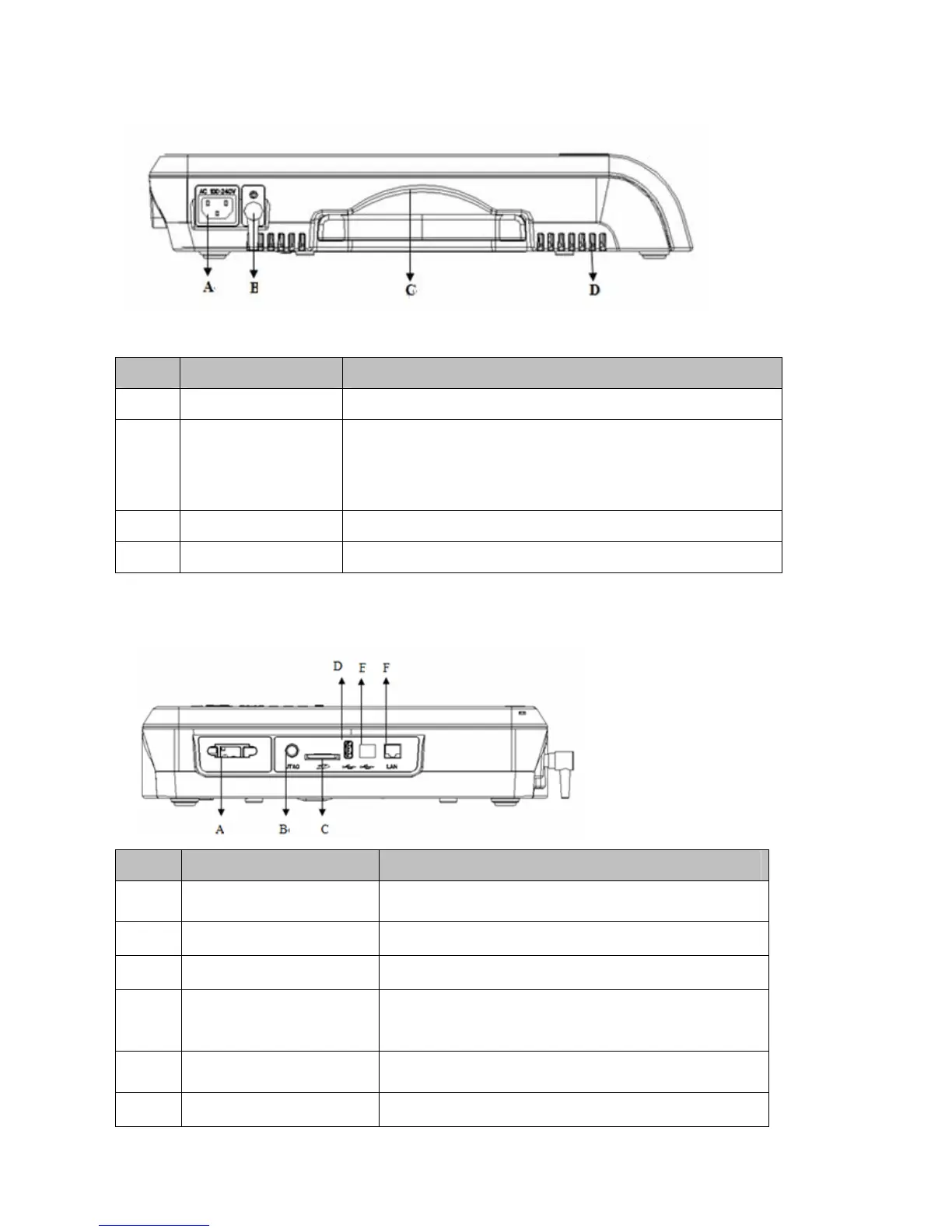

3.1.3 Rear View
Sign Name Function description
A AC power socket Connect with AC power cord
B Equipotential stud
The equipotential stud is used for connecting with the
grounding line when equipotential grounding line is needed
for electronic safety
C Handle Portable to carry
D Vents Internal cooling channels
3.1.4 Side View
Sign Name Function description
A Patient cable socket Connect patient cable.
B Test interface Testing by manufacturer
C SD card slot For SD card insertion
D USB Master Port
Standard USB 2.0 port to connect external printer
supporting PCL6
E USB Slave Port Standard USB 2.0 port to connect PC (optional)
F LAN socket Standard LAN port, connect with network cable
