36
For detailed operation, please refer to “Manual 1” mode.
Manual 12
Manual 12, for detailed operation, please refer to “Manual 1” mode
5.6.2 Rhythm Mode
This mode is rhythm lead record mode. The ECG signal acquisition duration for selected rhythm is
60seconds, it start print after the 60seconds’ acquisition duration.
Please refer to 5.7 for selected rhythm. In the Rhythm mode, press 【RHY】 to select “single
channel rhythm” “3 channel rhythm” The acquisition duration is 60seconds.
“Rhythm 1” means single channel rhythm recording.
“Rhythm 3” means three channels rhythm recording.

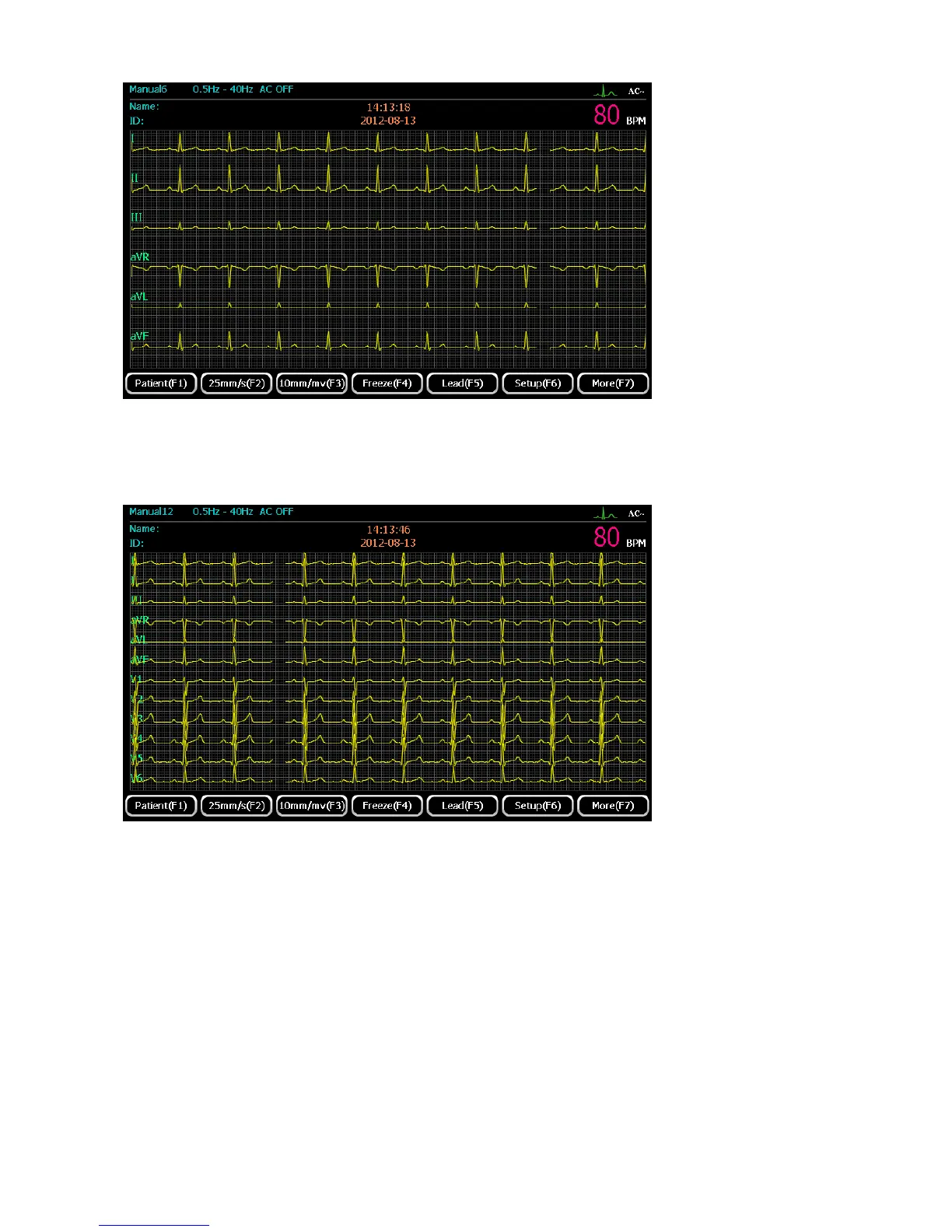

Select “rhythm” mode by pressing 【RYH】button. The ECG will connect data about the defined
rhythm lead. The display screen is shown as the following figure:
