belt adjustment
belt adjustment

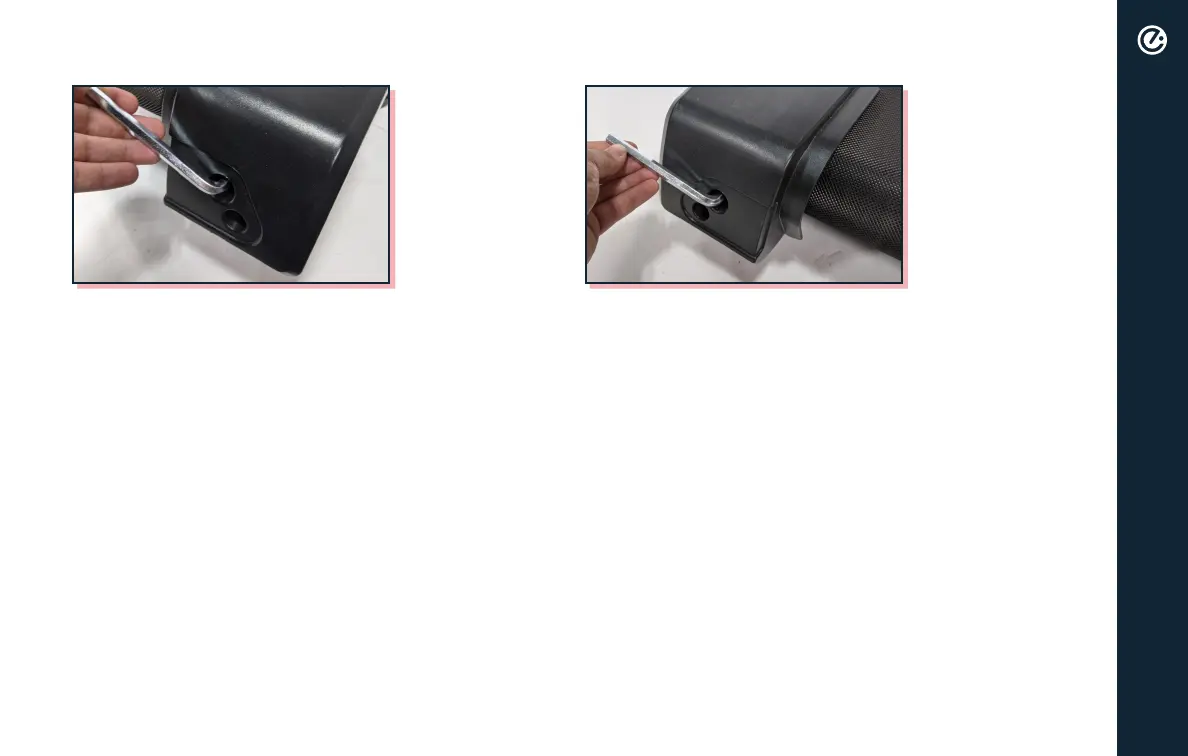

If the belt has drifted right, unplug the safety lock and
power switch and turn the right adjusting bolt 1/4 turn
clockwise. Insert the power switch and safety lock, run the
treadmill, and observe the running belt's position. Repeat
until the running belt is centered on the running deck.
If the belt has drifted left, unplug the safety lock and power
switch and turn the left adjusting bolt 1/4 turn clockwise.
Insert the power switch and safety lock, run the treadmill,
and observe the running belt's position. Repeat until the
running belt is centered on the running deck.
caution:
Special care must be taken when aligning the running belt. Turn off the treadmill while adjusting or working near
the rear roller. Remove any loose clothing and tie back your hair. Be very careful to keep your fingers and any other
object clear of the belt and rollers, especially in front of the roller and behind the deck. The treadmill will not stop
immediately if an object becomes caught in the belt or rollers.
If you hear any chafing or the running belt appears to be getting damaged, stop the running belt immediately by
pressing the STOP key. Contact Echelon
®
customer service. Walk around to the rear of the unit and observe the belt for
a few minutes. The should be centered on the running deck. If the belt drifts off center, you must make adjustments.
For your safety, use the power switch to turn off the treadmill before making any adjustments. Do not adjust the
running belt when someone is standing on the unit.
Do not turn the adjusting bolt more than 1/4 turn at a time. Over tightening the bolt can damage the treadmill. If you
are unsure how to adjust the running belt, contact Echelon
®.
important:
Failure to align the belt may cause the belt to tear or fray, which may not be covered under the Echelon warranty. To
stop the runing belt, press the STOP key. Turn the treadmill off.
