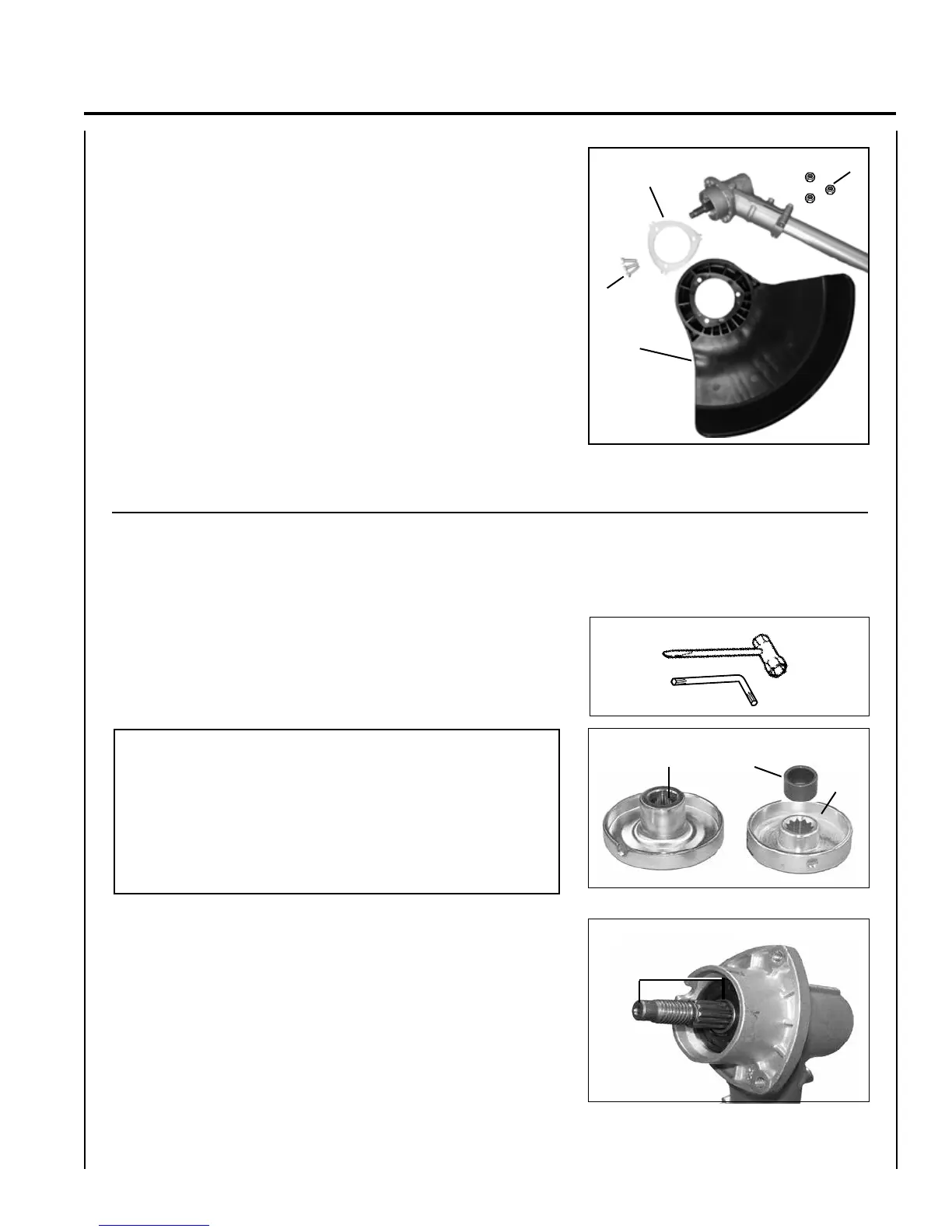

Echo 99944200418

blade conversion kit installation instructions
5
1. Check type of gear case assembly on unit:
• Measure PTO shaft.
• If shaft is 32 mm, proceed to step 2.
• If shaft is 42 mm, proceed to step 3.
• If shaft is 45 mm, proceed to step 4.
2. Install short-necked upper xing plate (Y) onto PTO shaft.
3. Install shaft collar (Z) then short-necked upper xing plate (Y)
onto PTO shaft.
4. Install long-necked upper xing plate (X) onto PTO shaft.
IMPORTANT
This kit can be mounted on several different style gear cases. A
long-necked upper xing plate (X), a short-necked upper xing
plate (Y), and a 10mm shaft collar (Z) are included in the kit, and
may be required to properly mount the blade. Failure to install the
correct upper xing plate conguration will cause the gearcase to
bind. Refer to the assembly instructions below to identify upper
xing plate assembly.
install optional blade
Kit 99944200418 - Blade not included
Kit 99944200422 - Blade included
Tools Required: Torx T27 L-Wrench, T-Wrench.
Parts Required: Upper Fixing Plate w/ 20 mm pilot, Lower Plate, 10
mm Nut, Split Pin, Blade.
X
Y
Z
PTO
SHAFT
C
D
E
2. Align plastic blade shield (C) with the drive shaft, and install on the
bottom of the gear case ange.
3. Place shield plate (D) on shield and align holes. Install (3) screws
(E) and (3) locknuts (F).
4. Tighten all hardware.
F
