MAINTENANCE CS-2511P
54 X7503333700
© 11/2020 ECHO Incorporated
• Be sure to round off the front edge
of the depth gauge.
• Properly filed cutters are shown in
illustration.
• When setting of the chain is
finished, soak it in oil and
wash away filings completely
before using.
• When chain has been filed on the
bar, supply sufficient oil to it,
move the chain slowly to wash
away the filings before using
again.
• If the chain saw is operated with
filings clogged in the groove, the
saw chain and the guide bar will
be damaged prematurely.
• If the saw chain becomes soiled
with resin, for instance, clean it
with kerosene and soak in it oil.

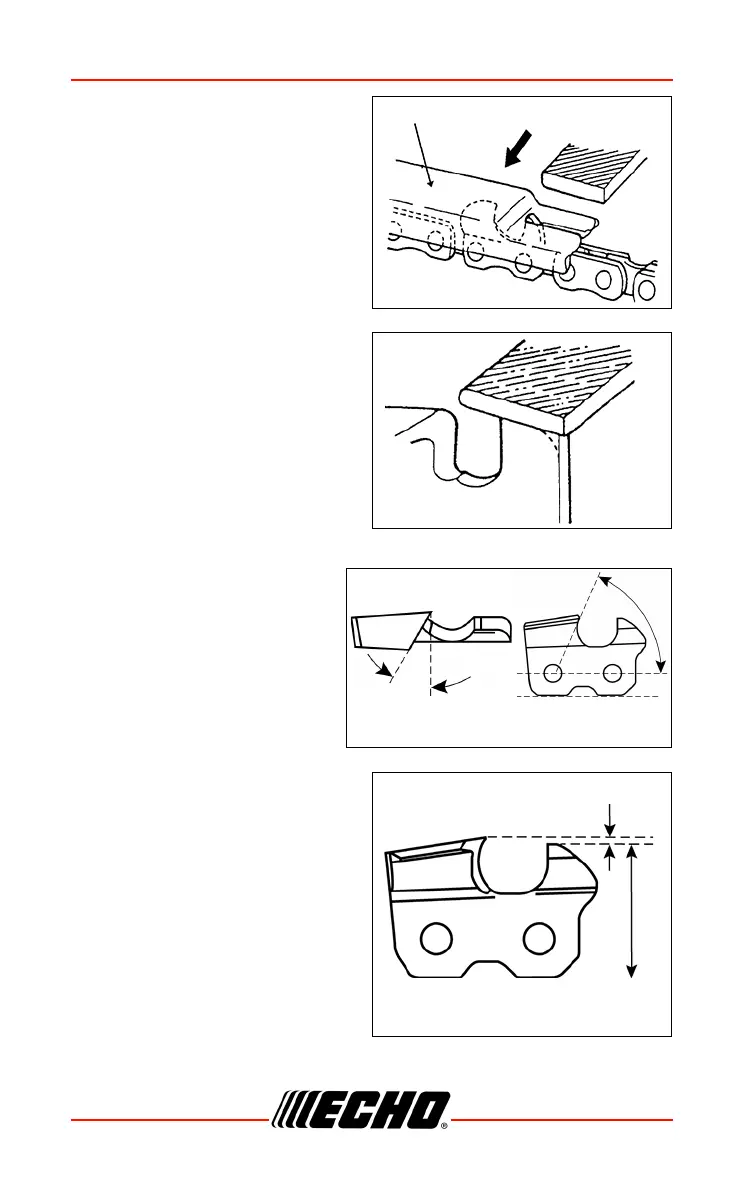

Depth gauge tool
55°
Side plate angle
30°
Top plate
filing angle
0.64 mm (0.025 in.)
Parallel
Depth gauge
