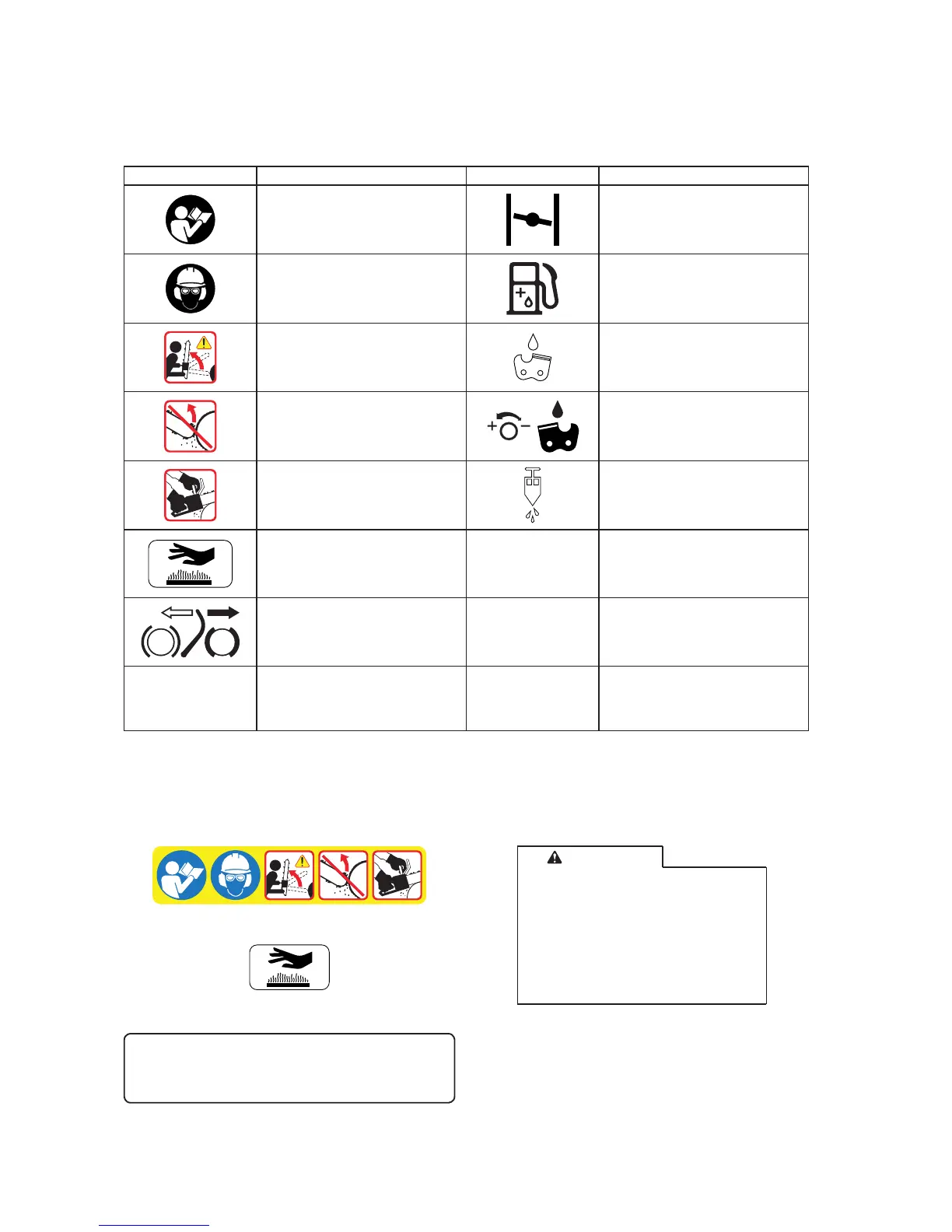

SYMBOL FORM
DECALS
Locate this safety decal on your unit. The complete
unit illustration found in the “NOMENCLATURE OF
PARTS” section will help you locate them.
Make sure the decal is legible and that you
understand and follow the instructions on it. If a
decal cannot be read, a new one can be ordered
from your ECHO dealer.
Part Number X505-002310
Part Number X505-002071
WARNING
Chain brake must be unlocked before
removing or installing clutch cover. Improper
cover installation can result in serious injury
and cause severe damage to saw.
La frein du chaînes doit être deséngagé
avant d’enlever ou installer la couverture
d’embryage. La couverture installée
inexactement peut avoir consequence
d’blessures serieuseset endommager la
scie.
Part Number X505-006660
Part Number X524-004660
REPLACEMENT BAR AND CHAIN
REMPLACEMENT DU GUIDE ET DE LA CHAÎNE
GUIDE BAR P/NO. CHAIN P/NO. CKA
GUIDE PIÈCE NO. CHAÎNE PIÈCE NO.
12” 12A4CD3745 90PX45CQ 23.9
12” 12A0CD3745 91PX45CQ 23.6
This saw shall be used only
by certified tree service
professionals.
Cette tronçonneuse doit être
utiliser seulement par des
professionnels de l’abattage.
Symbol form/shape Symbol description/application Symbol form/shape Symbol description/application
CAUTION: For safe
operation follow all safety
precautions and instructions
in Operator’s Manual
Choke control “Cold Start”
position (choke closed)
Wear eyes, ears and head
protection
Oil and gasoline mixture
Tip contact may cause the
guide bar to move suddenly
upward and backward, which
may cause serious injury
Chain oil fill
Contact of the guide bar tip
with any object should be
avoided
Chain oiler adjustment
Both of the operator’s hands
must be used to operate the
chain saw
Purge pump
Hot surface
l
Carburetor adjustment
- Low speed mixture
Chain brake operation
h
Carburetor adjustment
- High speed mixture
STOP
Emergency stop
T
Carburetor adjustment
- Idle speed
