CS-3410 ASSEMBLY
X7503361801 23
© 10/23 ECHO Incorporated

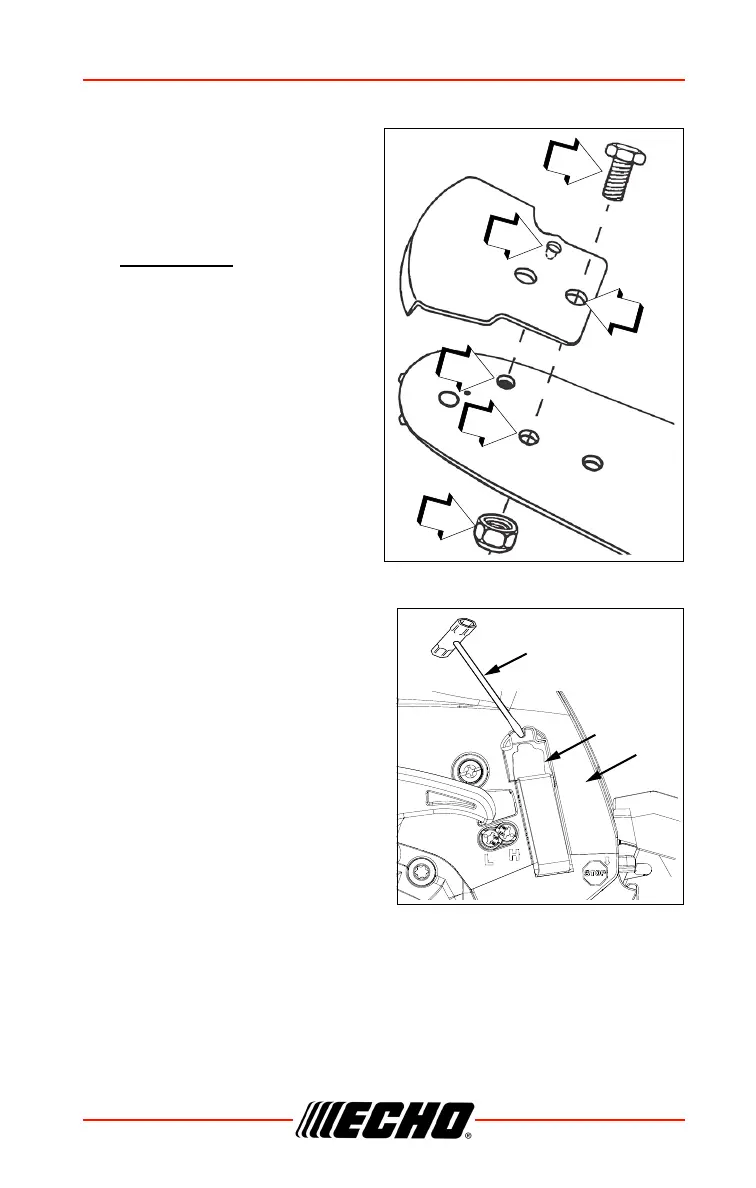

Instructions to Install Optional Kick Guard
TM
to Bar
Tools Needed: Two 11 mm (7/16 in.)
Wrenches.
1. Install bolt (A) in rear hole (B) of
tip guard and through front hole
(C) in guide bar.
2. IMPORTANT:
Dimple (D) in tip
guard must engage recess (E)
in guide bar.
3. Securely tighten nut (F) and
bolt (A).
Guide Bar and Saw Chain
Installation/Removal
1. Release the cylinder cover
latches (A) by inserting the screw
driver end of the supplied tool (B)
and lifting the latch tip as shown.
Remove the cylinder cover (C).
2. Remove spark plug lead.
Optional
Kick Guard
TM
A
B
C
D
E
F
