CS-350WES
8
STARTER SYSTEM
C
B
D
E
F
B
G
WARNING DANGER
Wear eye protection and take care when re-
moving starter drum, because rewind spring
may unwind suddenly and cause injury to
eyes and body.

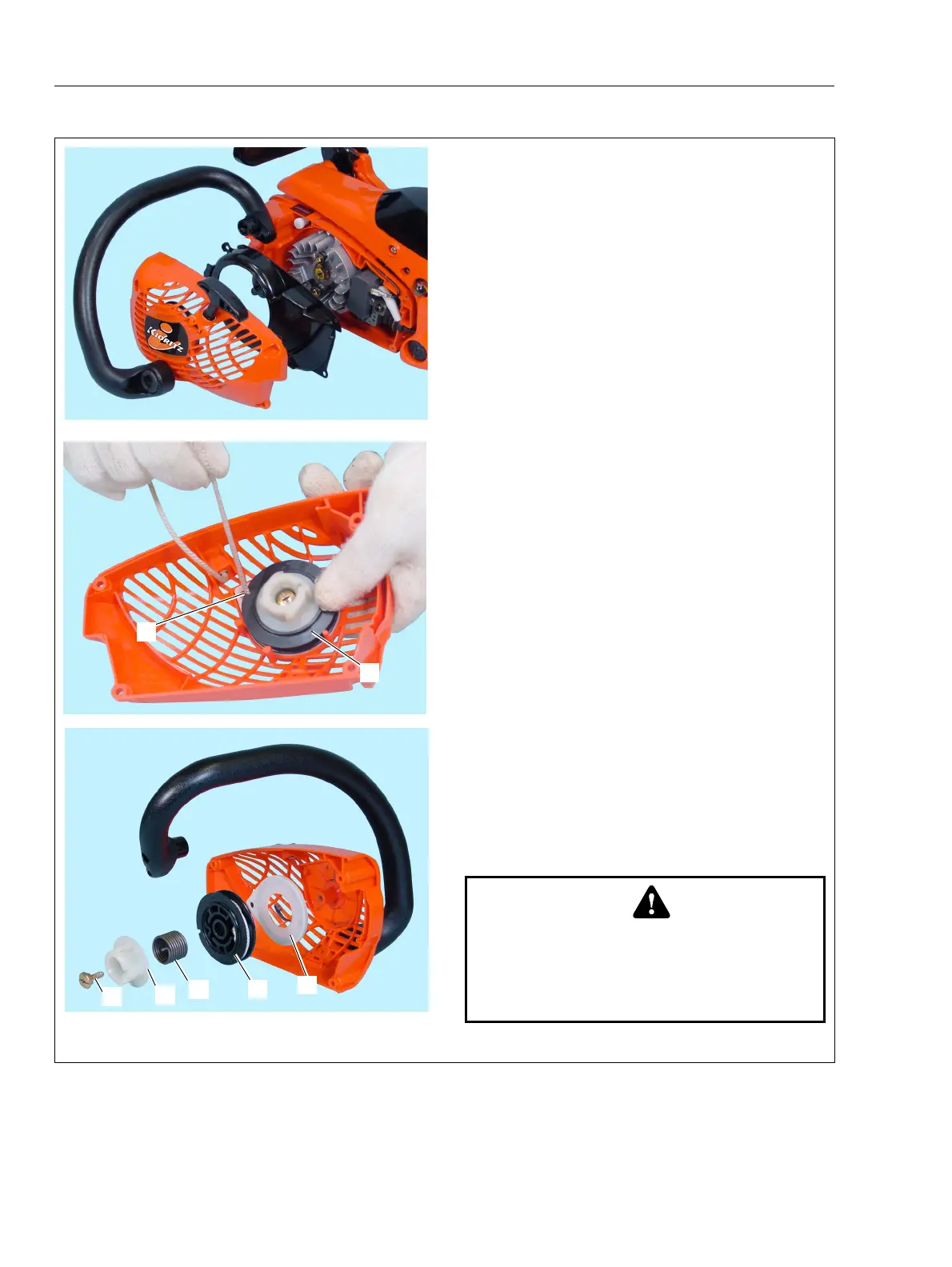

2-1 Disassembling starter assembly
1. Remove recoil starter assembly with front handle
from unit.
2. Pull out starter rope about 30 centimeters (12 in)
and hold rope reel (B). And pull starter rope inside
starter case as shown.
3. Rotate rope reel (B) counterclockwise to release
tension of rewind spring with the rope hooked at
notch (C).
4. Remove screw (D).
5. Remove cam plate (E) and power spring (F).
6. Remove rope reel (B) from starter case slowly.
7. Remove rewind spring case (G) from starter case.
To Next Page
