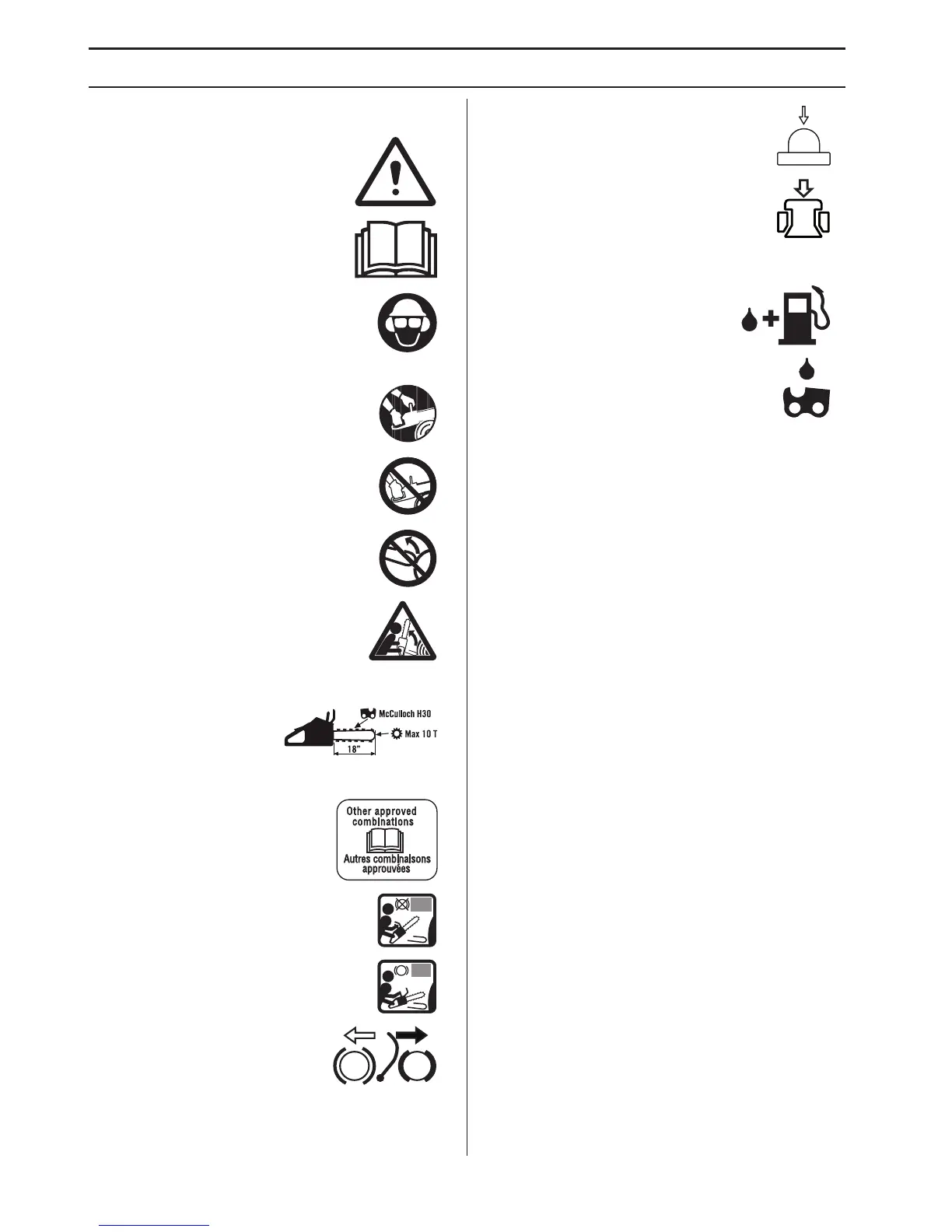

KEY TO SYMBOLS
6 – English
Symbols on the machine:
WARNING! Chain saws can be
dangerous! Careless or improper use
can result in serious or fatal injury to
the operator or others.
Please read the operator’s manual
carefully and make sure you
understand the instructions before
using the machine.
Always wear:
• Approved protective helmet
• Approved hearing protection
• Protective goggles or a visor
Both of the operator
′
s hands must be used
to operate the chain saw.
Never operate a chain saw holding it with
one hand only.
Contact of the guide bar tip with any object
must be avoided.
WARNING! Kickback may occur when
the nose or tip of the guide bar touches
an object, and cause a lightning fast
reverse reaction, kicking the guide bar up
and towards the operator. May cause
serious personal injury.
Recommended cutting
equipment in this example:
- Bar length 18 inches
- Max. nose radius 10 Teeth
- Chain type McCulloch H30
Other approved bar and chain
combinations in Operator’s Manual.
Measured maximum kickback value
without triggering the chainbrake.
Measured maximum kickback value
without chain brake.
Chain brake, activated (right) Chain
brake, not activated (left)
Air purge.
Decompression valve:
The valve is to
reduce the pressure in the cylinder and
make starting easier. You should always use
the decompression valve when starting the
machine.
Refuelling.
Chain oil fill.
Other symbols/decals on the machine refer to special
certification requirements for certain markets.
