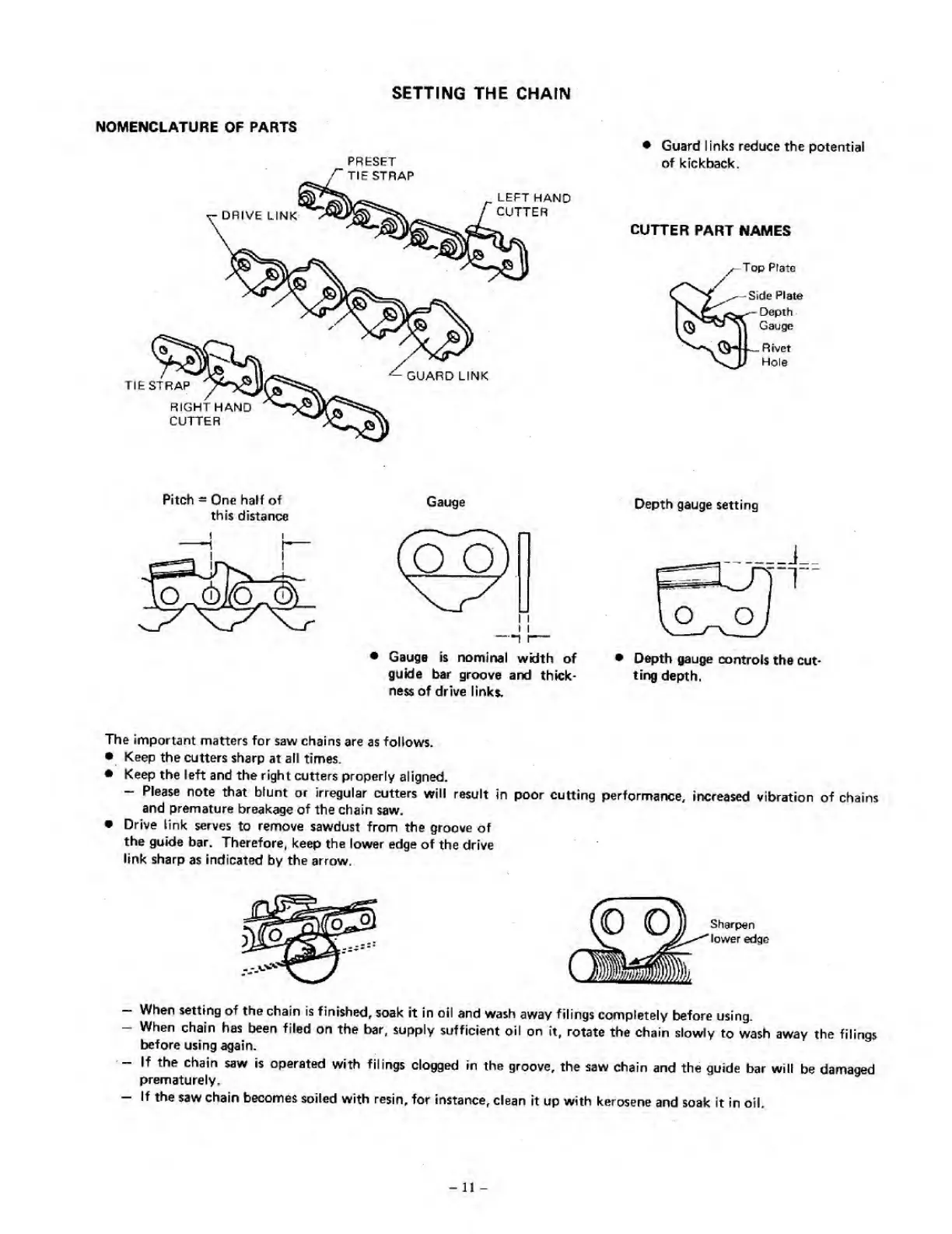

SETTING
THE
CHAIN
NOMENCLATURE
OF
FARTS
PRESET
^
Guard
I
inks
reduce
the
potential
of
kickback.
CUTTER
PART
NAMES
/Top
Plate
^Side
Plate
Depth
Gauge
Pitch
a
One
half
of
this
distance
Gauge
Depth
gauge
setting
^
Gauge
is
nominal
width
of
^
O^^th
gauge
controls
the
cut-
guide
bar
groove
and
thick-
ting
depth,
ness
of
drive
linkt
The
important
matters
for
saw
chains
are
as
follows.
•
Keep
the
cutters
sharp
at
all
times.
•
Keep
the
left
and
the
right
cutlers
properly
aligned.
-
Please
note
that
blunt
or
irregular
cutters
will
result
in
poor
cutting
performance,
increased
vibration
of
chains
and
premature
breakage
of
the
chain
saw.
•
Drive
link
serves
to
remove
sawdust
from
the
groove
of
the
guide
bar.
Therefore,
keep
the
lower
edge
of
the
drive
link
sharp
as
indicated
by
the
arrow.
When
setting
of
the
chain
is
finished,
soak
it
in
oil
and
wash
away
filings
completely
before
using.
-
When
chain
has
been
filed
on
the
bar.
supply
sufficient
oil
on
it.
rotate
the
chain
slowly
to
wash
away
the
filings
before
using
again.
-
If
the
chain
saw
is
operated
with
filings
clogged
in
the
groove,
the
saw
chain
and
the
guide
bar
will
be
damaged
prematurely.
-
If
the
saw
chain
becomes
soiled
with
resin,
for
instance,
clean
it
up
with
kerosene
and
soak
It
in
oil.
