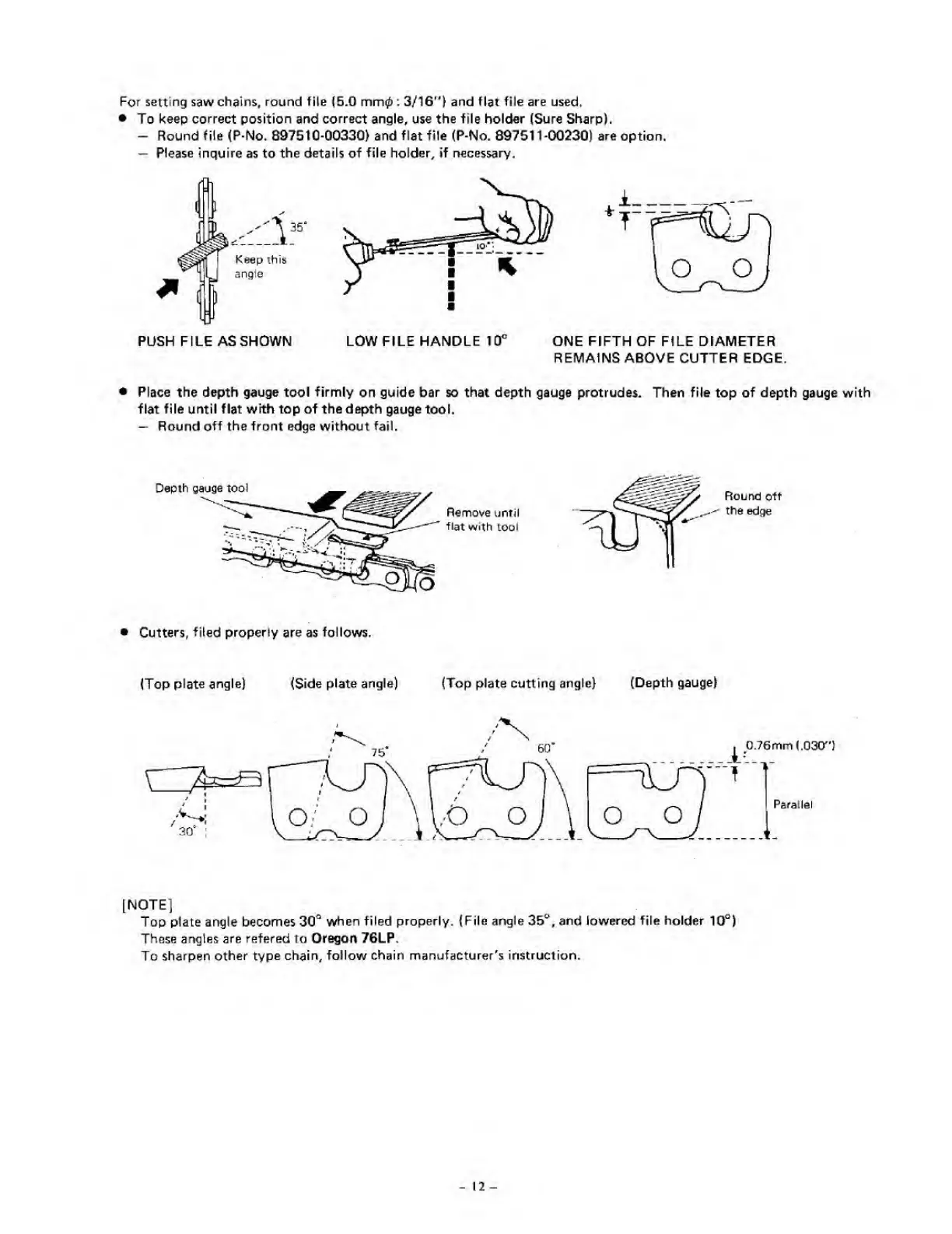

For setting saw chains, round file (5.0 mm0: 3/16''} and flat file are used.
• To keep correct position and correct angle, use the file holder (Sure Sharp).
- Round file (P-No. 897510-00330) and flat file (P-No. 897511-00230) are option.
— Please inquire as to the details of file holder. If necessary.
PUSH FILE AS SHOWN LOW FILE HANDLE 10*" ONE FIFTH OF FILE DIAMETER
REMAINS ABOVE CUTTER EDGE.
• Place the depth gauge tool firmly on guide bar so that depth gauge protrudes. Then file top of depth gauge with
flat file until flat with top of tha depth gauge tool.
— Round off the front edge without fail.
(Top plate angle) (Side plate angle) (Top plate cutting angle) (Depth gauge)
[NOTE]
Top plate angle becomes 30*^ when filed properly. {File angle 35^, and lowered file holder 10®)
These artgles are refered to Oregon 76LP.
To sharpen other type chain, follow chain manufacturer's instruction.
- 12 -
