Preparation For Use
Saw chain is sharp! Always wear gloves when handling
assembly, otherwise serious personal injury may result.
Note: The machine may be delivered with guide bar, and saw chain
separated. Install guide bar, optional Kick Guard
TM
, and saw
chain as follows.

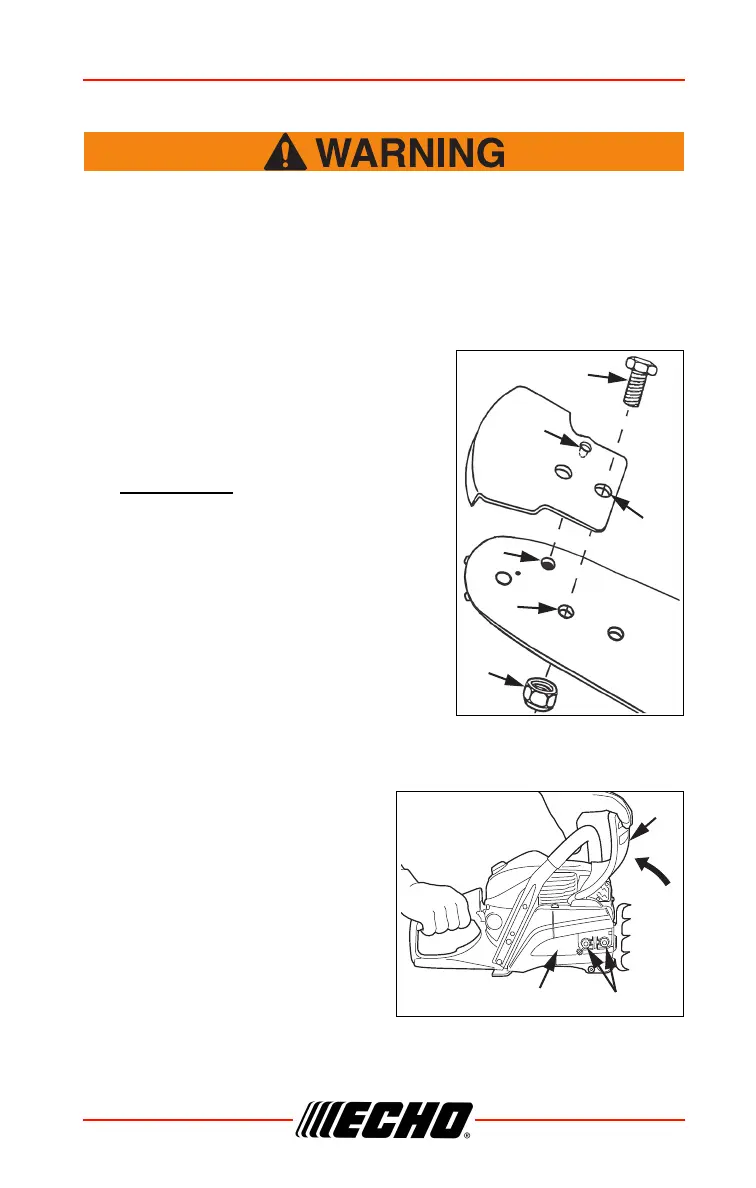

Instructions to Install Optional Kick Guard
TM
to Bar
Tools Needed: Two 11 mm (7/16 in.)
Wrenches.
1. Install bolt (A) in rear hole (B) of optional
Kick Guard
TM
and through front hole (C)
in guide bar.
2. IMPORTANT:
Dimple (D) in optional
Kick Guard
TM
must engage recess (E) in
guide bar.
3. Securely tighten nut (F) and bolt (A).
Guide Bar and Saw Chain Installation / Removal
1. Disconnect spark plug lead.
2. Unlock chain brake (A).
3. Remove sprocket guard nuts (B)
and remove sprocket guard (C).
A
D
B
E
C
F
Optional
Kick Guard
TM
A
B
C

Echo CS-501P Specifications

General

Engine Displacement	50.2 cc
Chain Pitch	0.325 in
Chain Gauge	0.050 in
Bar Length	18 in
Fuel Capacity	0.5 liters
Oil Capacity	0.25 liters
Starting System	Recoil
Fuel Tank Capacity	0.5 liters
Oil Tank Capacity	0.25 liters
Weight (Powerhead Only)	10.6 lbs
