Echo CS-501P User Manual

CS-501P DESCRIPTION
X7503312804 25
© 01/20 ECHO Incorporated

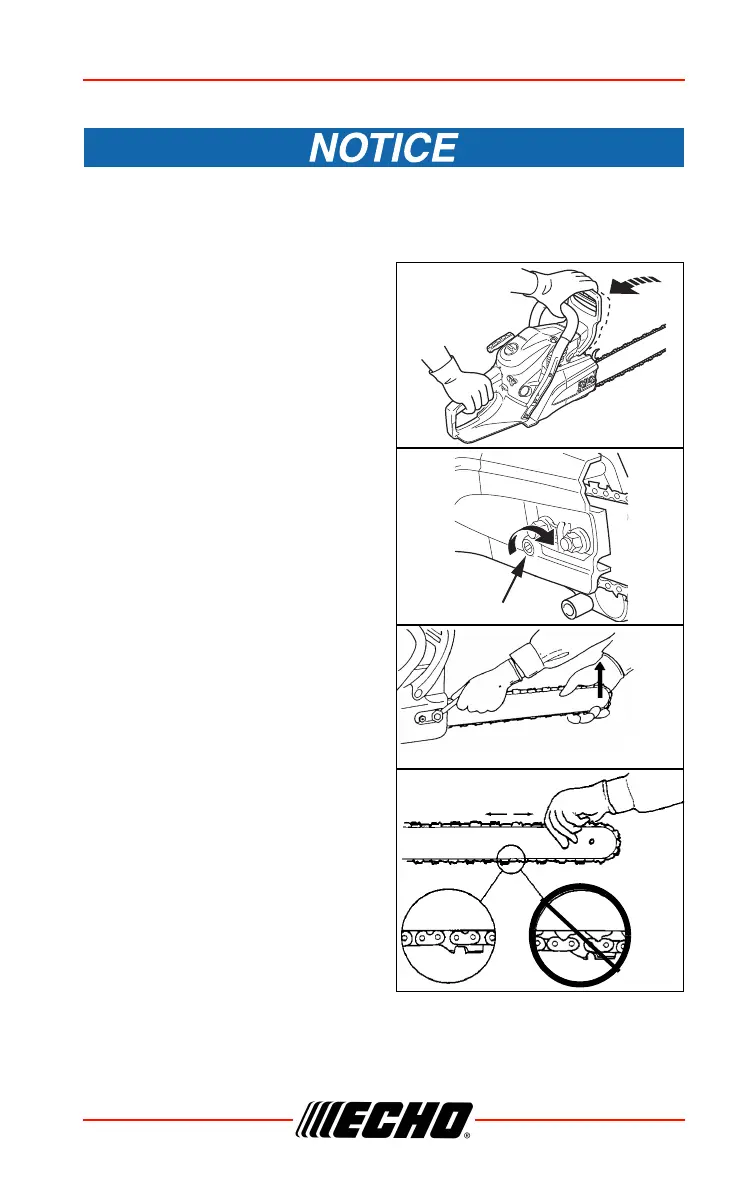

Adjusting Chain Tension
Always loosen sprocket guard nuts before turning the chain tension
adjuster, otherwise the sprocket guard and tensioner will be
damaged.
1. Remove air cleaner cover and
disconnect spark plug lead.
2. Loosen sprocket guard nuts.
3. Hold the bar nose up, and turn
the adjuster toward (+) until chain
contacts underside of the bar.
4. Tighten nuts with the bar nose
held up.
5. Pull the chain around the bar by
hand. Loosen the adjustment if
you feel tight spots.

Echo CS-501P Specifications

General

Engine Displacement	50.2 cc
Chain Pitch	0.325 in
Chain Gauge	0.050 in
Bar Length	18 in
Fuel Capacity	0.5 liters
Oil Capacity	0.25 liters
Starting System	Recoil
Fuel Tank Capacity	0.5 liters
Oil Tank Capacity	0.25 liters
Weight (Powerhead Only)	10.6 lbs
