Echo CS-501P User Manual

MAINTENANCE CS-501P
50 X7503312804
© 01/20 ECHO Incorporated

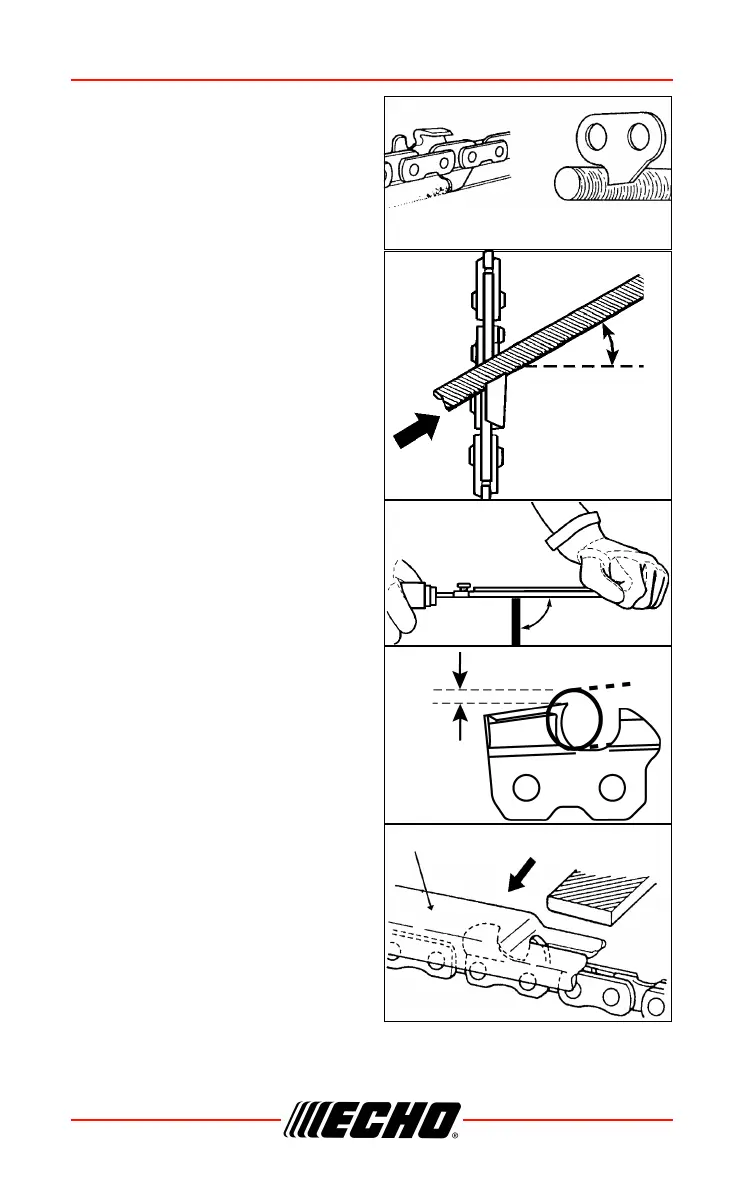

• Drive link serves to remove
sawdust from the groove of the
guide bar. Keep the lower edge of
the drive link sharp where
indicated.
Setting Saw Chain
• For setting saw chain, round file
(4.0 mm [5/32 in.] diam.) and flat
file are used.
• Push file as shown.
• To keep correct position and
correct angle, use a file holder.
• Hold the file horizontally.
• Place the depth gauge tool firmly
on guide bar so that depth gauge
protrudes. Then file top of depth
gauge with the flat file until flat with
top of the depth gauge tool.
• One fifth of the file diameter
remains above cutter edge.
• Be sure to round off the front edge
of the depth gauge.
Sharpen lower edge
30°
Keep this angle
90°
1/5
Depth gauge tool

Echo CS-501P Specifications

General

Engine Displacement	50.2 cc
Chain Pitch	0.325 in
Chain Gauge	0.050 in
Bar Length	18 in
Fuel Capacity	0.5 liters
Oil Capacity	0.25 liters
Starting System	Recoil
Fuel Tank Capacity	0.5 liters
Oil Tank Capacity	0.25 liters
Weight (Powerhead Only)	10.6 lbs
