Echo CS-5100

SERVICE INFORMATION
CS-4400
CS-5100
6
5K177 5K083 5K084 5K081
5K082 5K016 5K025
5K174
5K178
5K173
1
23
4
5
6
7
5K171
5K191B

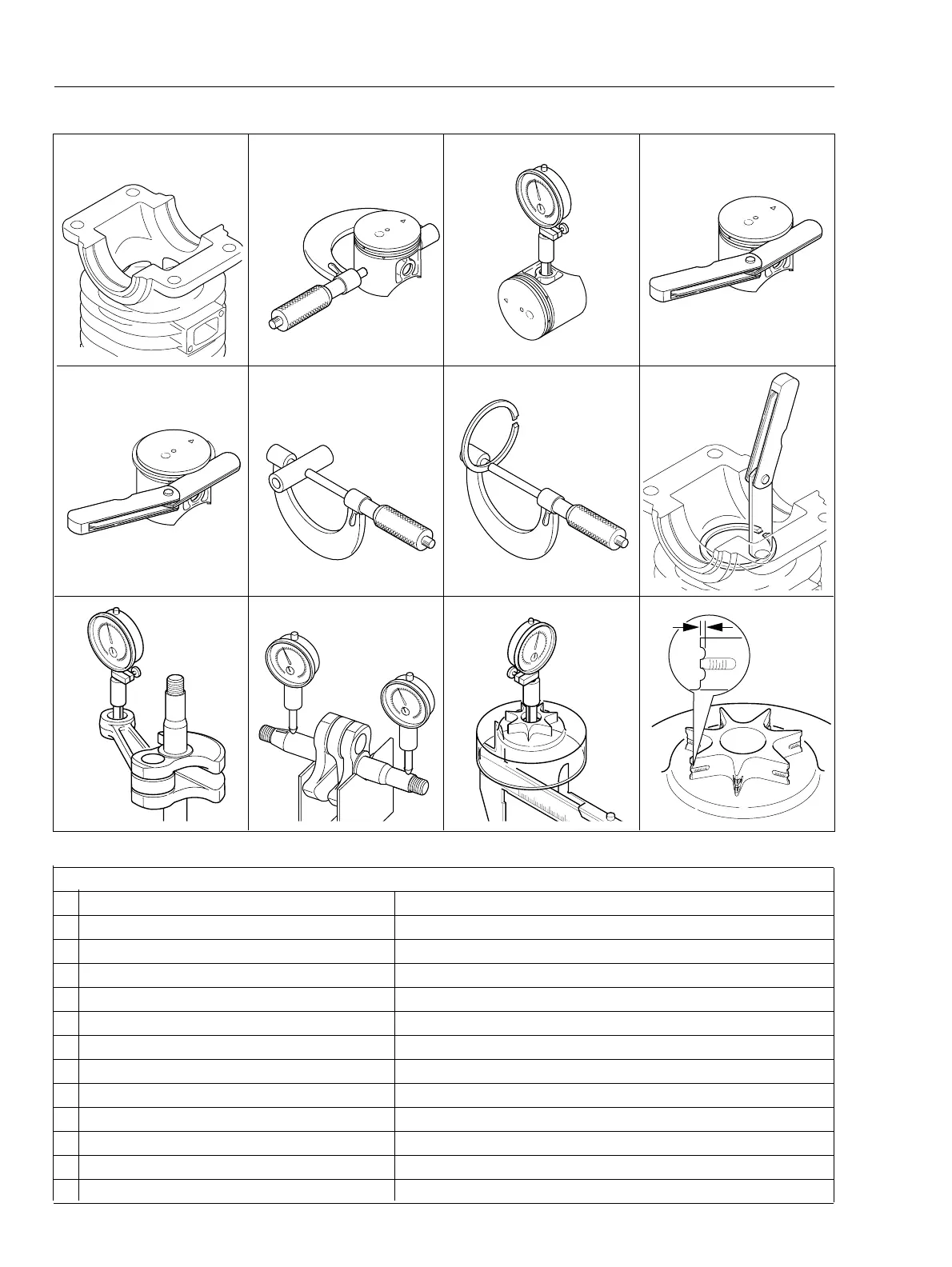

1-5 Service Limits (CS-4400)
mm (in)
A Cylinder bore When plating is worn and aluminium can be seen
B Piston outer diameter Min. 42.87 (1.688)
C Piston pin bore Max. 9.025 (0.3553)
D Piston ring groove Max. 1.3 (0.051)
E Piston ring side clearance Max. 0.1 (0.004)
F Piston pin outer diameter Min. 8.980 (0.3535)
G Piston ring width Min. 1.15 (0.045)
H Piston ring end gap Max. 0.5 (0.02)
K Con-rod small end bore Max. 12.125 (0.4774)
L Crankshaft runout Max. 0.05 (0.002)
M Sprocket bore Max. 13.07 (0.5146)
N Clutch drum bore Max. 71.5 (2.81)
P Sprocket wear limit Max. 0.5 (0.02)
ABCD
FGH
KLMP
N
E
