Echo CS-590 User Manual

OPERATION CS-590
44 X7503264706
© 09/2020 ECHO Incorporated

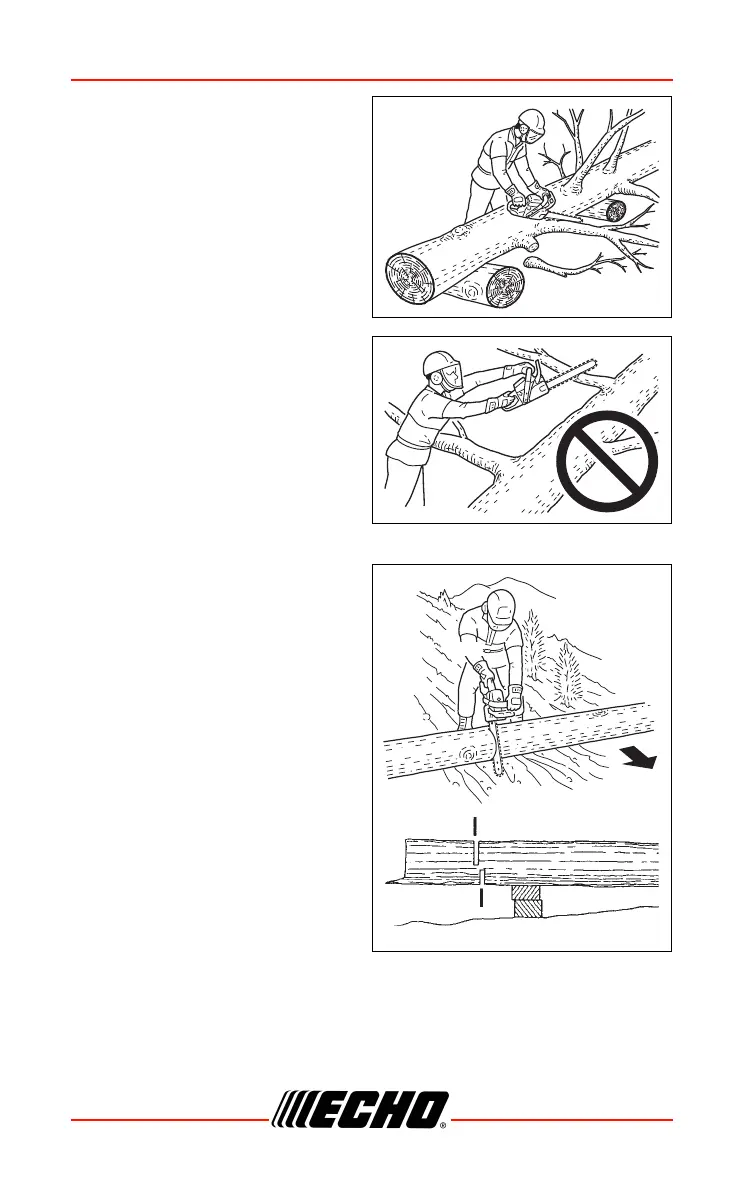

Limbing
Limbing a fallen tree is much the
same as bucking. Never stand on
the tree that you are limbing. When
limbing, caution is the word. Be
careful of the tip touching other
limbs. Always use both hands.
Don’t cut with the saw overhead or
aligned vertically with your body. If
the saw should kickback, you may
not have enough control to prevent
possible injury.
Bucking
Bucking is the sawing of a log or
fallen tree into smaller pieces. There
are a few basic rules which apply to
all bucking operations.
• Keep both hands on the handles
at all times.
• Support logs if possible.
• When cutting on a slope or
hillside, always stand uphill.
Support
Finish cut
Uphill Position
First cut

Echo CS-590 Specifications

General

Engine Displacement	59.8 cc
Engine Type	2-stroke
Bar Length	20 inches
Power Output	4.0 HP
Weight	13.2 lbs
Chain Gauge	0.050 inches
Fuel Capacity	21.8 fl. oz (647 ml)
