CS-590 MAINTENANCE
X7503264706 53
© 09/2020 ECHO Incorporated

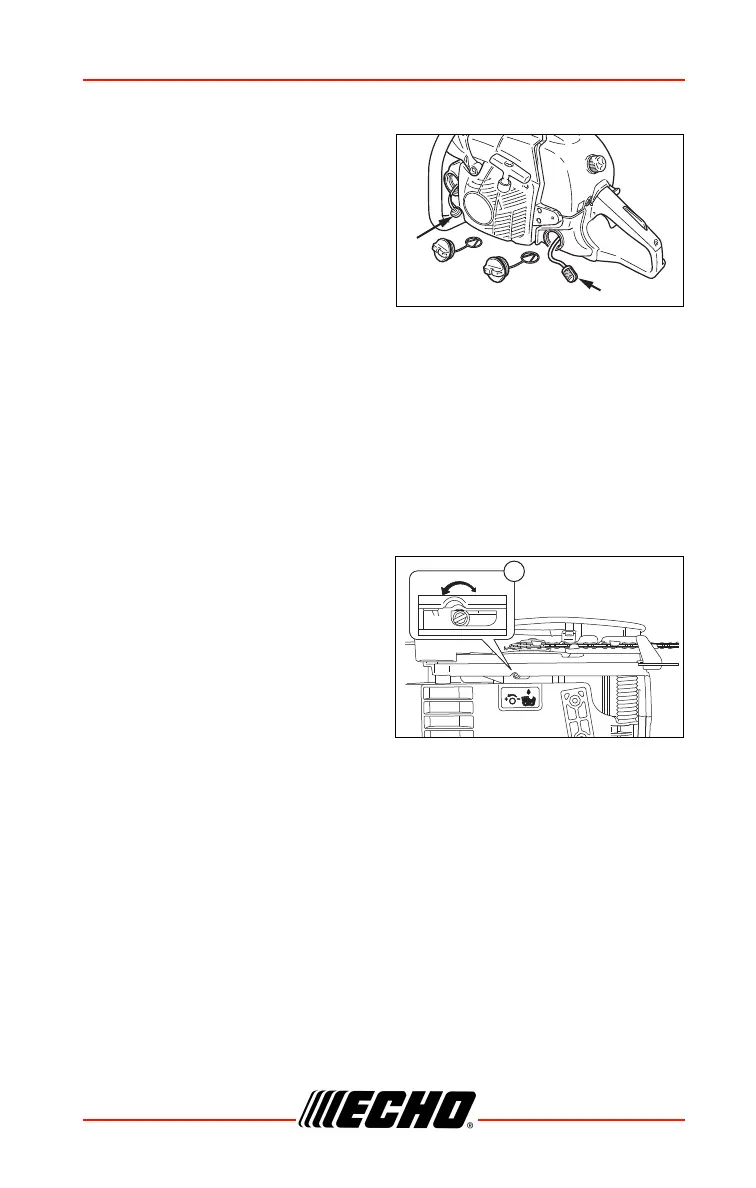

Oil Filter
• Check periodically.
• Do not allow dust to enter into oil
tank.
• A clogged oil filter (B) will affect the
normal lubricating system.
1. Pull filter out through oil port, and
inspect filter.
2. If the filter is dirty, wash it in gasoline or replace it as follows:
3. Do not remove the wire coil clamp to remove the filter. Pinch the filter
with the fingers on one hand and the line with the other hand. Pull and
twist slightly to separate.
4. Install the new filter with the reverse action.
5. When the inside of the tank gets dirty, rinse the tank out with gasoline to
clean it.
Automatic Oiler
• The discharge volume of the
automatic oiler is adjusted to
approximately 4 mL/min at 7000 r/
min, prior to shipment from factory.
• Always check oil discharge when in
use.
• Turn adjusting screw (A)
counterclockwise to increase oil
volume, clockwise to decrease oil
volume. When the screws touches the stopper and stops, this position
indicates maximum discharge volume.
• Do not turn the adjusting screw beyond the maximum or minimum limit of
volume adjustment.
