Setting The Saw Chain
Important points for proper maintenance of saw chain:
• Keep the cutters sharp at all times.
• Keep the left and the right cutters properly aligned.
• Note that blunt or irregular cutters will result in poor cutting performance,
increased vibration of chains and premature breakage of the saw chain.
• Drive link serves to remove
sawdust from the groove of the
guide bar. Keep the lower edge of
the drive link sharp where
indicated.
Setting Saw Chain
• For setting saw chain, round file
(4.0 mm [5/32 in.] diam.) and flat
file are used.
• Push file as shown.

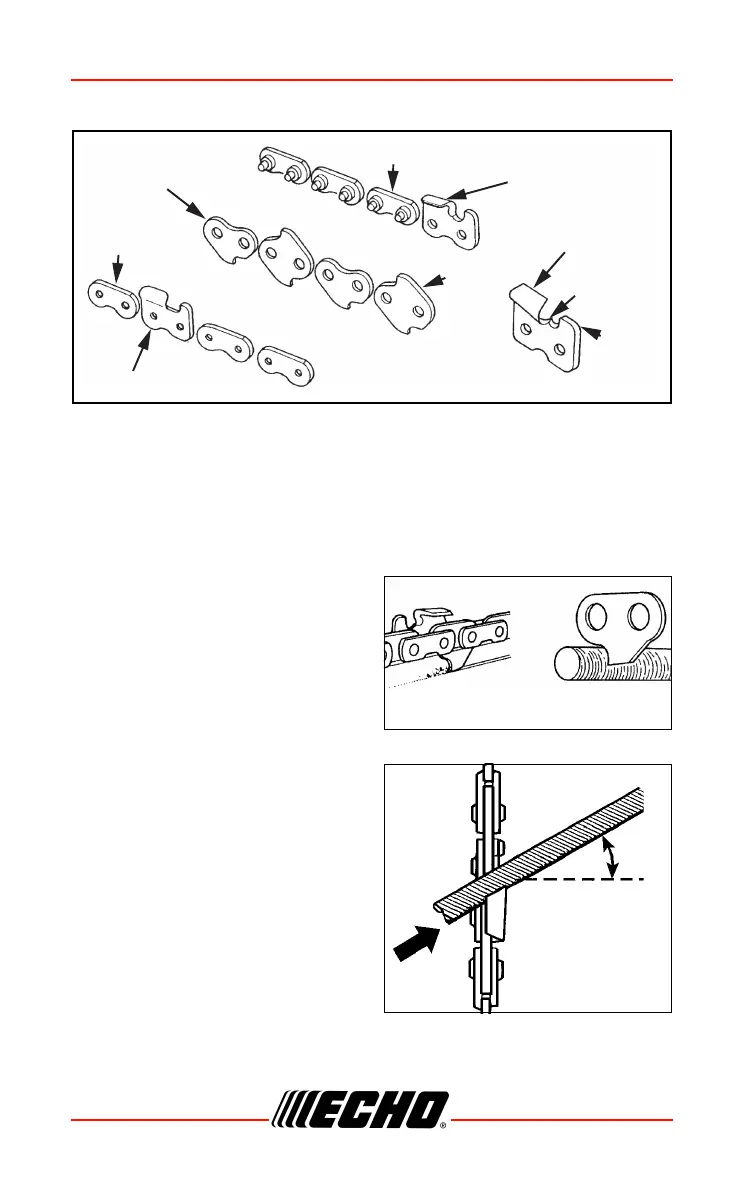

Tie Strap
Right Hand Cutter
Drive Link
Preset Tie Strap
Left Hand Cutter
Top
Plate
Side
Plate
Depth
Gage
Guard
Link
Sharpen lower edge
30°
Keep this angle

Echo CS-590 Specifications

General

Engine Displacement	59.8 cc
Engine Type	2-stroke
Bar Length	20 inches
Power Output	4.0 HP
Weight	13.2 lbs
Chain Gauge	0.050 inches
Fuel Capacity	21.8 fl. oz (647 ml)
