CS-6701(CE)

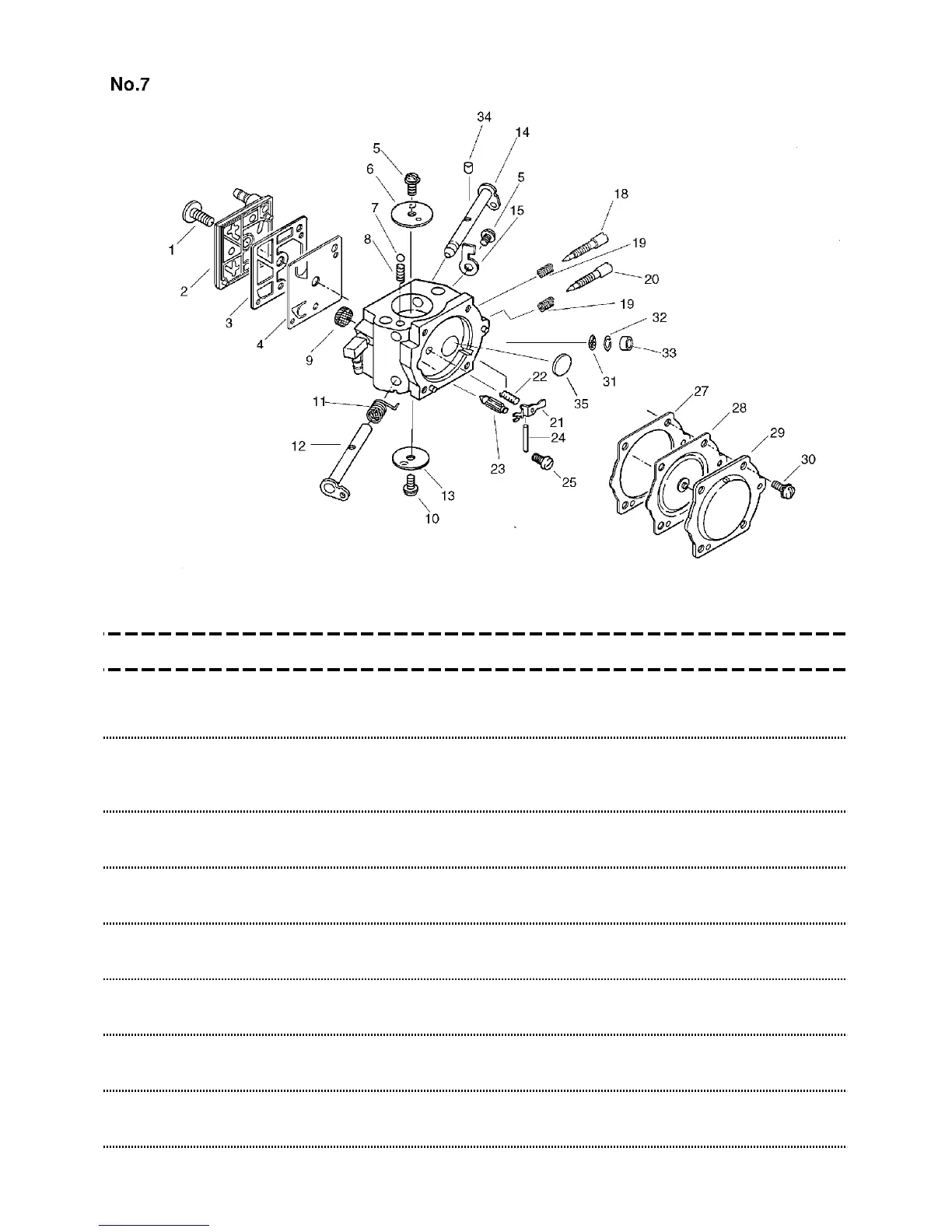

7. Carburetor
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
123000-32432 1 CARBURETOR HDA-76 HDA-76
1 + 123110-16130 1
SCREW, PUMP COVER
2 + 123124-19830 1
COVER, FUEL PUMP
3 + 123125-12330 1
GASKET, FUEL PUMP
4 + 123112-12330 1
DIAPHRAGM, FUEL PUMP
5 + 123114-03930 2
SCREW
Sus. by 123114-
38830
5 + 123114-38830 2
SCREW
6 + 123132-32430 1
VALVE, CHOKE
7 + 123136-10630 1
BALL, CHOKE FRICTION
8 + 123135-10630 1
SPRING, CHOKE FRICT.
9 + 123126-10631 1
SCREEN, INLET
10 + 123154-10630 1
SCREW
11 + 123113-16130 1
SPRING, THRT. RETURN
12 + 123117-32630 1
SHAFT, THROTTLE
13 + 123132-16130 1
VALVE, CHOKE
14 + 123131-19830 1
SHAFT, CHOKE
15 + 123156-12330 1
STOP, THROTTLE
18 + 123120-32430 1
NEEDLE, HIGH SPEED
19 + 123121-16130 2
SPRING, NEEDLE
20 + 123118-18330 1
NEEDLE, IDLE
21 + 123123-18330 1
LEVER, METERING
22 + 123122-16130 1
SPRING, METER. LEVER
23 + 123137-19830 1
VALVE, INLET NEEDLE
24 + 123138-03930 1
PIN, METERING LEVER
25 + 123139-03930 1
SCREW, M. LEVER PIN
- 15 -
