Echo CS-6701(CE) User Manual

CS-6701(CE)

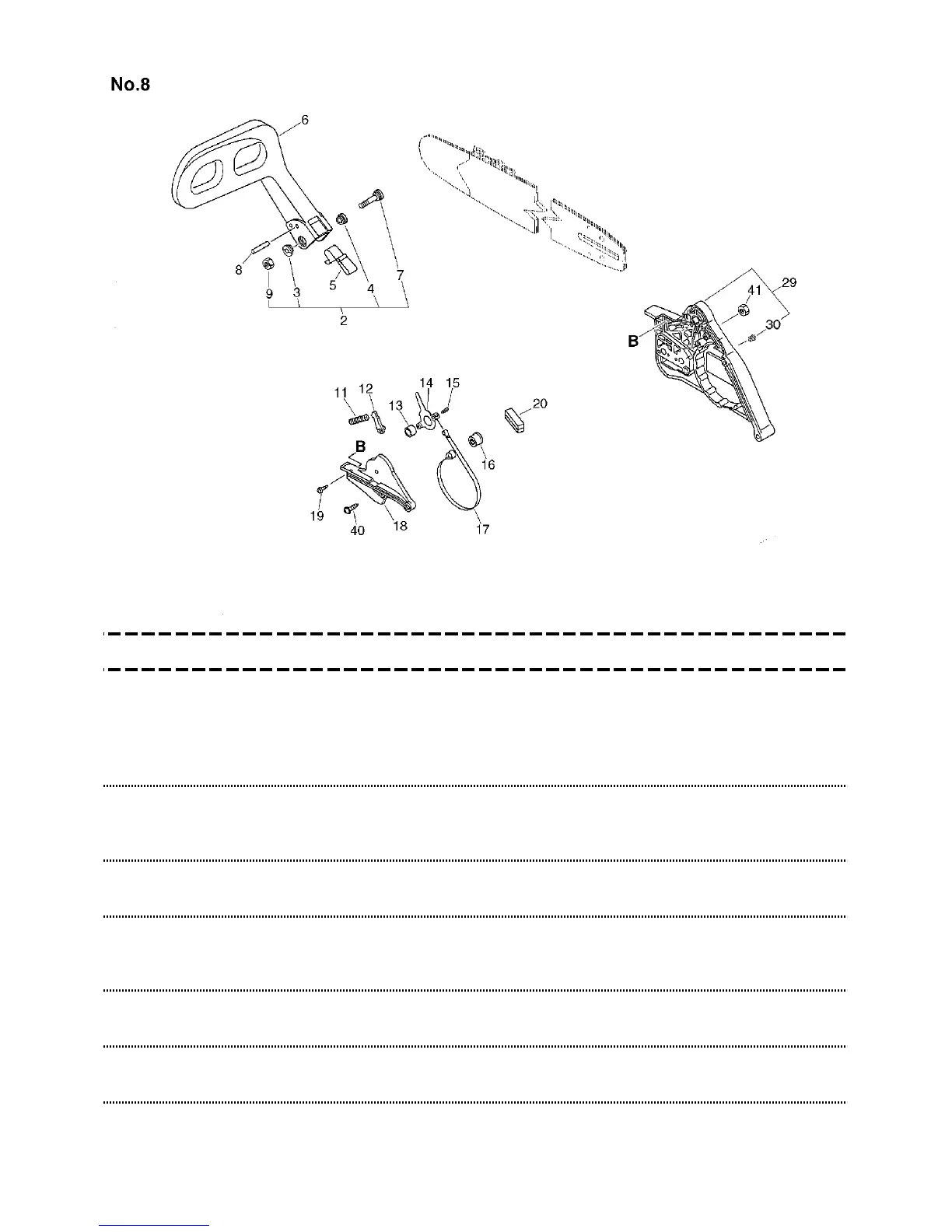

8. Chain Brake Asy
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
433200-38131 1 BRAKE ASY, CHAIN
Sus. by 433200-
38138
433200-38132 1
BRAKE ASY, CHAIN
Sus. by 433200-
38138
433200-38133 1
BRAKE ASY, CHAIN
Sus. by 433200-
38138
433200-38134 1
BRAKE ASY, CHAIN
Sus. by 433200-
38138
433200-38138 1
BRAKE ASY, CHAIN
2 + 433113-37538 1
SCREW KIT
3 ++ 433167-39130 1
SPACER
4 ++ 433167-39730 1
COLLAR 5
7 ++ 900209-05035 1
SCREW
5*35
9 ++ 900560-00005 1
NUT, LOCK 5
5
5 + 433114-38131 1
SPRING
6 + 433105-38130 1
LEVER, BRAKE
Sus. by 433105-
38131
6 + 433105-38131 1
LEVER, BRAKE
8 + 900330-35260 1
PIN 3.5*26
3.5*26
11 + 433122-38130 1
SPRING, BRAKE
12 + 433209-35430 1
STOPPER, BRAKE
13 + 433116-35430 1
SPACER 8
8*12*9
14 + 433208-35431 1
LEVER, BRAKE
15 + 900330-40088 1
ROLLER 4*8.8
4*8.8
16 + 433142-35430 1
ADJUSTER, BRAKE
- 17 -
